Door Lock Control Switch: Removal

WARNING: This page is about a different car, the 2015 Ford C-Max. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

1.

Refer to: Health and Safety Precautions .

2.

Remove the front door trim panel. Refer to: Front Door Trim Panel .

3.

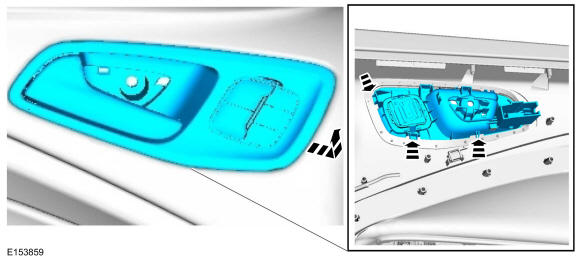

Remove the interior front door handle.

Courtesy of FORD MOTOR COMPANY

NOTE: This step is only necessary when installing a new component.

4.

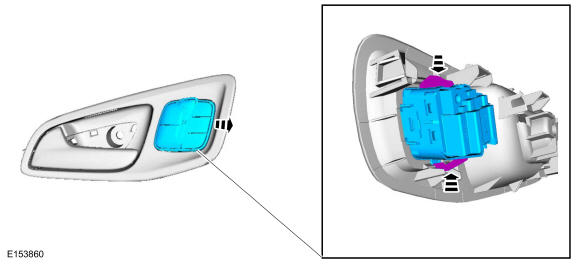

Remove the door lock control switch.

Courtesy of FORD MOTOR COMPANY
