Removal And Installation: Radiator: Installation

WARNING: This page is about a different car, the 2015 Ford C-Max. However, it is still accessible from the selected car via links, so may be relevant.

1.

To install, reverse the removal procedure.

2.

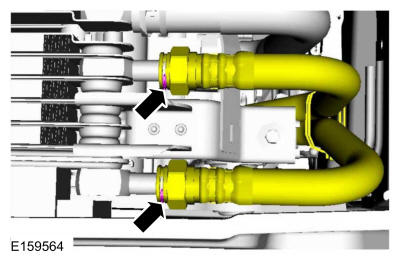

NOTE: To ensure the transmission fluid cooler tubes are secure, push, pull then push the transmission cooler tubes on the transmission fluid cooler.

GFD15147

Courtesy of FORD MOTOR COMPANY

3.

Check and top off the transmission fluid.
Material

: Motorcraft® MERCON® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.) (MERCON® LV) (WSS-M2C938-A)
