Repair procedures: Replacement
WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the air cleaner assembly.
(Refer to "AIR CLEANER ")

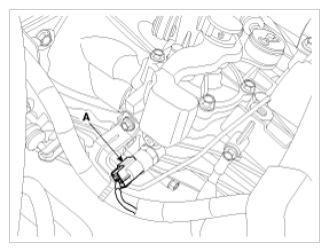

- Disconnect the neutral position switch connector (A).

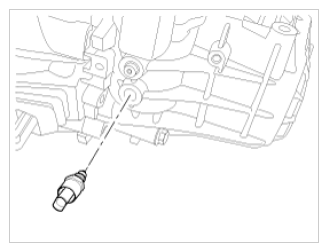

- Remove the neutral position switch.
- Replace a new one and install the neutral position switch, then connect the connector.
Tightening torque:
39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)
