Repair procedures: Inspection

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Stop the engine and uplift the vehicle with lift.
Remove the under cover (A).

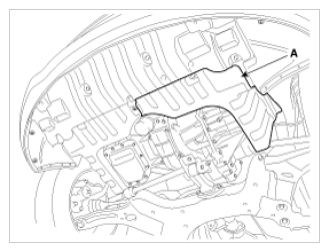

Fig 1: Identifying Vehicle Under Cover
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the oil filler plug (A).

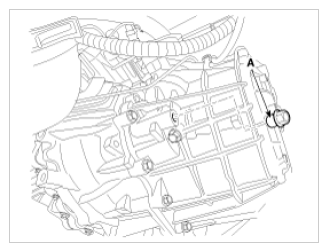

Fig 2: Identifying Oil Filler Plug
Courtesy of HYUNDAI MOTOR AMERICA
Check the oil level.
NOTE: Oil level must be up to fill the hole, if not, add oil until it runs over.

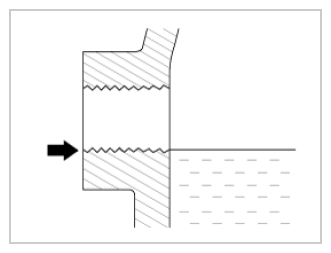

Fig 3: Locating Oil Level
Courtesy of HYUNDAI MOTOR AMERICA
Install the filler plug.
Tightening torque:

58.9 ~ 78.5 N.m (6.0 ~ 8.0 kgf.m, 43.4 ~ 57.8 lb-ft)
