Window Control Switches

WARNING: This page is about a different car, the 2015 Ford C-Max. However, it is still accessible from the selected car via links, so may be relevant.

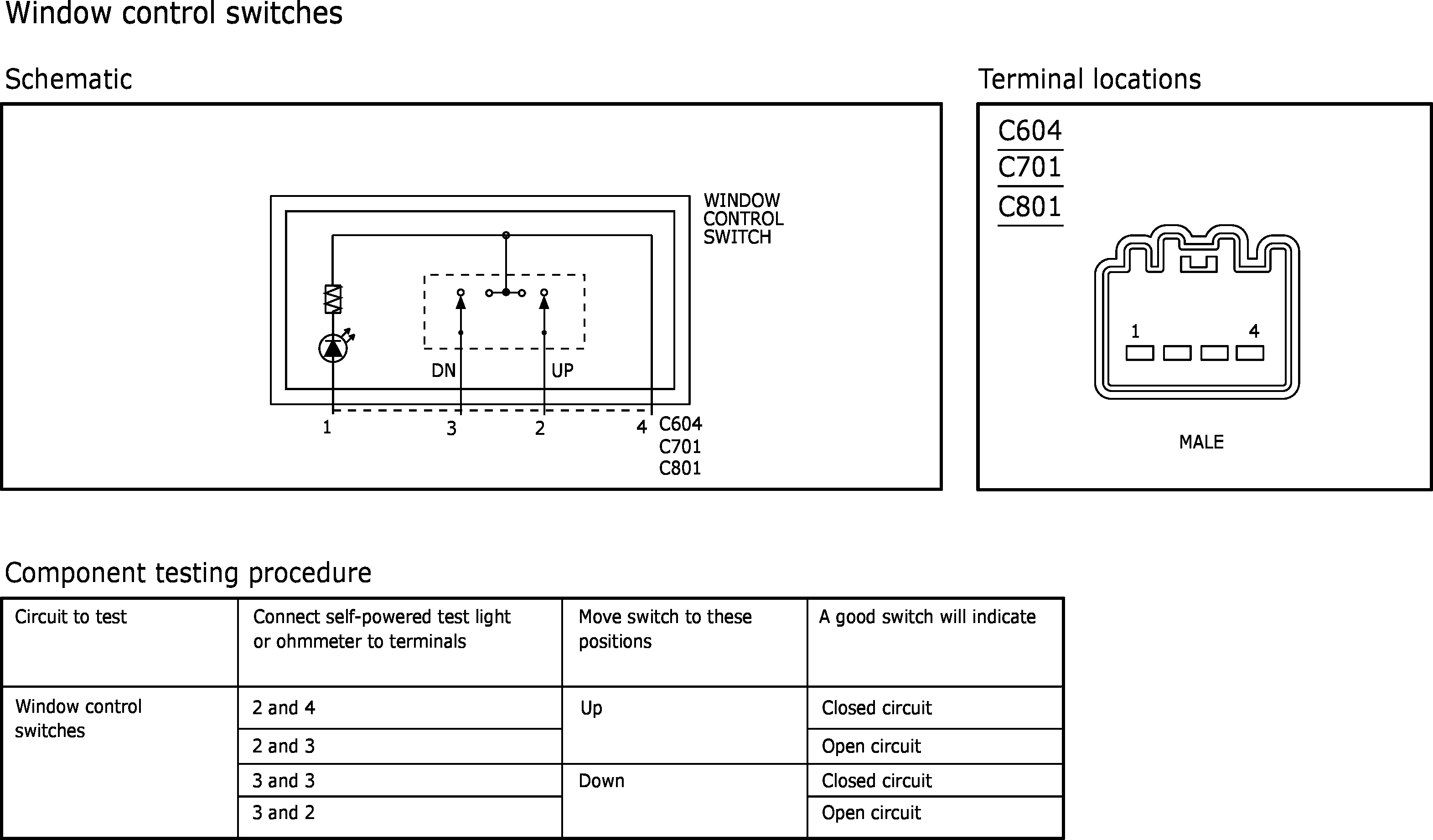

Fig 1: Window Control Switches
GFDW4627Courtesy of FORD MOTOR CO.
