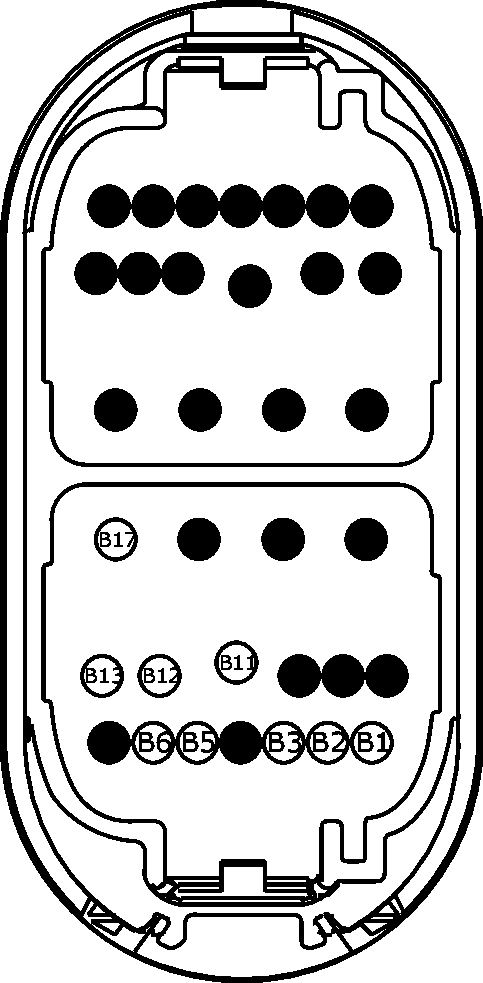

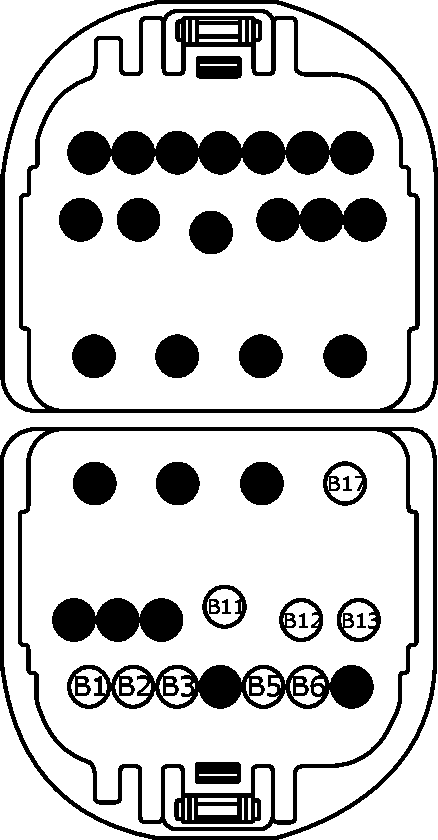

Connector End View (C314) - INLINE
WARNING: This page is about a different car, the 2015 Ford C-Max. However, it is still accessible from the selected car via links, so may be relevant.
Inline: C314
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available
MALE
Harness 14240
FEMALE
Harness 14014
|
Pin |
Circuit |
Gauge |
Qualifier |
|
A1 |
* |
* |
|
|
A2 |
* |
* |
|
|
A3 |
* |
* |
|
|
A4 |
* |
* |
|
|
A5 |
* |
* |
|
|
A6 |
* |
* |
|
|
A7 |
* |
* |
|
|
A8 |
* |
* |
|
|
A9 |
* |
* |
|
|
A10 |
* |
* |
|
|
A11 |
* |
* |
|
|
A12 |
* |
* |
|
|
A13 |
* |
* |
|
|
A14 |
* |
* |
|
|
A15 |
* |
* |
|
|
A16 |
* |
* |
|
|
A17 |
* |
* |
|
|
B1 |
CPL39 (YE) |
22 |
|
|
B2 |
CPK26 (BN-YE) |
22 |
|
|
B3 |
CPK18 (BN-BU) |
20 |
14240 |
|
B3 |
CPK18 (BN-BU) |
20 |
14014 |
|
B4 |
* |
* |
|
|
B5 |
GD152 (BK-BU) |
20 |
14014 |
|
B5 |
GD152 (BK-WH) |
22 |
14240 |
|
B6 |
VPW33 (VT-BN) |
22 |
|
|
B7 |
* |
* |
|
|
B8 |
* |
* |
|
|
B9 |
* |
* |
|
|
B10 |
* |
* |
|
|
B11 |
GD140 (BK-GN) |
12 |
|
|
B12 |
RME12 (BN-BU) |
14 |
|
|
B13 |
VME12 (BN-WH) |
14 |
|
|
B14 |
* |
* |
|
|
B15 |
* |
* |
|
|
B16 |
* |
* |
|
|
B17 |
SBR04 (GN-RD) |
12 |
