Repair procedures: Inspection: Removal

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the steering wheel.
(Refer to STEERING WHEEL )
Remove the steering column shroud lower/upper panel.
(Refer to "STEERING COLUMN SHROUD PANEL ")
Remove the clock spring.
(Refer to DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING )
Disconnect the lighting switch connector (A) and wiper & washer switch connector (B).

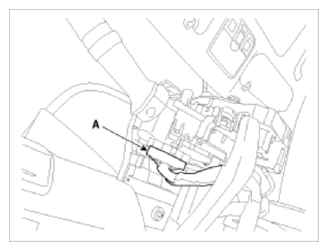

Fig 1: Identifying Lighting Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA

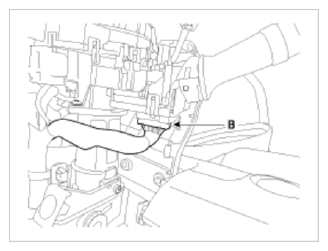

Fig 2: Identifying Wiper And Washer Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA
If it is necessary to remove. The wiper & washer switch (A) only, release the lock of wiper switch using tool without removing the steering wheel and the clock spring.

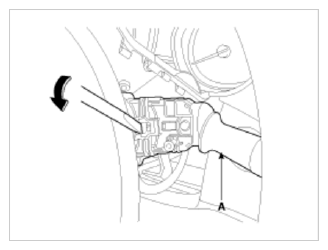

Fig 3: Removing Wiper And Washer Switch
Courtesy of HYUNDAI MOTOR AMERICA
Remove the multifunction switch assembly (A) after loosening 2 screws.

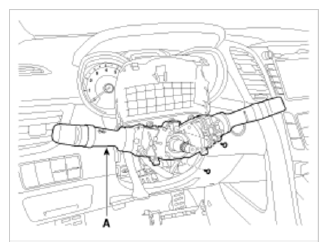

Fig 4: Identifying Multifunction Switch Assembly
Courtesy of HYUNDAI MOTOR AMERICA
