Repair procedures: Inspection

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the crash pad lower panel.
(Refer to "CRASH PAD LOWER PANEL ")

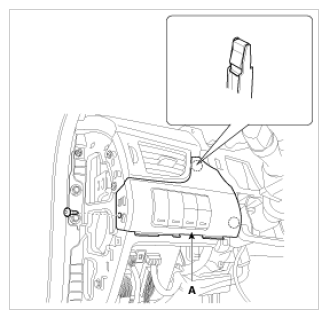

Remove the crash pad side switch assembly (A).

Fig 1: Identifying Crash Pad Side Switch Assembly
Courtesy of HYUNDAI MOTOR AMERICA

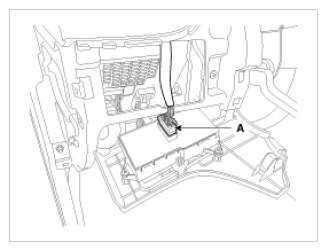

Disconnect the crash pad lower switch connector (A).

Fig 2: Identifying Crash Pad Lower Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA

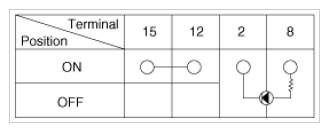

Check the continuity between the switch terminals as the ESC OFF switch is engaged.

Fig 3: Checking Continuity Between Switch Terminals
Courtesy of HYUNDAI MOTOR AMERICA
