Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Put on gloves to protect your hands.
NOTE:
  • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
  1. Remove the front seat assembly.

    (Refer to "FRONT SEAT ASSEMBLY ")

  2. Remove the rear seat assembly.

    (Refer to "REAR SEAT ASSEMBLY ")

  3. Remove the front door scuff trim.

    (Refer to "DOOR SCUFF TRIM ")

  4. Remove the rear door scuff trim.

    (Refer to "DOOR SCUFF TRIM ")

  5. Remove the front pillar trim.

    (Refer to "FRONT PILLAR TRIM ")

  6. Remove the canter pillar lower trim.

    (Refer to "CENTER PILLAR TRIM ")

  7. Remove the canter pillar upper trim.

    (Refer to "CENTER PILLAR TRIM ")

  8. Remove the luggage side trim.

    (Refer to "LUGGAGE SIDE TRIM ")

  9. Remove the rear pillar trim.

    (Refer to "REAR PILLAR TRIM ")

  10. Remove the sunvisor and retainer.

    (Refer to Roof Trim - "SUNVISOR ")

  11. Remove the assist handle.

    (Refer to Roof Trim - "ASSIST HANDLE ")

  12. Remove the overhead console lamp.

    (Refer to "OVERHEAD CONSOLE LAMP ")

  13. Remove the room lamp. [General type]

    (Refer to "ROOM LAMP ")

  14. Remove the ECM mirror cover (B).
  15. Disconnect the ECM mirror connector (A).

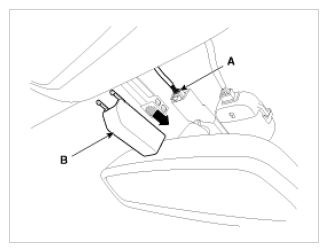

    Fig 1: Disconnecting ECM Mirror Connector
    G09887082Courtesy of HYUNDAI MOTOR AMERICA
  16. Remove the auto defog sensor cover (B).
  17. Disconnect the auto defog sensor connector (A).

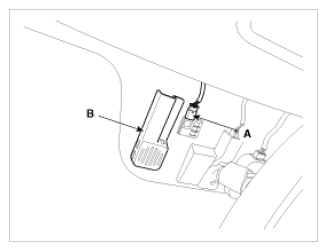

    Fig 2: Identifying Auto Defogger Sensor Connector And Cover
    G09887083Courtesy of HYUNDAI MOTOR AMERICA
  18. Remove the rain sensor cover (B).
  19. Disconnect the rain sensor connector (A).

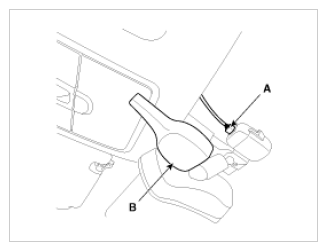

    Fig 3: Identifying Rain Sensor Connector And Cover
    G09887084Courtesy of HYUNDAI MOTOR AMERICA
  20. Disconnect the roof trim main connector (A).

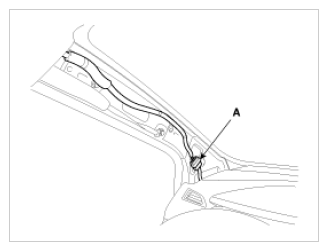

    Fig 4: Identifying Roof Trim Main Connector
    G09887085Courtesy of HYUNDAI MOTOR AMERICA
  21. Disconnect the hands free Mic connector (A).

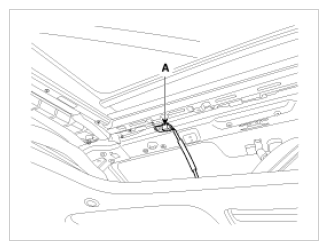

    Fig 5: Identifying Hands Free Mic Connector
    G09887086Courtesy of HYUNDAI MOTOR AMERICA
  22. Detach the clips, then remove the roof trim assembly (A).

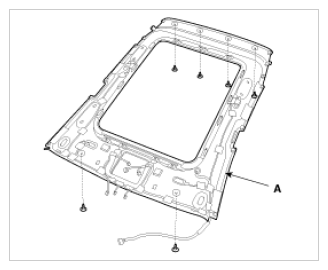

    Fig 6: Identifying Roof Trim Assembly And Clips
    G09887087Courtesy of HYUNDAI MOTOR AMERICA
  23. Remove the room lamp. [Panorama Sunroof type]

    (Refer to "ROOM LAMP ")

  24. Remove the vanity lamp.

    (Refer to "ROOM LAMP ")

  25. Remove the hands free Mic.

    (Refer to "HANDS FREE MIC ")

  26. Remove roof trim wiring harness (A) from the roof trim (B).
    NOTE:
    • Take care not to damage the roof trim wiring harness (A) when removing.

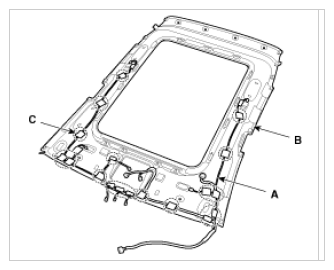

    Fig 7: Identifying Roof Trim Wiring Harness
    G09887088Courtesy of HYUNDAI MOTOR AMERICA

    Information

    1. Apply the hot melt continuously when installing the roof trim wiring harness (A) on the roof trim (B) using the hot melt gun tool.
    2. Put anti-noise pad (C) on roof trim (B) to prevent the noise.
  27. Install in the reverse order of removal.

    Information

    • Make sure the connector is plugged in properly.
    • Replace any damaged clips.
