Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door module.
(Refer to Front Door - "FRONT DOOR MODULE ")
Remove the front door inside handle.
(Refer to Front Door - "FRONT DOOR INSIDE HANDLE ")

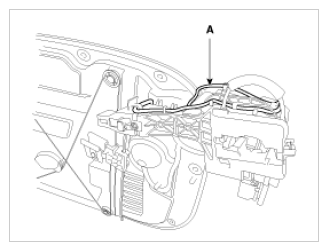

Disconnect the front door latch wiring harness (A).

Fig 1: Identifying Front Door Latch Wiring Harness
Courtesy of HYUNDAI MOTOR AMERICA

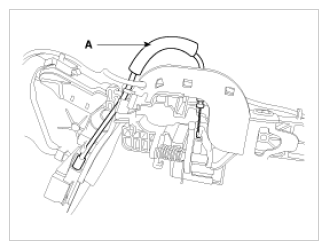

Disconnect the front door outside handle cable (A).

Fig 2: Identifying Front Door Outside Handle Cable
Courtesy of HYUNDAI MOTOR AMERICA

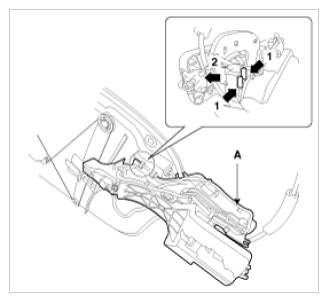

Remove the front door outside handle base (A) by pushing in the lock pins located in the back.

Fig 3: Pushing Lock Pins
Courtesy of HYUNDAI MOTOR AMERICA

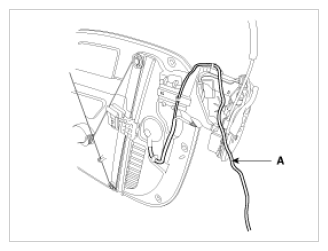

Disconnect the front door latch wiring harness (A).

Fig 4: Identifying Front Door Latch Wiring Harness
Courtesy of HYUNDAI MOTOR AMERICA

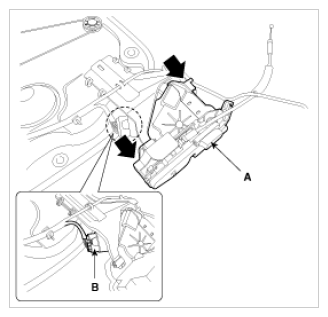

Disconnect the front door latch connector (B).
Remove the front door latch assembly (A).

Fig 5: Removing Front Door Latch Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips.
