Components and Components Location: Components

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

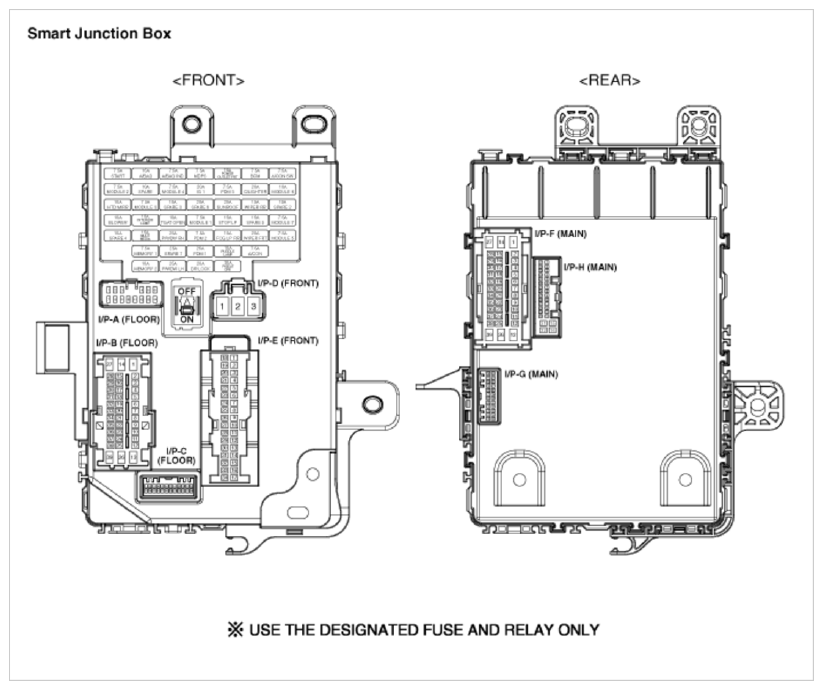

Fig 1: Relay Box Components And Fuses (Passenger Compartment)

Courtesy of HYUNDAI MOTOR AMERICA

PASSENGER COMPARTMENT RELAY BOX FUSE IDENTIFICATION LEGEND

Fuse Name	(A)	Circuit Protected
START	7.5A	W/O Smart Key : ICM Relay Box (Burglar Alarm Relay) With Smart Key : A/T - Transaxle Range Switch M/T - ECM, Smart Key Control Module
A/BAG	15A	SRS Control Module, Passenger Weight Classification Sensor, A/C Control Module
A/BAG IND	7.5A	Instrument Cluster
MDPS	7.5A	MDPS Unit
POWER OUTLET FRT	15A	Front Power Outlet
BCM	7.5A	Smart Key Control Module, BCM
A/CON SW	7.5A	A/C Control Module
MODULE 2	7.5A	Electric Parking Brake Module, Rear View Camera
SPARE	10A	-
MODULE 4	7.5A	A/C Control Module
IG 1	20A	E/R fuse & Relay Box (Fuse - TCU 1, B/UP LAMP, ECU 3, ABS 3, ECU 6)
PDM 3	7.5A	W/O Smart Key : Immobilizer Module With smart Key : Smart Key Control Module
C/LIGHTER	20A	Cigarette Lighter, Rear Power Outlet
MODULE 6	10A	Power Outside Mirror Switch, Audio, A/V & Navigation Head Unit, MTS Module, Console Switch
HTD MIRR	10A	Driver/Passenger Power Outside Mirror, A/C Control Module
MODULE 3	7.5A	Audio, Console Switch, MTS Module, Tire Pressure Monitoring Module, Driver/Passenger Seat Warmer Module, Instrument Cluster, BCM
SPARE 3	10A	-
SPARE 6	20A	-
SUNROOF	20A	SUNROOF
WIPER RR	15A	Multifunction Switch, ICM Relay Box (Rear Wiper Relay), Rear Wiper Motor
SPARE 2	15A	-
BLOWER	10A	A/C Control Module, Blower Resistor
INTERIOR LAMP	10A	Luggage Room, Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp, Door Warning Switch (W/E Smart Key), Room Lamp LH/RH
TGAT OPEN	10A	Tail Gate Relay, Rear View Camera, Tail Gate Latch
MODULE 1	7.5A	Sport Mode Switch, Key Solenoid
STOP LP	15A	Stop Lamp relay
SPARE 5	15A	-
MODULE 7	7.5A	Smart Key Control Module, BCM
SPARE 4	10A	-
MULTIMEDIA	15A	Audio, MTS Module, A/V & Navigation Head Unit
P/WDW RH	25A	Power Window RH Relay
PDM 2	7.5A	Smart Key Control Module, Start/Stop Button Switch
FOG LP RR	10A	-
WIPER FRT	25A	Multifunction Switch, Wiper Motor, E/R Fuse & Relay Box (Wiper Relay)
MODULE 5	7.5A	E/R Fuse & Relay Box (PTC Relay), Sunroof, Cluster Ionizer, Electro Chromic Mirror
MEMORY 1	7.5A	Immobilizer Module
SPARE 7	25A	-
PUDDLE LAMP	10A	Not Used
A/CON	7.5A	E/R Fuse & Relay Box (Blower Relay), A/C Control Module
MEMORY 2	10A	BCM, Auto Light & Photo Sensor, Data Link Connector, Tire Pressure Monitoring Module, Instrument Cluster, Electro Chromoc Mirror, A/C Control Module
P/WDW LH	25A	Power Window LH Relay
DR LOCK	10A	Door Lock/Unlock Relay, ICM relay Box (Two turn Unlick Relay)
P/SEAT DRV	30A	Driver Manual Switch
* USE THE DESIGNATED FUSE AND RELAY ONLY
