Fuse Inspection
WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
- Be sure there is no play in the fuse holders, and that the fuses are held securely.
- Are the fuse capacities for each circuit correct?
- Are there any blown fuses?
If a fuse is to be replaced, be sure to use a new fuse of the same capacity. Always determine why the fuse blew first and completely eliminate the problem before installing a new fuse.
Multi Fuse
Multi Fuse is for optimizing the engine room package.

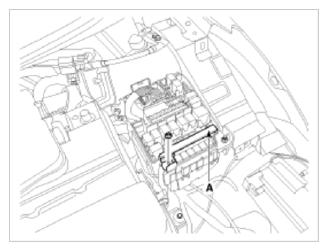

NOTE:- Multi fuse (A) is needed to replace entirely when there is damage to only one fuse.
- When replace the multi fuse, refer to the " COMPONENT LOCATION " diagram exactly.
- Use the multi fuse capacities for each circuit correctly.
