Components and Components Location: Components
WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

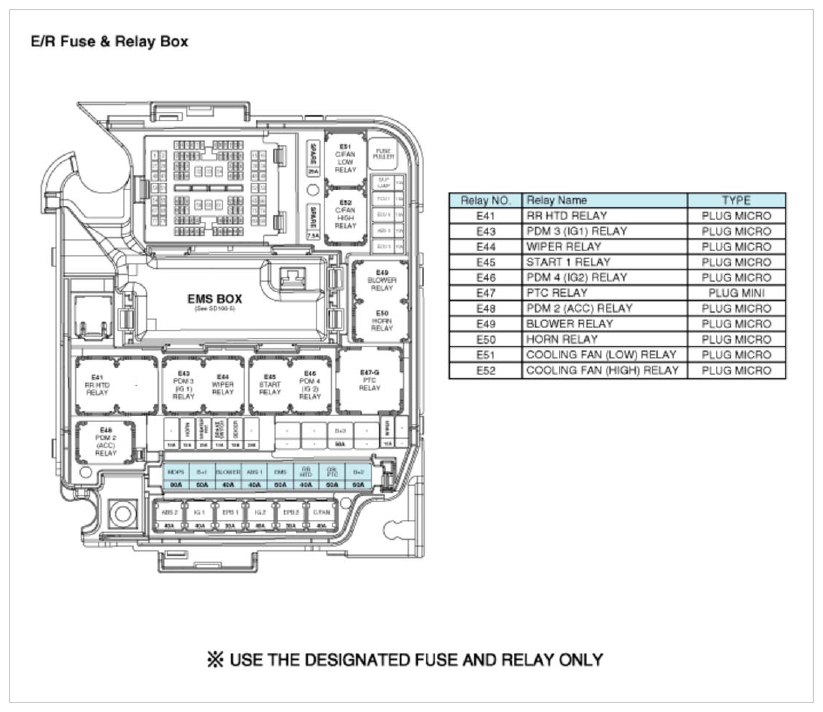

ENGINE ROOM FUSE AND RELAY BOX FUSE IDENTIFICATION LEGEND
| Fuse Name | (A) | Circuit Protected | ||||||
|---|---|---|---|---|---|---|---|---|
| MULTI FUSE | MDPS | 80A | MDPS Unit | |||||
| B+1 | 60A | Smart Junction Box (IPS 7, Fuse - P/WDW LH/RH, TGAT OPEN) | ||||||
| BLOWER | 40A | Blower Relay | ||||||
| ABS 1 | 40A | ESC Module, Multipurpose Check Connector | ||||||
| EMS | 60A | EMS Box (Fuse ECU 4, F/PUMP, A/CON) | ||||||
| RR HTD | 40A | RR HTD Relay | ||||||
| GSL PTC | 60A | PTC Relay | ||||||
| B+2 | 60A | Smart Junction Box (T/SIG Sound, IPS 4, IPS 8, Fuse - P/SEAT DRV, PUDDLE LAMP, STOP LP, SUNROOF) | ||||||
| FUSE | ABS 2 | 40A | ESC Module, Multipurpose Check Connector | |||||
| IG 1 | 40A | With Smart Key : PDM2 (ACC) Relay, PDM3 (IG1) Relay W/O Smart Key : Ignition Switch |
||||||
| EPB 1 | 30A | Electric Parking Brake Module | ||||||
| IG 2 | 40A | With Smart Key : PDM 4 (IG 2) Relay, Start Relay W/O Smart Key : Ignition Switch |
||||||
| EPB 2 | 30A | Electric Parking Brake Module | ||||||
| C/FAN | 40A | Cooling Fan (High/Low) Relay | ||||||
| HORN | 15A | Horn Relay, ICM Relay Box (B/Alarm Horn Relay) | ||||||
| S/HEATER FRT | 20A | Driver/Passenger Warmer Module | ||||||
| BRAKE SWITCH | 10A | Stop Lamp Switch, Smart Key Control Module | ||||||
| DEICER | 15A | ICM Relay Box (Deicer Relay) | ||||||
| B+3 | 50A | Smart Junction Box (Leak Current Autocut Device, Fuse - DR LOCK, MODULE 1, PDM 1, PDM 2) | ||||||
| WIPER | 10A | ECM/PCM | ||||||
| B/UP LAMP | 10A | Back-Up Lamp Switch, Electro Chromic Mirror, BCM, Instrument Cluster, A/V & Navigation Head Unit, Rear Combination Lamp (IN) LH/RH, MTS Module, Yaw Rate Sensor | ||||||
| TCU 1 | 15A | Transaxle Range Switch (A/T), Speed Sensor (M/T) | ||||||
| ECU 6 | 15A | Not Used | ||||||
| ABS 3 | 10A | Multipurpose Check Connector, ESC Module, Yaw Rate Sensor | ||||||
| ECU 3 | 10A | ECM/PCM, Stop Lamp Switch | ||||||
| * USE THE DESIGNATED FUSE AND RELAY ONLY | ||||||||

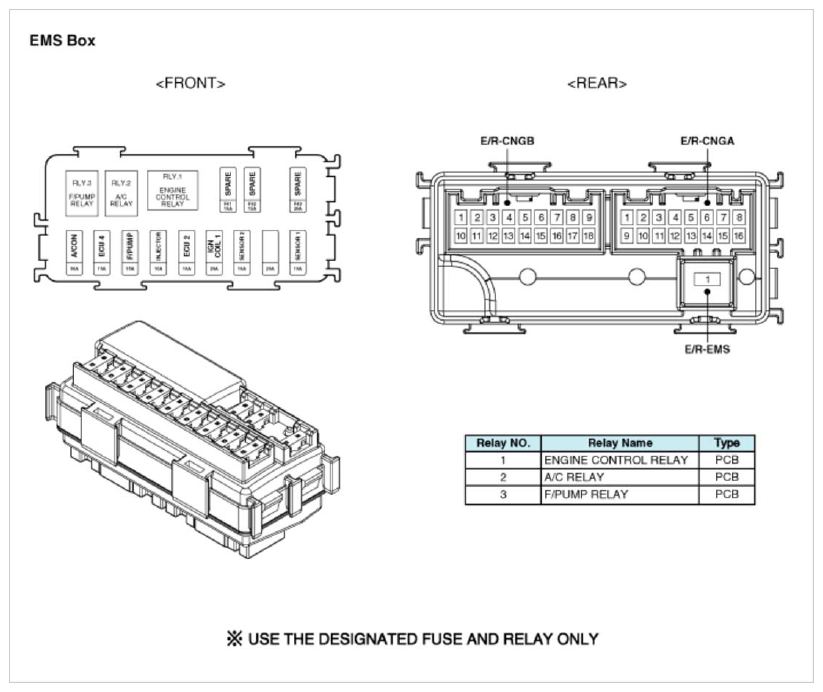

EMS BOX RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Engine Control Relay (PCB) |
| A/C Relay (PCB) |
| Fuel Pump Relay (PCB) |
EMS BOX FUSE IDENTIFICATION LEGEND
| Fuse Name | (A) | Circuit Protected | |||||||
|---|---|---|---|---|---|---|---|---|---|
| A/CON | 30A | A/C Relay | |||||||
| ECU4 | 15A | PCM, ECM | |||||||
| F/PUMP | 15A | Fuel Pump Relay | |||||||
| INJECTOR | 10A | Injector #1/#2/#3/#4, Fuel Pump Relay | |||||||
| ECU2 | 10A | PCM, ECM | |||||||
| IGN COIL 1 | 20A | Igntion Coil #1/#2/#3/#4, Condenser | |||||||
| SENSOR2 | 10A | Camshaft Position Sensor (Intake/Exhaust) | |||||||
| SENSOR1 | 10A | Oxygen Sensor (Up/Down), Variable Intake Solenoid Valve, Purge Control Solenoid Valve, Oil Control Valve #1/#2, EMS Box (A/C Relay), Canister Close Valve | |||||||
| * USE THE DESIGNATED FUSE AND RELAY ONLY | |||||||||
