Component Location
WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

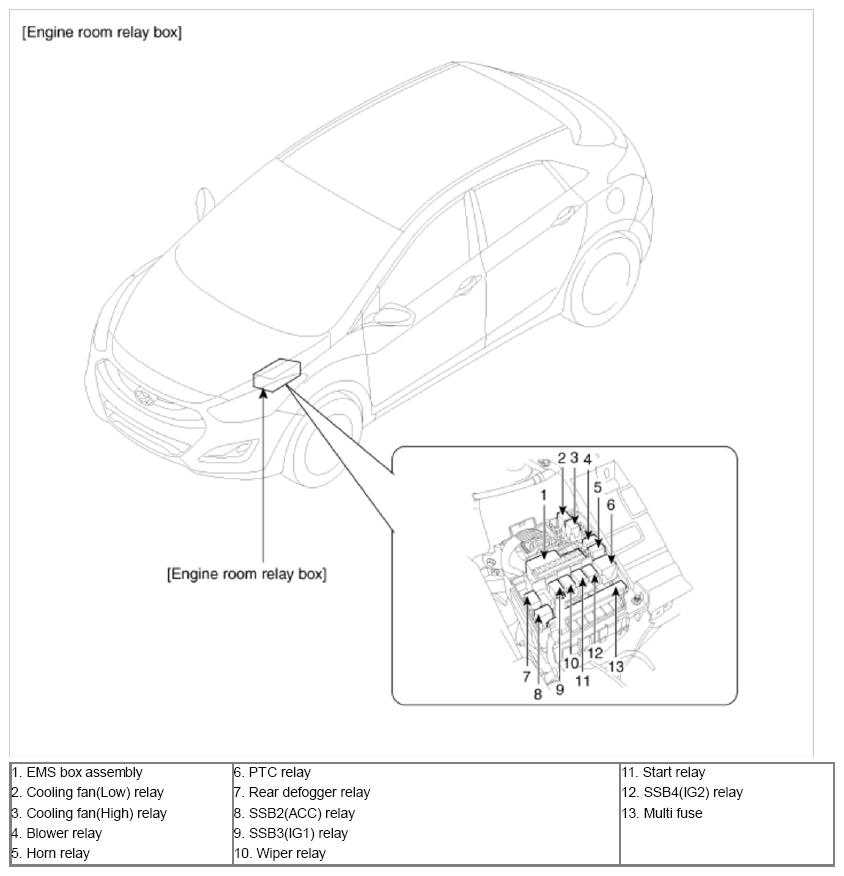

Courtesy of HYUNDAI MOTOR AMERICA ENGINE ROOM RELAY BOX RELAY IDENTIFICATION
| RELAY DESCRIPTION |
| Cooling Fan (Low) Relay |
| Cooling Fan (High) Relay |
| Blower Relay |
| Horn Relay |
| PTC Relay |
| Rear Defogger Relay |
| SSB2 (ACC) Relay |
| SSB3 (IG1) Relay |
| Wiper Relay |
| Start Relay |
| SSB4 (IG2) Relay |
Courtesy of HYUNDAI MOTOR AMERICA
