Repair procedures: Installation

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Pre-tighten the bracket fixing bolt (A) in dash panel.

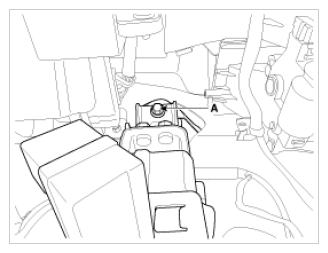

Fig 1: Identifying Bracket Fixing Bolt
Courtesy of HYUNDAI MOTOR AMERICA
Install the brake booster and brake pedal member fixing nuts (A) securely.
Tightening torque:

16.7 ~ 25.5 N.m (1.7 ~ 2.6 kgf.m, 12.3 ~ 18.8 lb-ft)

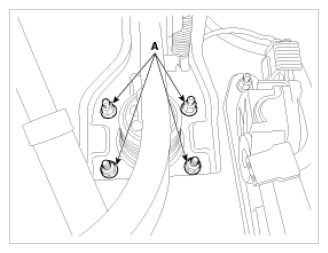

Fig 2: Identifying Brake Pedal Member Fixing Nuts
Courtesy of HYUNDAI MOTOR AMERICA
Tighten the bolt (A) securely in dash panel.
Tightening torque:

16.7 ~ 25.5 N.m (1.7 ~ 2.6 kgf.m, 12.3 ~ 18.8 lb-ft)

Fig 3: Identifying Bolt Of Dash Panel
Courtesy of HYUNDAI MOTOR AMERICA
Install the snap pin (A) and clevis pin (B).

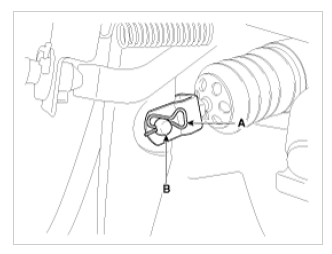

Fig 4: Identifying Snap And Clevis Pin
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Before installing the pin, apply the grease to the clevis pin.
- Use a new snap pin whenever installing.
Install the stop lamp switch securely.
Connect the stop lamp switch connector (A).

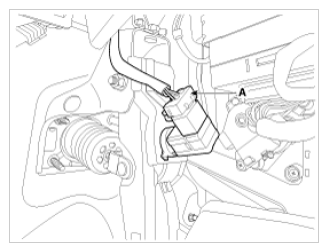

Fig 5: Identifying Stop Lamp Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA
Adjust the brake pedal height and free play.
Check the brake pedal operation after installing the brake pedal.
Install the shower duct (A).

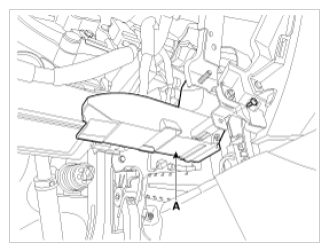

Fig 6: Identifying Shower Duct
Courtesy of HYUNDAI MOTOR AMERICA
Install the knee airbag module.
(Refer to "KNEE AIRBAG MODULE ")
Install the crash pad lower panel.
(Refer to "CRASH PAD LOWER PANEL ")
Reconnect the battery negative cable.
