Repair Procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.

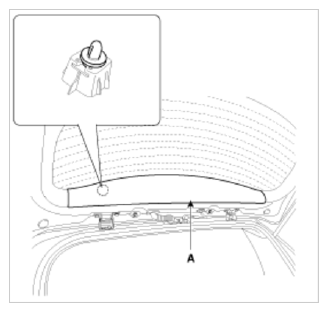

Using a screwdriver or remover, remove the tailgate upper trim (A).

Fig 1: Identifying Tailgate Upper Trim
Courtesy of HYUNDAI MOTOR AMERICA

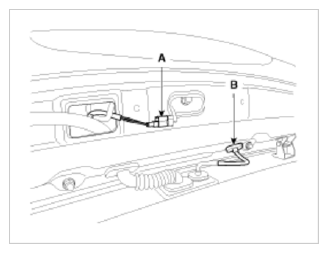

Disconnect the connector (A) and remove the washer hose (B).

Fig 2: Identifying Connector And Washer Hose
Courtesy of HYUNDAI MOTOR AMERICA

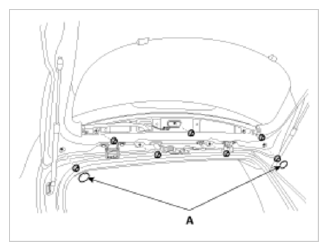

Remove the plug hole (A) and then remove the mounting nuts.

Fig 3: Identifying Plug Hole
Courtesy of HYUNDAI MOTOR AMERICA

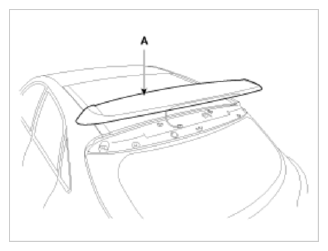

Remove the rear spoiler assembly (A).

Fig 4: Identifying Rear Spoiler Assembly
Courtesy of HYUNDAI MOTOR AMERICA

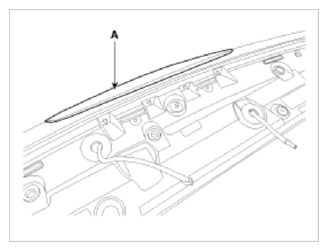

Remove the high mounted stop lamp (A) after removing the mounting nuts.

Fig 5: Identifying High Mounted Stop Lamp
Courtesy of HYUNDAI MOTOR AMERICA
