Operating Condition
WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
PTC heater operates according to the following conditions:
- Battery voltage: 13.0V or above
- Engine: 900 rpm or above

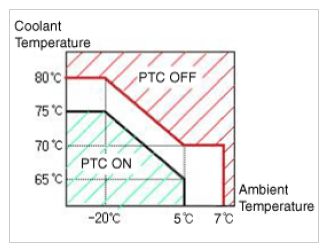

- Ambient temperature and coolant temperature
| Ambient Temperature | Coolant Temperature | PTC Operation |
|---|---|---|
| Below -20°C (-4°F) | Below 75°C (167°F) | ON |
| 5°C (41°F) | Below 65°C (149°F) | ON |
| 7°C (44.6°F) or above | - | OFF |
| - | 80°C (176°F) or above | OFF |
