Repair procedures: Replacement
WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
NOTE:
- Take care not to scratch the body surface.

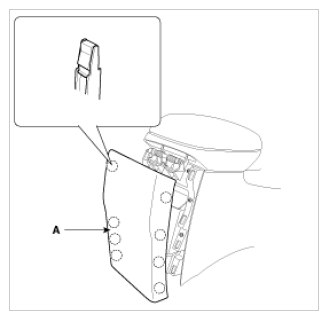

- Using a screwdriver or remover, remove the rear console cover (A).
- Install in the reverse order of removal.
Information
- Replace any damage clips.
