Repair procedures: Replacement: [M/T]

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

NOTE:

Take care not to scratch the body surface.

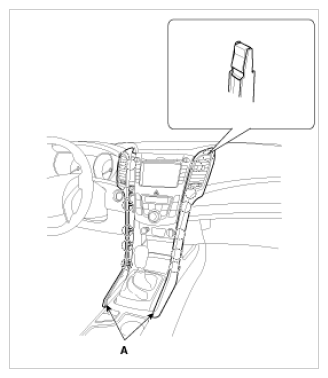

Using a screwdriver or remover, remove the crash pad center garnish [LH, RH] (A).

Fig 1: Identifying Crash Pad Center Garnish
Courtesy of HYUNDAI MOTOR AMERICA

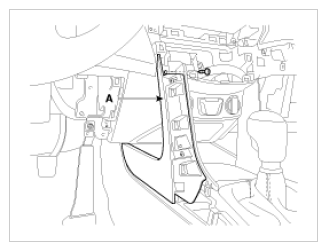

After loosening the mounting screw, then remove the console garnish [LH, RH] (A).

Fig 2: Identifying Console Garnish
Courtesy of HYUNDAI MOTOR AMERICA

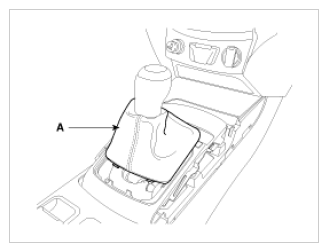

Disconnect the gear boots (A).

Fig 3: Identifying Gear Boots
Courtesy of HYUNDAI MOTOR AMERICA

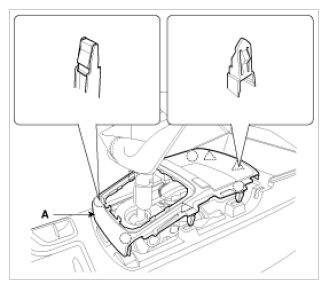

Using a screwdriver or remover, remove the console upper cover (A).

Fig 4: Identifying Console Upper Cover
Courtesy of HYUNDAI MOTOR AMERICA

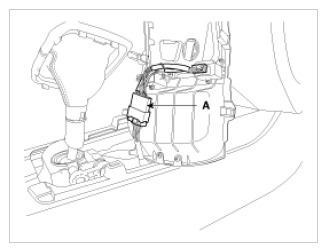

Disconnect the connector (A).

Fig 5: Identifying Console Connector
Courtesy of HYUNDAI MOTOR AMERICA

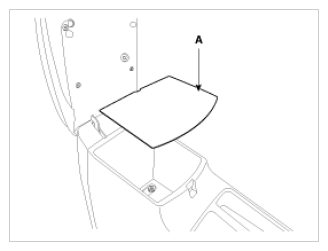

Remove the console tray met (A).

Fig 6: Identifying Console Tray Met
Courtesy of HYUNDAI MOTOR AMERICA

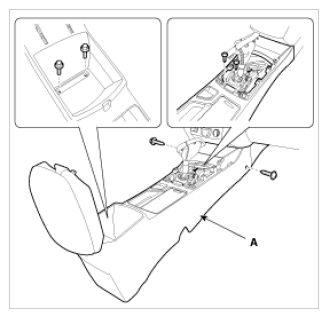

After loosening the mounting screws and bolts, then remove the floor console assembly (A).

Fig 7: Identifying Floor Console Assembly
Courtesy of HYUNDAI MOTOR AMERICA

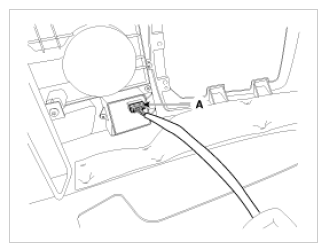

Disconnect the EPB switch connector (A).

Fig 8: Identifying EPB Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA
Detach the clips, then remove the console side cover (A).

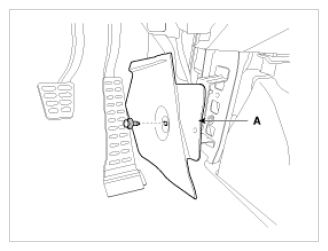

[LH]

Fig 9: Identifying Console Side Cover (LH)
Courtesy of HYUNDAI MOTOR AMERICA

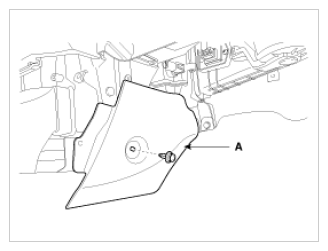

[RH]

Fig 10: Identifying Console Side Cover (RH)
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Make sure the connector are connected in properly.
- Replace any damage clips.
