Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.
The boot band should be replaced with a new one.

Remove the Front Driveshaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

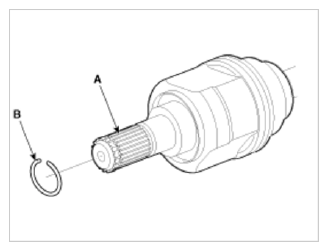

Remove the circlip (B) from the driveshaft spline (A).

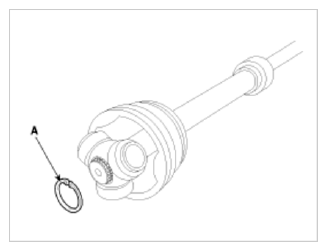

Fig 1: Identifying Driveshaft Spline And Circlip
Courtesy of HYUNDAI MOTOR AMERICA
Remove both boot bands from the TJ case.

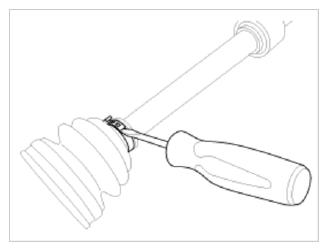

Fig 2: Removing Boot Bands From TJ Case
Courtesy of HYUNDAI MOTOR AMERICA

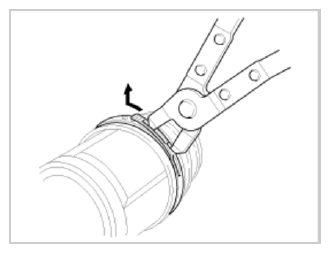

Fig 3: Removing Boot Bands Using Tool
Courtesy of HYUNDAI MOTOR AMERICA
Remove the TJ case (A).

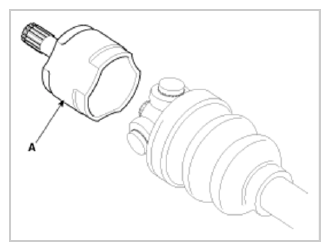

Fig 4: Identifying TJ Case
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Make alignment marks on spider roller assembly (A), joint case (B), and shaft spline (C) to aid reassembly.

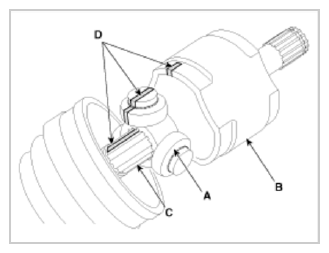

Fig 5: Identifying Marks On Spider Roller Assembly, Joint Case And Shaft Spline
Courtesy of HYUNDAI MOTOR AMERICA
Remove the snap ring (A) from the shaft.

Fig 6: Identifying Snap Ring From Shaft
Courtesy of HYUNDAI MOTOR AMERICA

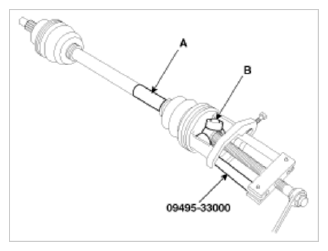

Remove the spider assembly (B) from the driveshaft (A) using the special tool (09495-33000).

Fig 7: Removing Spider Assembly From Driveshaft Using Special Tool (09495-33000)
Courtesy of HYUNDAI MOTOR AMERICA
Clean the spider assembly.
Remove the TJ boot (A).
CAUTION:
- For reusing the boot (A), wrap tape (B) around the driveshaft splines (C) to protect the boot (A).

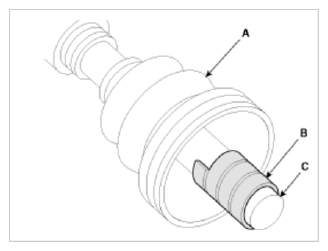

Fig 8: Identifying Boot, Wrap Tape And Driveshaft Splines
