Repair procedures: Installation

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Installation is the reverse of removal.
Adjust the clutch switch.
1. Adjust the gab by rotating the adjust nut (A) to satisfy the standard gap range.
  Standard gap range:

  0.5 ~ 1.0 mm (0.0197 ~ 0.0394 in.)
2. Tighten the nut (B) with the specified torque.
  Tightening torque:

  7.8 ~ 9.8 N (0.8 ~ 1.0 kgf.m, 5.8 ~ 7.2 lb-ft)

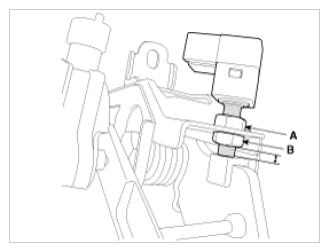

  Fig 1: Checking Clutch Switch Gap Of Adjust Nut
  Courtesy of HYUNDAI MOTOR AMERICA
