Repair procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Turn the ignition switch OFF, and then remove battery (-) cable.
Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

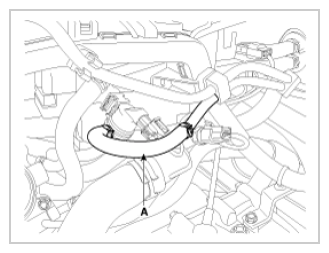

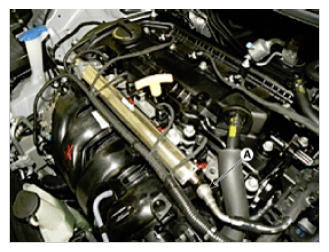

Disconnect the fuel feed quick-connector (A).

Fig 1: Identifying Fuel Feed Quick-Connector
Courtesy of HYUNDAI MOTOR AMERICA

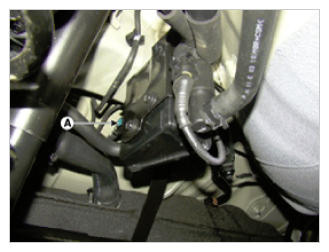

Disconnect the vapor hose (A) which is connected from the PCSV.

Fig 2: Identifying Vapor Hose
Courtesy of HYUNDAI MOTOR AMERICA

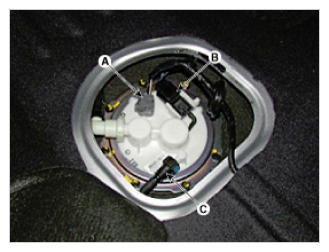

Disconnect the fuel pump connector (A) and fuel feed quick-connector (C) from the fuel pump.
Disconnect the fuel tank pressure sensor connector (B).

Fig 3: Identifying Fuel Pump Connector And Fuel Tank Pressure Sensor Connector
Courtesy of HYUNDAI MOTOR AMERICA
Lift the vehicle.
Remove the fuel tank.
(Refer to Fuel Delivery System - "FUEL TANK ")
Disconnect the vapor tube quick-connector (A).

Fig 4: Identifying Vapor Tube Quick-Connector
Courtesy of HYUNDAI MOTOR AMERICA

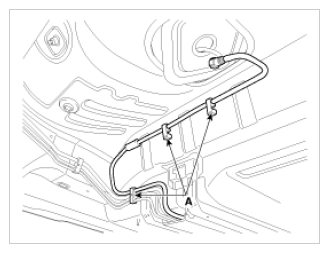

Remove the vapor tube line fixing clip (A).

Fig 5: Identifying Vapor Tube Line Fixing Clip
Courtesy of HYUNDAI MOTOR AMERICA

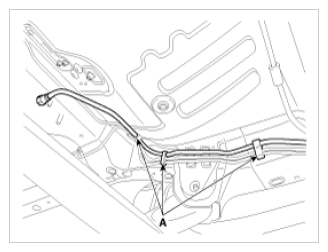

Remove the fuel feed line fixing clip (A).

Fig 6: Identifying Fuel Feed Line Fixing Clip
Courtesy of HYUNDAI MOTOR AMERICA

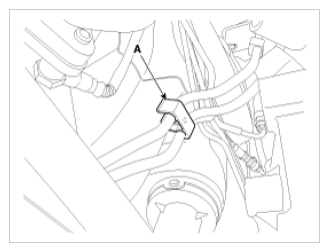

Disconnect the fuel & brake line protect (A) from the fixing clip.

Fig 7: Disconnecting Fuel And Brake Line Protect From Fixing Clip
Courtesy of HYUNDAI MOTOR AMERICA

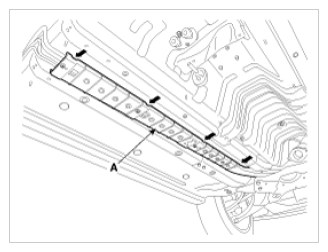

Remove the fuel line fixing clip (A).

Fig 8: Identifying Fuel Line Fixing Clip
Courtesy of HYUNDAI MOTOR AMERICA
Remove the fuel line (A).

Fig 9: Identifying Fuel Line
Courtesy of HYUNDAI MOTOR AMERICA
