Front Bumper Cover: Disassembly
WARNING: This page is about a different car, the 2015 Ford C-Max. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Disassembly procedure may contain assembly details.
- 1.WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- 2.
Remove the front bumper cover. Refer to: Front Bumper Cover .
Vehicles with parking aid
- 6.
Remove the parking aid sensors. Refer to: Front Inner Parking Aid Sensor . Refer to: Front Outer Parking Aid Sensor .
- 7.
Remove the front active park assist sensors. Refer to: Front Active Park Assist Sensors .
All vehicles
- 8.
Remove the front fog lamps. Refer to: Front Fog Lamp .
NOTE:
If equipped.

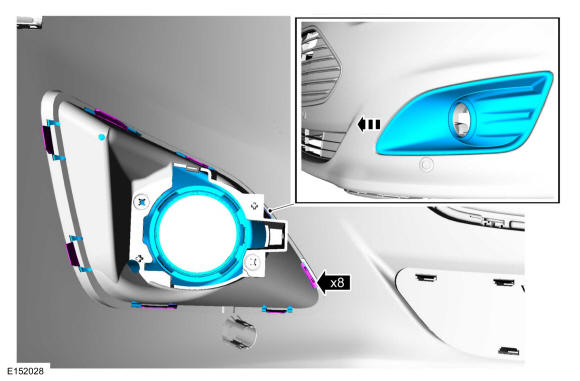

- 9.
On each side.
NOTE:
Vehicle with fog lamps shown in illustration, vehicle without fog lamps similar.
