Repair procedures: Installation

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Install the oil screen (A) with a new gasket (B).
Tightening torque

Bolt:

19.6 ~ 26.5 N.m (2.0 ~ 2.7 kgf.m, 14.5 ~ 19.5 lb-ft)

Nuts:

11.8 ~ 13.7 N.m (1.2 ~ 1.4 kgf.m, 8.7 ~ 10.1 lb-ft)

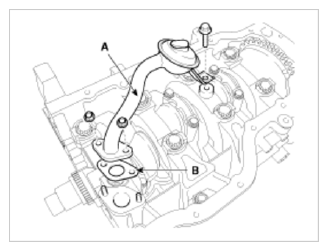

Fig 1: Identifying Oil Screen And Gasket
Courtesy of HYUNDAI MOTOR AMERICA
Install the oil pan.
1. Using a gasket scraper, remove all the old packing material from the gasket surfaces.
2. The sealant locations on the oil pan and the lower crankcase must be free of harmful foreign materials, oil, dust and moisture. Spraying cleaner on the surface and wiping with a clean duster.
3. After applying liquid sealant on the oil pan, assemble it within 5 minutes after sealant was applied. Continuous bead of sealant should be applied to prevent any path of oil leakage.
  Bead width

  Whole section: 4.0 ~ 5.0 mm (0.16 ~ 0.20 in.)

  Section A: 1.5 ~ 2.5 mm (0.06 ~ 0.10 in.)

  Sealant: Threebond 1217H (Hyundai Gray RTV)

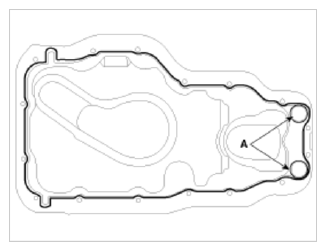

  Fig 2: Identifying Oil Pan Liquid Sealant Applying Area
  Courtesy of HYUNDAI MOTOR AMERICA
  CAUTION:
  - When applying sealant gasket, sealant must not be protruded into the inside of oil pan.
  - To prevent leakage of oil, apply sealant gasket on the inner threads of the bolt holes.
  - If the sealant is applied to the bottom surface of the lower crankcase, it should be the same position as the oil pan.
4. Install the oil pan (A). Uniformly tighten the bolts in several passes.
  Tightening torque:

  9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

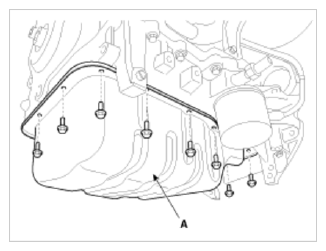

  Fig 3: Identifying Oil Pan Bolts
  Courtesy of HYUNDAI MOTOR AMERICA

  CAUTION: After assembly, wait at least 30 minutes before filling the engine with oil.

  CAUTION: Always use a new drain plug gasket.
Refill engine with engine oil.
