Repair procedures: Installation

WARNING: This page is about a different car, the 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply engine oil on the edge of new oil seal.
    CAUTION: Remove any debris from the lip portion of the oil seal.
  2. Install the front oil seal using SST (09231-2E000).

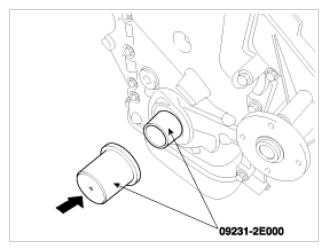

    Fig 1: Installing Front Oil Seal Using SST (09231-2E000)
    G09885412Courtesy of HYUNDAI MOTOR AMERICA
  3. Install the other parts reverse order of removal.
