Overhead Console: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
- 1.

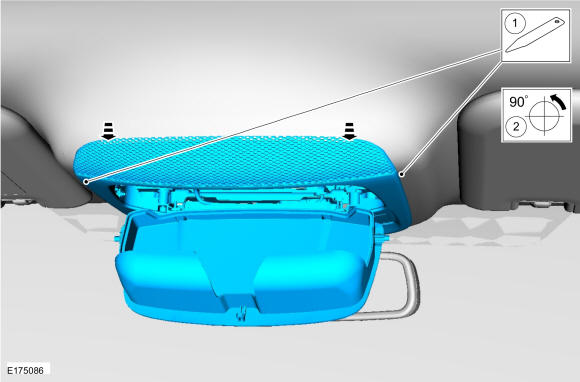

Insert trim tool in location(s) shown below.
- 2.

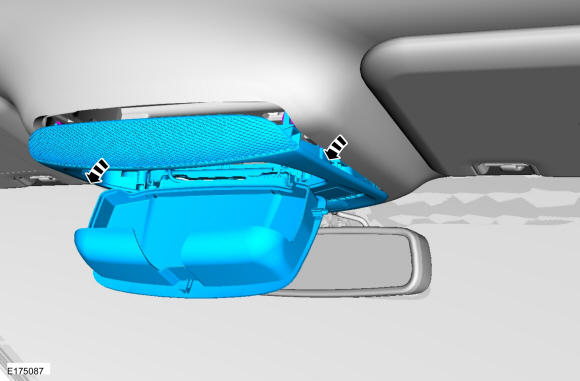

Rotate the tool 90 degrees to release the overhead console rear retainers.
- 1.
- 2.

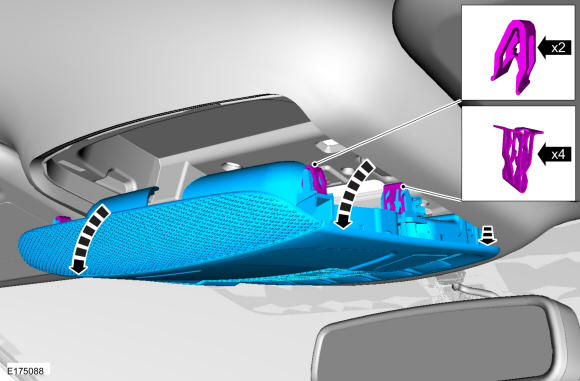

Pulling down slightly from inside the sunglass bin and working from the rear to the front along each side release the overhead console retainers.
