Fuel System Pressure Check: Check

  1. Refer to: HEALTH AND SAFETY PRECAUTIONS .
  2. Refer to: Fuel System Pressure Release .
  3. Refer to: BATTERY DISCONNECT AND CONNECT .
  4. WARNING: Fuel may remain pressurized in some fuel lines after the Fuel System Pressure Release procedure. Wear safety gloves and a face shield when disconnecting pressure lines to avoid skin and eye contact. Failure to follow this instruction may result in serious personal injury.
    NOTE: Be prepared to collect escaping fluid.

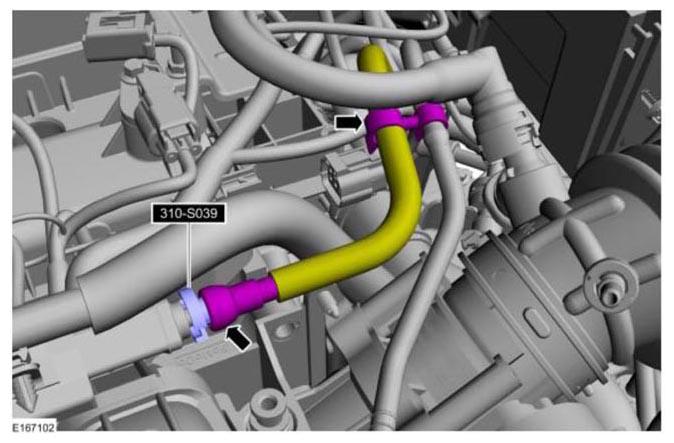

    Always wrap the fuel line connection with a towel before disconnecting it.

    Use Special Service Tool: 310-S039 (T90T-9550-S) Disconnect Tool, Spring Lock Coupling  .

    G09739826

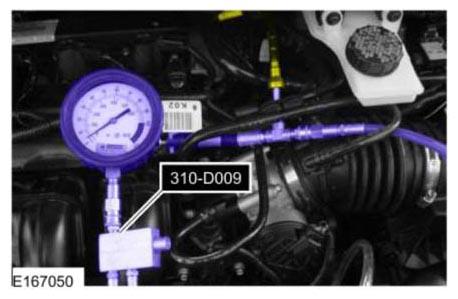

  5. Install the Fuel Pressure Test Kit between the fuel jumper tube and the fuel tube.

    Install Special Service Tool: 310-D009 (D95L-7211-A) Fuel Pressure Test Kit  .

    G09739827
  6. Refer to: BATTERY DISCONNECT AND CONNECT .
  7. NOTE: Make sure that the system pressure is within specification.
    NOTE: Carry out a Key ON Engine OFF (KOEO) visual inspection for fuel leaks prior to completing the fuel system pressure test.
    NOTE: After completion of the fuel system pressure test, open the drain valve on the Fuel Pressure Test Kit and release any residual fuel into a suitable container prior to removing the tool.

    Refer to: SPECIFICATIONS .

  8. Remove Special Service Tool: 310-D009 (D95L-7211-A) Fuel Pressure Test Kit  .
    G09739827
