OEM Ground Distribution: Grounds: Notes

Fig 1: Grounds System - Wiring Diagram (1 Of 3)
G09429327Courtesy of FORD MOTOR CO.

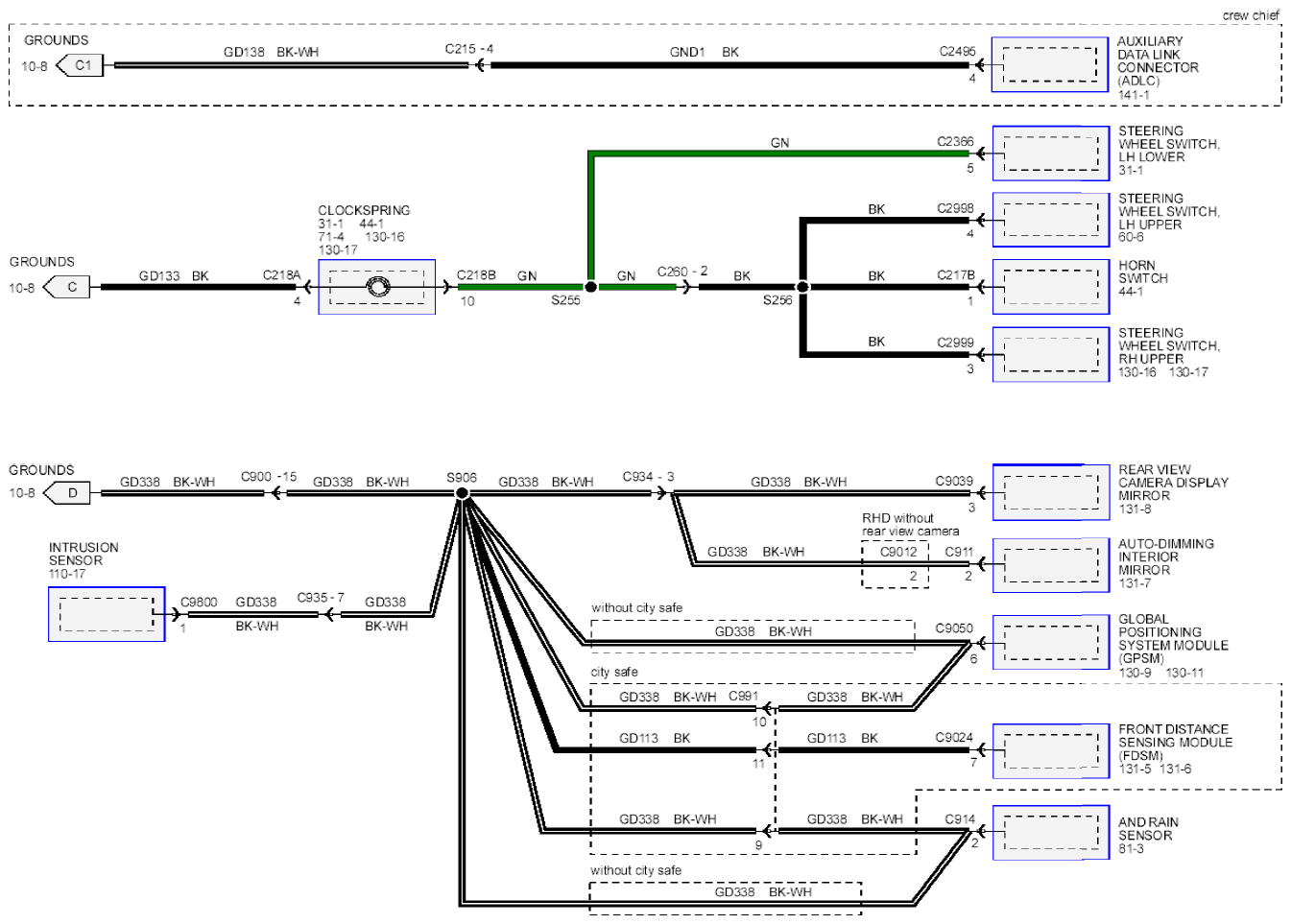

Fig 2: Grounds System - Wiring Diagram (2 Of 3)
G09429334Courtesy of FORD MOTOR CO.

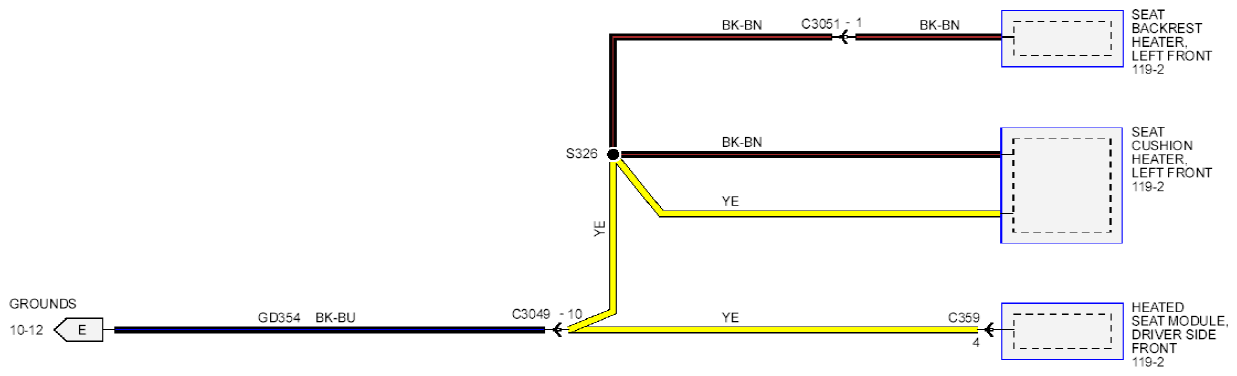

Fig 3: Grounds System - Wiring Diagram (3 Of 3)
G09429338Courtesy of FORD MOTOR CO.
