Selector Lever Cable: Installation

  1. NOTICE: Gearshift cables must not be kinked or bent.

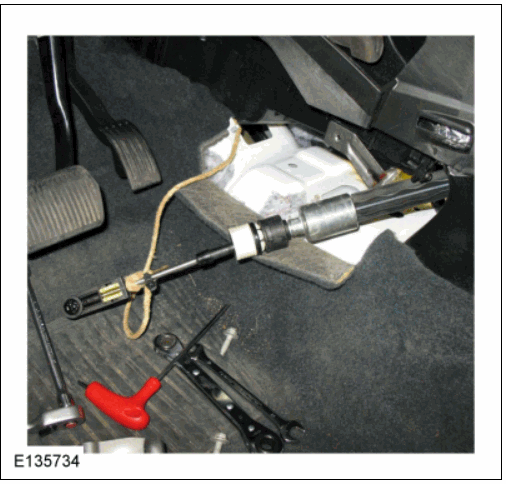

    Attach a pull cord to the selector lever cable.

    Use the General Equipment: Draw Cord

    Use the General Equipment: Adhesive Tape

    G00553648
  2. To install, reverse the removal procedure.
  3. Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment .
