Selector Lever Cable Adjustment: Adjustment

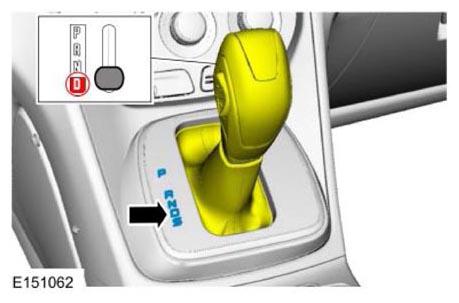

  1. G09739756
  2. Refer to: AIR CLEANER .

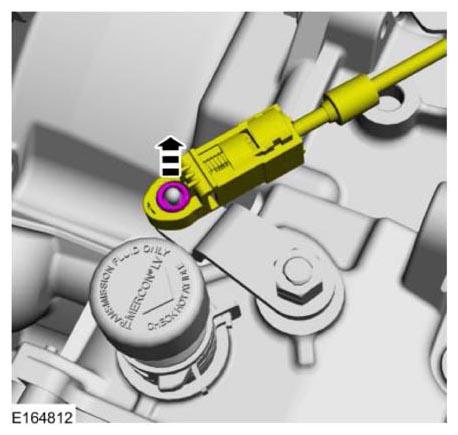

  3. G09739757

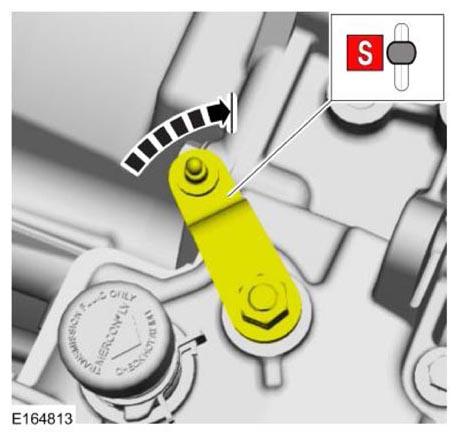

  4. G09739758

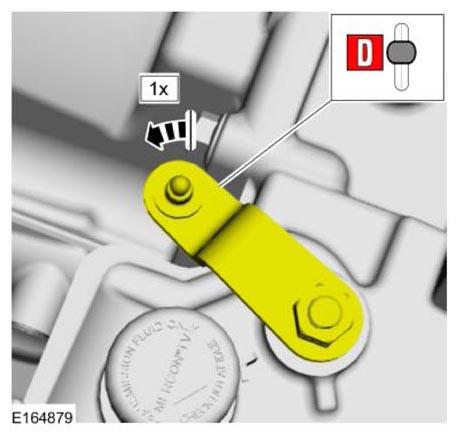

  5. G09739759

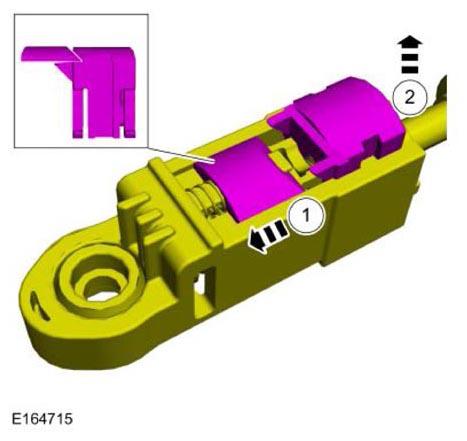

  6. G09739760

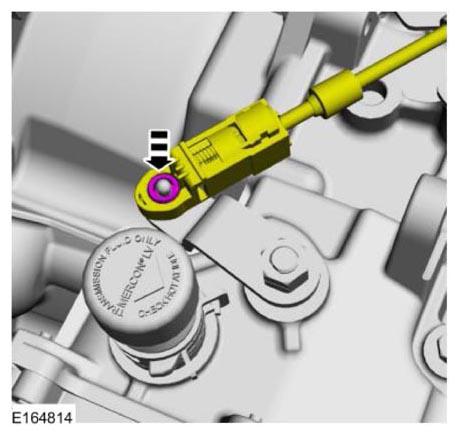

  7. G09739761

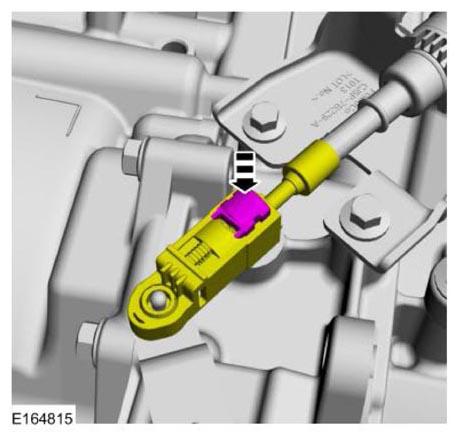

  8. G09739762
  9. Refer to: AIR CLEANER .
  10. Verify the engine starts only in park (P) and neutral (N) and the reverse lamps illuminate only in reverse (R).
