Customer Satisfaction Program 14B06 - Fleet Option Speed Limiter Programming (14B06)

Publication date: 2014-10-17
Reference number: 14B06

CUSTOMER SATISFACTION PROGRAM 14B06 - FLEET OPTION SPEED LIMITER PROGRAMMING

SERVICE CAMPAIGN BULLETIN

Reference Number(s): 14B06, Date of Issue: October 17, 2014

FORD:

2014 Transit Connect

CUSTOMER SATISFACTION PROGRAM 14B06

NOTE: THIS FIELD SERVICE ACTION EXPIRED ON NOVEMBER 2, 2015.

SUBJECT

DELIVERY HOLD - Customer Satisfaction Program 14B06

Certain 2014 Model Year Transit Connect Vehicles

Fleet Option Speed Limiter Programming

PROGRAM TERMS

This program will be in effect through November 1, 2015. There is no mileage limit for this program.

AFFECTED VEHICLES

Certain 2014 model year Transit Connect vehicles built at the Valencia Assembly Plant from November 26, 2013 through June 18, 2014. Affected vehicles are identified in OASIS. In addition, for a list of vehicles assigned to your dealership, visit https://web.fsavinlists.dealerconnection.com. This information will be available by October 17, 2014.

REASON FOR THIS PROGRAM

In all of the affected vehicles, the Fleet option speed limiter that was purchased was not enabled in the Powertrain Control Module (PCM).

NOTE: Although the Fleet option speed limiter is inoperative, the standard vehicle speed limiter will still function normally to prevent the vehicle exceeding its rated speed limit.

SERVICE ACTION

Before delivering any of the vehicles involved in this program, dealers are to update the PCM calibration and configuration data using IDS release 90.04 or higher. This service must be performed on all affected vehicles at no charge to the vehicle owner.

OWNER NOTIFICATION MAILING SCHEDULE

Owner Letters are expected to be mailed the week of October 20, 2014. Dealers should repair any affected vehicles that arrive at their dealerships, whether or not the customer has received a letter.

ATTACHMENTS

Attachment I: Administrative Information
Attachment II: Labor Allowances and Parts Ordering Information
Attachment III: Technical Information
Owner Notification Letter

QUESTIONS & ASSISTANCE

Special Service Support Center (Dealer Assistance Only) ... 1-800-325-5621

ATTACHMENT I

DELIVERY HOLD - Customer Satisfaction Program 14B06

Certain 2014 Model Year Transit Connect Vehicles

Fleet Option Speed Limiter Programming

OASIS ACTIVATED?

Yes, OASIS will be activated on October 17, 2014.

FSA VIN LIST ACTIVATED?

Yes, FSA VIN list will be available through https://web.fsavinlists.dealerconnection.com on October 17, 2014. Owner names and addresses will be available by October 27, 2015.

NOTE: Your FSA VIN list may contain owner names and addresses obtained from motor vehicle registration records. The use of such motor vehicle registration data for any purpose other than in connection with this program is a violation of law in several states, provinces, and countries. Accordingly, you must limit the use of this listing to the follow-up necessary to complete this service action.

STOCK VEHICLES

Correct all affected units in your new vehicle inventory before delivery.

SOLD VEHICLES

Owners of affected vehicles will be directed to dealers for repairs.
Immediately contact any of your affected customers whose vehicles are not on your VIN list but are identified in OASIS. Give the customer a copy of the Owner Notification Letter (when available) and schedule a service date.
Correct other affected vehicles identified in OASIS which are brought to your dealership.

TITLE BRANDED/SALVAGED VEHICLES

Affected title branded and salvaged vehicles are eligible for this service action.

ADDITIONAL LABOR TIME AND/OR PARTS

Contact the Special Service Support Center (SSSC) if you have any of the following:

Damage that you believe was caused by the covered condition.
A condition that requires additional labor and/or parts to complete the repair.
Aftermarket equipment or non-Ford modifications to the vehicle which might prevent the repair of the covered condition.

Contact the SSSC prior to the repair. Please be prepared to provide your requested additional warranty part cost, estimated additional labor time, and dealer specific labor rate. Requests for approval after completion of the repair may not be granted. Ford Motor Company reserves the right to deny coverage for related damage in cases where the vehicle owner has not had this recall performed on a timely basis. Additional related damage parts are subject to random selection for return to the Ford Warranty Parts Analysis Center (WPAC).

OWNER REFUNDS

Refunds are not approved for this program.

RENTAL VEHICLES

The use of rental vehicles is not approved for this program.

CLAIMS PREPARATION AND SUBMISSION

Enter claims using Direct Warranty Entry (DWE).
Refer to ACESII manual for claims preparation and submission information.
Additional labor and/or parts must be claimed as related damage on a separate repair line from which the FSA is claimed. Additional labor and /or parts require prior approval from the Special Service Support Center.
PROGRAM TERMS: This program will be in effect through November 1, 2015. There is no mileage limit for this program.

ATTACHMENT II

DELIVERY HOLD - Customer Satisfaction Program 14B06

Certain 2014 Model Year Transit Connect Vehicles

Fleet Option Speed Limiter Programming

LABOR ALLOWANCES

Description	Labor Operation	Labor Time
Update PCM Calibration and Configuration Data	14B06B	0.4 Hours

PARTS REQUIREMENTS/ORDERING INFORMATION

Parts are not required to complete this repair.

ATTACHMENT III

CUSTOMER SATISFACTION PROGRAM 14B06

CERTAIN 2014 MODEL YEAR TRANSIT CONNECT - FLEET OPTION SPEED LIMITER PROGRAMMING

MODULE PROGRAMMING

NOTE: Reprogram appropriate vehicle modules before performing diagnostics and clear all Diagnostic Trouble Codes (DTCs) after programming. For DTCs generated after reprogramming, follow normal diagnostic service procedures.

Connect a battery charger to the 12V battery.
Update the PCM calibration using Module Reprogramming. IDS release 90.04 or higher is required.
NOTE: Calibration files may also be obtained at www.motorcraftservice.com.

NOTE: Follow the IDS on-screen instructions to complete the configuration procedure.
Update the PCM configuration using As-Built.
NOTE: Follow the on-screen instructions to complete the programming procedure

NOTE: When prompted, select "Configuration Data" to restore PCM configuration.
Disconnect the battery charger from the 12V battery, once reprogramming has completed.

SERVICE PROCEDURE

Important Information for Module Programming

NOTE: When programming or reprogramming a module, use the following basic checks to ensure programming completes without errors.

Make sure the 12V battery is fully charged before carrying out the programming steps and connect IDS/scan tool to a power source.
Inspect Vehicle Communication Module (VCM) and cables for any damage. Make sure scan tool connections are not interrupted during programming.
A hardwired connection is strongly recommended.
Turn off all unnecessary accessories (radio, heated/cooled seats, headlamps, interior lamps, HVAC system, etc.) and close doors.
Disconnect/depower any aftermarket accessories (remote start, alarm, power inverter, CB radio, etc.).
Follow all scan tool on-screen instructions carefully.
Disable IDS/scan tool sleep mode, screensaver, hibernation modes.
Create all sessions Key On Engine Off (KOEO). Starting the vehicle before creating a session will cause errors within the programming inhale process.

Recovering A Module When Programming Has Resulted In A Blank Module:

NEVER DELETE THE ORIGINAL SESSION!

Obtain the original IDS that was used when the programming error occurred during Module Reprogramming (MR) or Programmable Module Installation (PMI).
Disconnect the VCM from the Data Link Connector (DLC) and the IDS.
Reconnect the VCM to IDS and then connect to the DLC. Once reconnected, the VCM icon should appear in the corner of the IDS screen. If it does not, troubleshoot the IDS to VCM connection.
Locate the ORIGINAL vehicle session when programming failed. This should be the last session used in most cases. If not, use the session created on the date that the programming failed.
NOTE: If the original session is not listed in the previous session list, click the "Recycle Bin" icon at the lower right of the previous session screen. This loads any deleted sessions and allows you to look through them. Double-click the session to restore it.
Once the session is loaded, the failed process should resume automatically.
If programming does not resume automatically, proceed to the Module Programming menu and select the previously attempted process, PMI or MR.
Follow all on-screen prompts/instructions.
The last screen on the IDS may list additional steps required to complete the programming process. Make sure all applicable steps listed on the screen are followed in order.

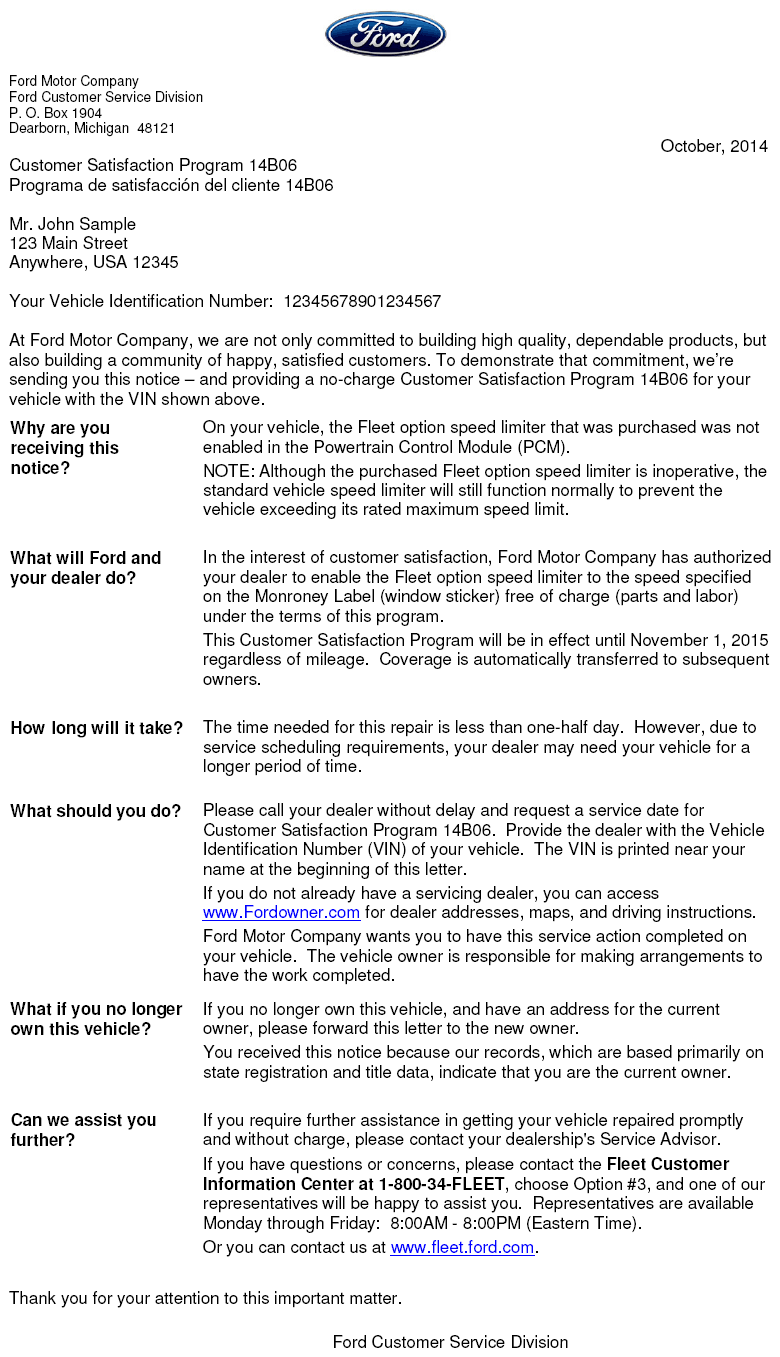

CUSTOMER NOTIFICATION LETTER
