Powertrain Control Module (PCM): Installation

  1. To install, reverse the removal procedure.

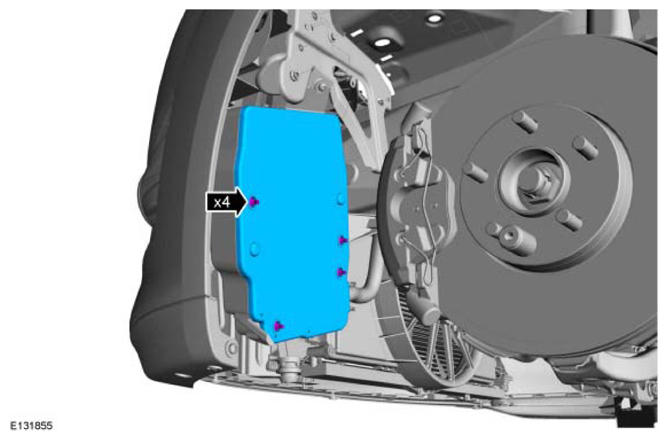

    Vehicles with PCM security shield

  2. Tighten the shear bolt until the head is sheared off.
    G09738809

    All vehicles

  3. NOTE: This step is only necessary when installing a new component.

    Upload the module information from the diagnostic tool to the module using the Programmable Modules Installation routine.

    Use the General Equipment: Ford Diagnostic Equipment
