Transfer Case Cooler: Installation

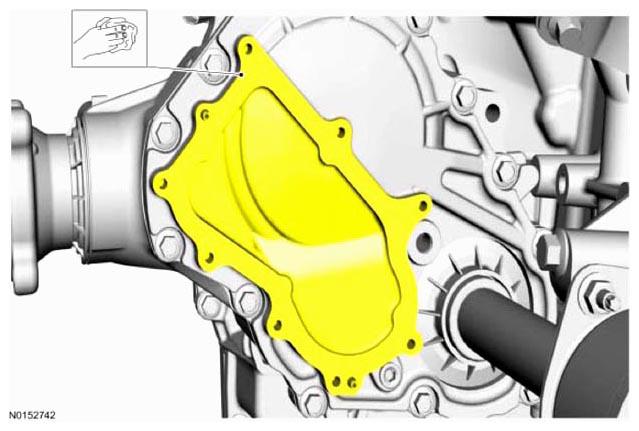

  1. G09142656

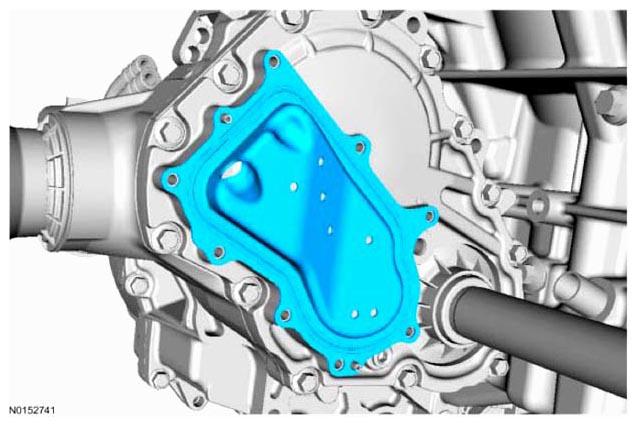

  2. G09142657

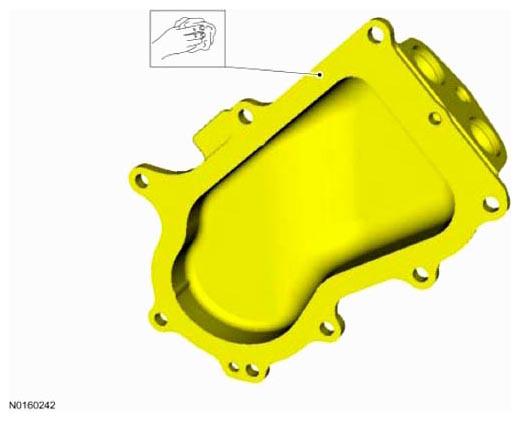

  3. G09142658
    • Tighten to 12 Nm (106 lb-in).

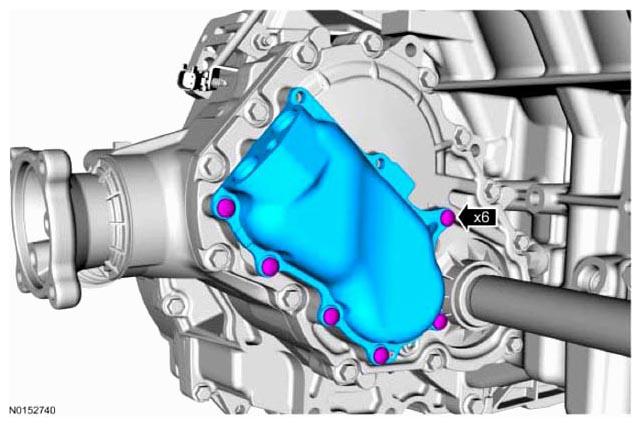

      G09142654
    • Tighten to 25 Nm (18 lb-ft).

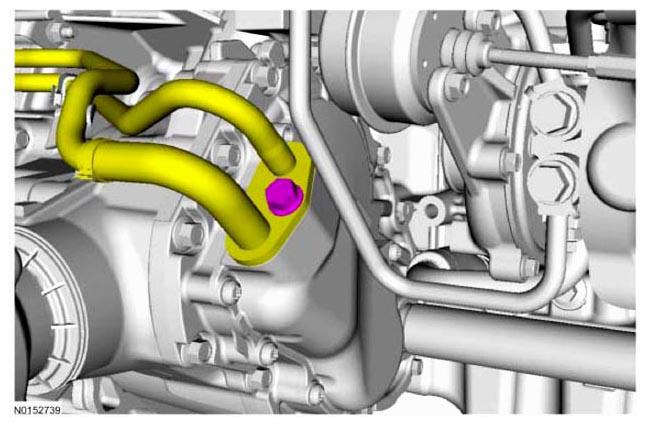

      G09142653

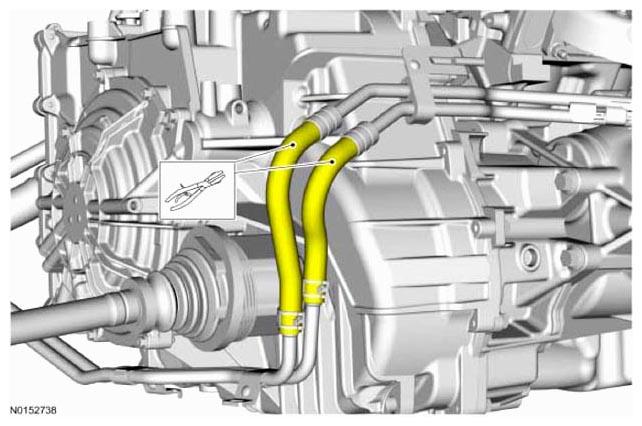

  6. Remove hose clamp pliers.
    G09142652
  7. Fill the PTU  fluid level. Refer to POWER TRANSFER UNIT (PTU) DRAINING AND FILLING .
  8. NOTE: Replace the O-ring before installing the PTU  temperature sensor.
    • Tighten to 12 Nm (106 lb-in).

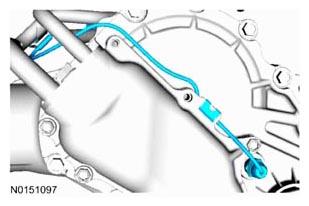

      G08651103

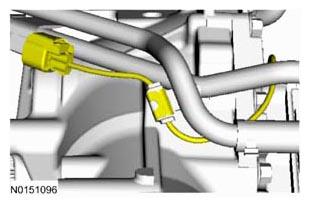

  9. G08651100

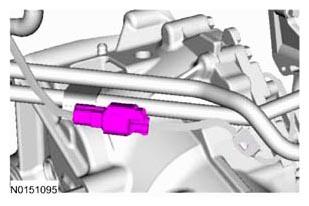

  10. G08651099
    • Tighten to 12 Nm (106 lb-in).

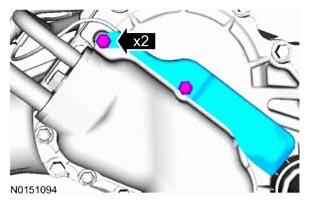

      G08651098
  12. Install the RH  catalytic converter. Refer to EXHAUST SYSTEM .
  13. Fill and bleed the cooling system. Refer to ENGINE COOLING .
