Differential Gear Assembly: Disassembly

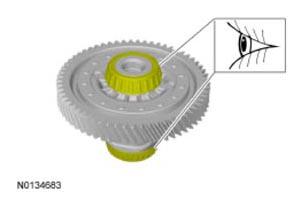

  1. NOTE: AWD  shown in illustration below, FWD  similar.

    Inspect the differential bearings for damage or excessive wear. Install new bearings if necessary.

    G09731845
  2. Special Tool(s): Remover/Installer, Front Wheel Hub 204-069 (T81P-1104-C), Puller, Bearing 205-D064 (D84L-1123-A), Step Plate 205-D019 (D80L-630-8) (AWD  ) or Step Plate 205-D015 (D80L-630-4) (FWD  ).
    G09731846

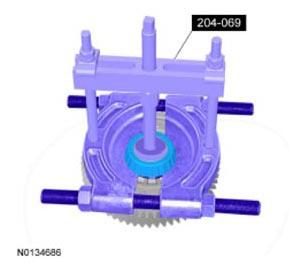

  3. NOTE: AWD  shown in illustration below, FWD  similar.

    Special Tool(s): Remover/Installer, Front Wheel Hub 204-069 (T81P-1104-C), Puller, Bearing 205-D064 (D84L-1123-A), Step Plate 205-D019 (D80L-630-8).

    G09731847

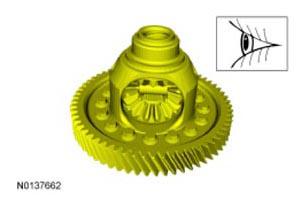

  4. NOTE: If replacing the ring gear, it is also necessary to replace the transfer shaft.

    Check the differential assembly and the ring gear for damage. Visual check.

    G09731848
  5. G09731849
  6. G09731850
