Removal and Installation

RH side

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The upper intake manifold must be removed to access the RH ignition coil-on-plugs.

Remove the upper intake manifold. For additional information, refer to ENGINE - 3.7L TI-VCT .

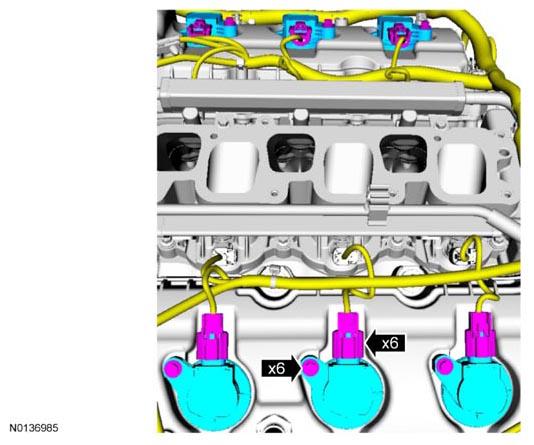

Both sides
NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

NOTE: Before installing the ignition coil-on-plug apply a small amount of dielectric grease to the inside of the ignition coil-on-plug boots.
- Tighten to 7 Nm (62 lb-in).

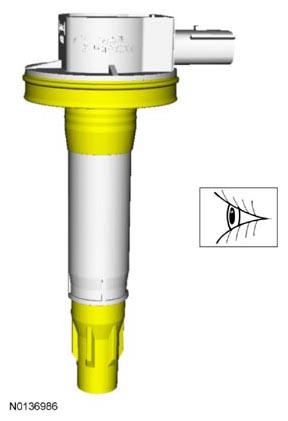

Inspect the ignition coil-on-plug rubber seals and boots for cracks, rips, or tears. Replace any damaged coil-on-plug rubber seals or boots.
To install, reverse the removal procedure.
