Generator - 2.0L GTDI: Removal

  1. Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. G08658948
  3. Remove the upper Charge Air Cooler (CAC) pipe. For additional information, refer to Intake Air System Components - Exploded View in INTAKE AIR DISTRIBUTION AND FILTERING .
  4. G08658949

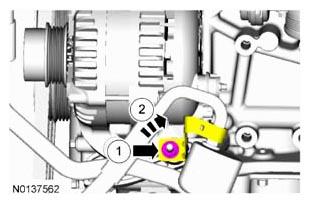

  5. G08658950

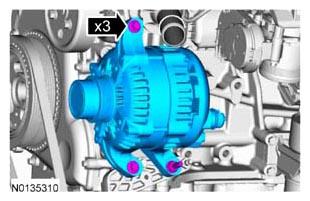

  6. G08658951
