Window Adjust Switch, Passenger Side (SL, SEL): Schematic

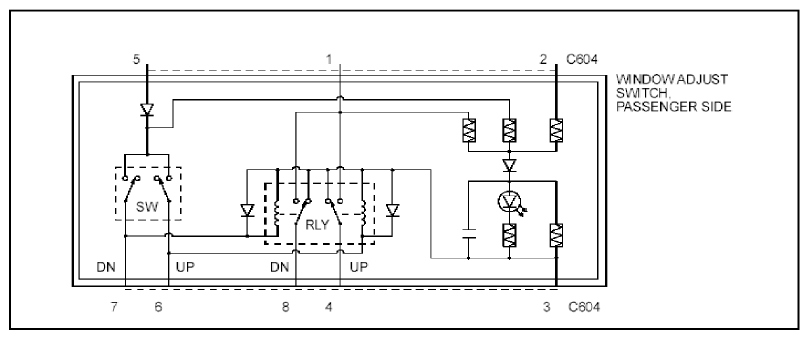

Fig 1: Passenger Side Window Adjust Switch (SL, SEL) Schematic

G09300877

Courtesy of FORD MOTOR CO.
