Removal And Installation: Transaxle: Installation

NOTE: Prior to installing a new, re-manufactured or overhauled transmission, clean the transmission fluid cooler tubes. Failure to clean the transmission fluid cooler tubes can result in transmission failure.
NOTE: If the transmission was overhauled, or if installing a new transmission and the transmission fluid cooler has not been flushed, flush the transmission fluid cooler at this time. Refer to the Transmission Fluid Cooler Backflushing and Cleaning in TRANSAXLE/TRANSMISSION COOLING - 6F35 . Clean the transmission-mounted transmission fluid cooler tubes by hand.
  1. Lubricate the torque converter pilot hub with Multi-Purpose Grease.
    G09708758
  2. NOTE: If the transmission is not positioned on the dowel pins, damage to the transmission may occur.

    If the dowel pins were pulled out of the engine block during removal, install new dowel pins in the engine block.

    G09708759
  3. Support the transmission with a transmission jack. Secure the transmission to the transmission jack with a safety strap.

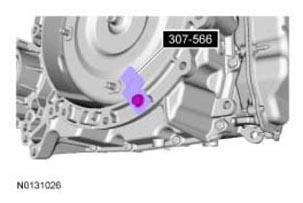

  4. Position the transmission behind the engine and remove 307-566.
    G09708760

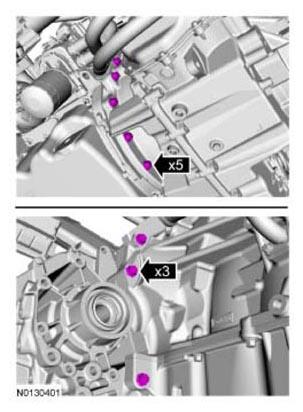

  5. Align the torque converter stud marked during removal with the flexplate, position the transmission on the dowel pins and install the lower transmission-to-engine bolts.
    • Tighten to 48 Nm (35 lb-ft).
      G09708761

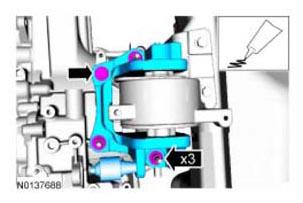

  6. Apply threadlock to the threads and install the nuts and the bolt.
    • Tighten the nuts to 63 Nm (46 lb-ft).
    • Tighten the bolt to 80 Nm (59 lb-ft).
      G09708762

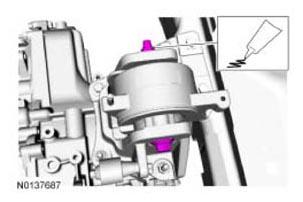

  7. Apply threadlock to the bolt threads and install the transmission support insulator through bolt.
    • Tighten to 175 Nm (129 lb-ft).
      G09708763

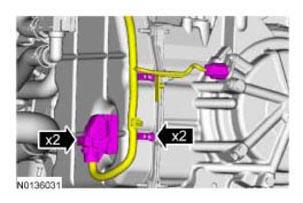

  8. Connect the transmission electrical connectors and the wiring harness retainers.
    G09708764

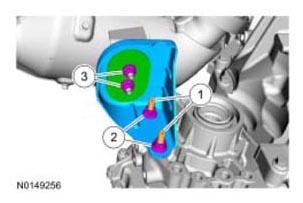

  9. Install the catalytic converter support bracket, the studs and the nuts.
    1. Tighten to 18 Nm (13 lb-ft).
    2. Tighten to 40 Nm (30 lb-ft).
    3. Tighten to 25 Nm (18 lb-ft).
      G09708765
  10. Install the transmission fluid cooler tube bolts.
    • Tighten to 9 Nm (80 lb-in).
      G09708766

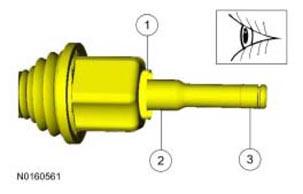

  11. Inspect the halfshaft for wear or damage and install a new halfshaft, if necessary.
    1. Inspect the differential seal surface.
    2. Inspect the halfshaft bushing surface. If this surface is damaged, inspect the halfshaft bushing for damage.
    3. Inspect the differential side gear splines.
      G09708767

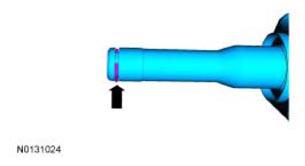

  12. NOTE: Make sure to install the correct circlip for this application. Failure to use the correct diameter circlip may result in shaft removal concerns or shaft damage during vehicle operation.

    Install the correct new circlip on the inboard stub shaft.

    G09708768
  13. NOTE: If the transmission has been replaced or overhauled, the halfshaft seals do not need to be replaced.

    If necessary, install a new LH halfshaft seal. Refer to, HALFSHAFT SEAL - LH .

  14. Install 205-461 on the LH halfshaft seal.
    G09708769

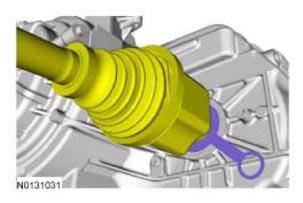

  15. NOTE: The sharp edges on the halfshaft splines can slice or puncture the oil seal. Use care when inserting the halfshaft into the transmission or damage to the seal may occur.

    Push the LH halfshaft into the transmission so the splines go through the special tool and remove the special tool.

    G09708770

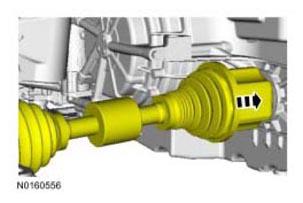

  16. Push the LH halfshaft into the transmission so the circlip locks into the differential side gear. Pull the halfshaft inner end to make sure the circlip is locked.
    G09708771

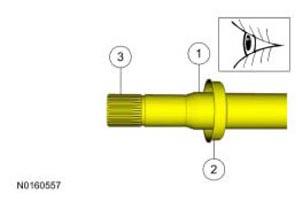

    1. Inspect the RH halfshaft seal surface.
    2. Inspect the dust shield.
    3. Inspect the differential side gear splines.
      G09708772
  18. NOTE: If the transmission has been replaced or overhauled, the halfshaft seals do not need to be replaced.

    If necessary, install a new RH halfshaft seal. Refer to, HALFSHAFT SEAL - RH .

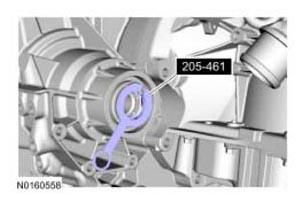

  19. Install 205-461 on the RH halfshaft seal.
    G09708773

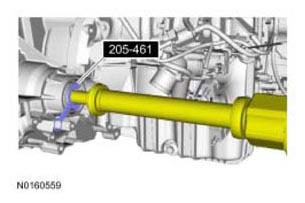

  20. Push the RH halfshaft into the transmission so the splines go through the special tool and remove the special tool.
    G09708774

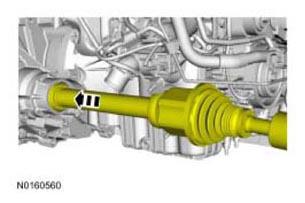

  21. Install the RH halfshaft assembly.
    G09708775

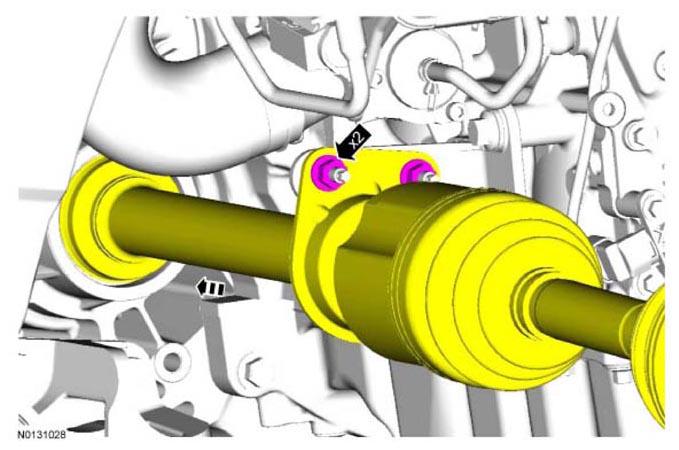

  22. Install the halfshaft bracket nuts.
    • Tighten to 25 Nm (18 lb-ft).
      G09708776
  23. Install the subframe. Refer to UNI-BODY, SUBFRAME AND MOUNTING SYSTEM .

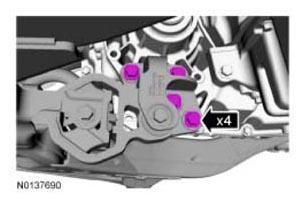

  24. Install the roll restrictor bracket and the roll restrictor bracket bolts.
    • Tighten to 90 Nm (66 lb-ft).
      G09708777

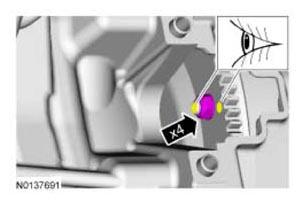

  25. NOTE: Only rotate the engine in a clockwise direction or engine damage will occur.

    Install new torque converter nuts.

    • Tighten to 40 Nm (30 lb-ft).
      G09708778

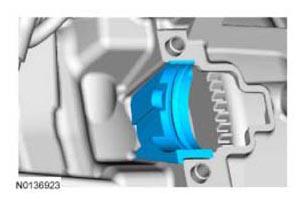

  26. Install the starter insulator.
    G09708779
  27. Install the starter. Refer to STARTING SYSTEM .

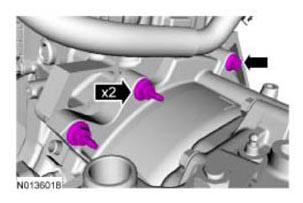

  28. Install the upper transmission-to-engine bolts.
    • Tighten to 48 Nm (35 lb-ft).
      G09708780

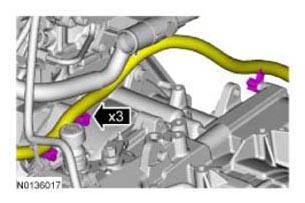

  29. Connect the wiring retainers.
    G09708781

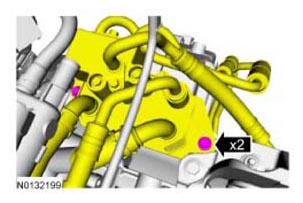

  30. Install the transmission fluid cooler warmer and the bolts.
    • Tighten to 30 Nm (22 lb-ft).
      G09708782
  31. If removed, inspect the transmission mounted transmission fluid cooler tube backing rings and seals for damage and install new backing rings or seals if necessary. Lubricate the transmission mounted transmission fluid cooler tube seals with automatic transmission fluid and install the backing rings and seals on the transmission mounted transmission fluid cooler tubes.
    1. Seal
    2. Backing ring
      G09708783
  32. Install the new transmission fluid cooler tube bolts.
    • Tighten to 9 Nm (80 lb-in).
      G09708784
  33. Install the temperature control valve, the nuts and the retainer.
    • Tighten to 9 Nm (80 lb-in).
      G09708785

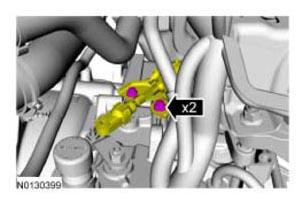

  34. Install the selector lever cable bracket and the bolts.
    • Tighten to 25 Nm (18 lb-ft).
      G09708786
  35. Install the battery tray and battery. Refer to BATTERY, MOUNTING AND CABLES .
  36. Adjust the selector lever cable. Refer to AUTOMATIC TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS .
  37. Install the ACL  and the outlet pipe. Refer to INTAKE AIR DISTRIBUTION AND FILTERING .
  38. Fill the transmission with transmission fluid. Refer to TRANSMISSION FLUID DRAIN AND REFILL .
  39. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure.
  40. If a new solenoid body is installed, the solenoid body strategy must be updated. Refer to SOLENOID BODY STRATEGY DOWNLOAD .
