Main Control Valve Body: Installation

  1. New separator plate.
    • Tighten to 10 Nm (89 lb-in).
      G09708667
    • Tighten to 10 Nm (89 lb-in).
      G09708668
  3. Align the new separator plate on the stud and the guide pin.
    G09708669

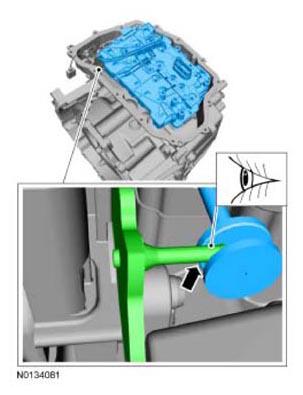

  4. NOTE: Be sure that the manual pin (part of the TR  sensor) is correctly installed in the manual valve.
    G09708670
  5. Nut hand-tight.
    G09708671
  6. Short bolts hand-tight.
    G09708672
  7. Long bolts hand-tight.
    G09708673
  8. Tighten in a crisscross pattern.
    • Tighten to 10 Nm (89 lb-in).
      G09708674

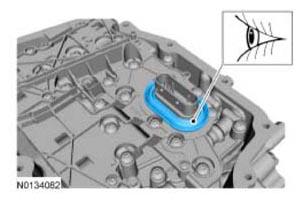

  9. NOTE: Be sure the main control-to-cover seal is installed with the holes facing up.
    G09708675
  10. G09708676
  11. G09708677
  12. Install the main control cover. Refer to MAIN CONTROL COVER .
  13. NOTE: The solenoid body strategy data file and solenoid body identification must be updated anytime a new solenoid body is installed. A new solenoid body service tag must be installed over the current solenoid body service tag on top of the transmission case.

    Refer to SOLENOID BODY STRATEGY DOWNLOAD .
