Main Control Cover: Removal
- With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
- Remove the ACL assembly. Refer to INTAKE AIR DISTRIBUTION AND FILTERING .

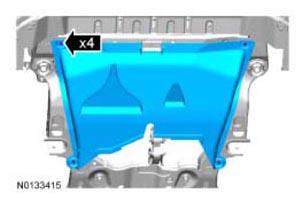

- Remove the retainers and the engine undershield.

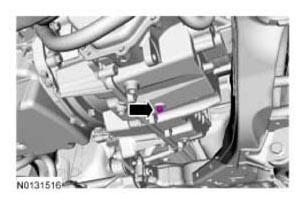

- Remove the transmission fluid drain plug and allow the transmission fluid to drain. Install the drain plug.
- Remove the nuts the retainer and position aside the temperature control valve.

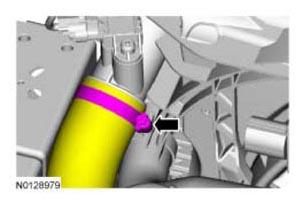

- Loosen the clamp and disconnect the CAC
outlet tube and position it aside.

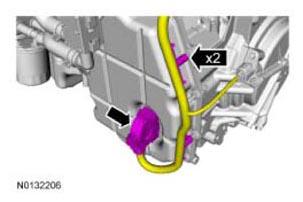

- Disconnect the transmission main electrical connector and the wiring retainers.
-
NOTE: Note the location of the studbolts for assembly.

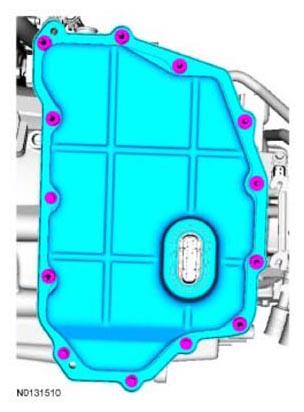

Remove the main control cover bolts and the main control cover.
