Disassembled Views

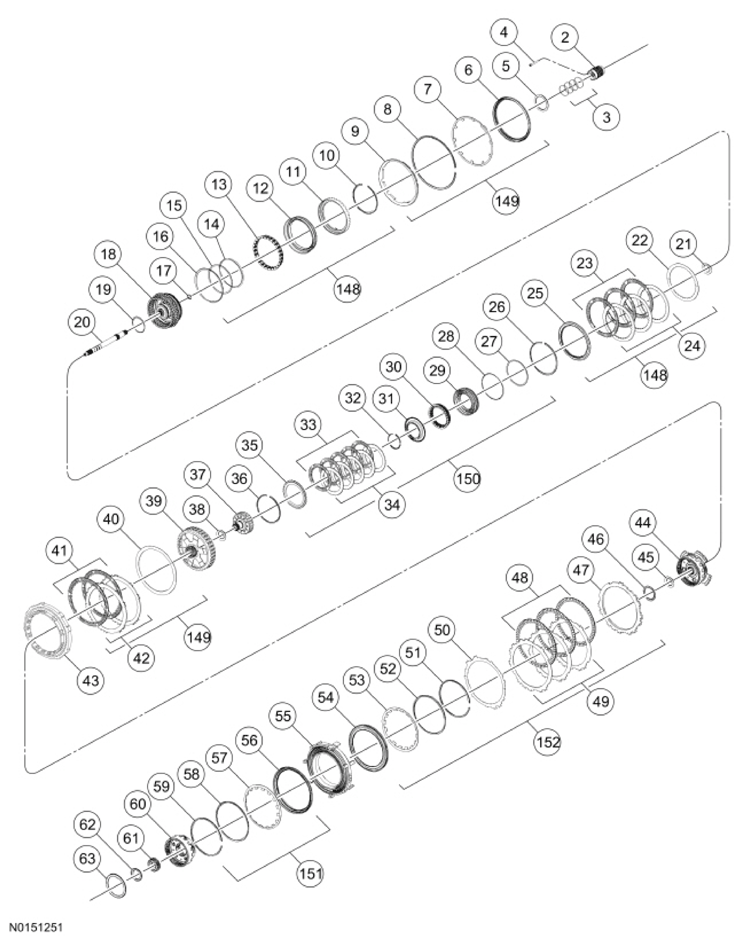

Fig 1: Disassembled Views Of Transaxle (1 Of 3)
G09708851Courtesy of FORD MOTOR CO.

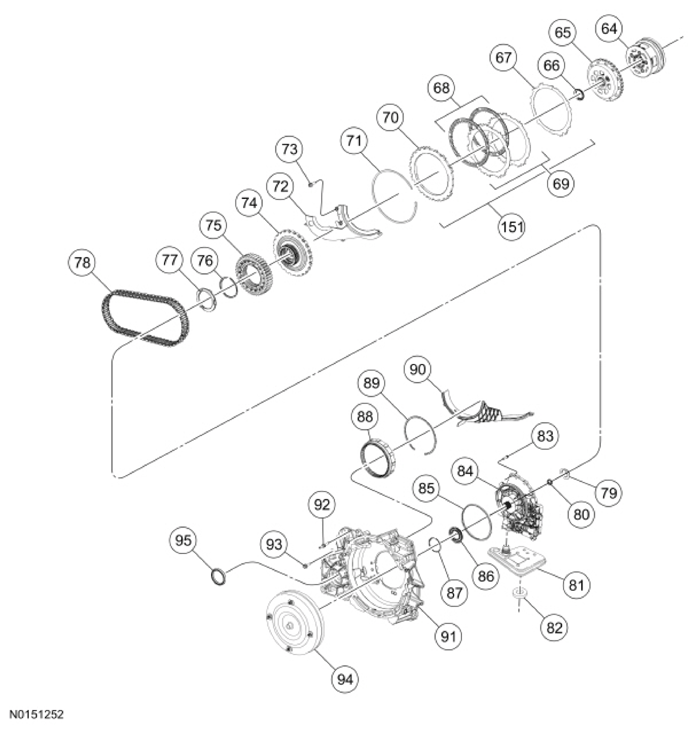

Fig 2: Disassembled Views Of Transaxle (2 Of 3)
G09708852Courtesy of FORD MOTOR CO.

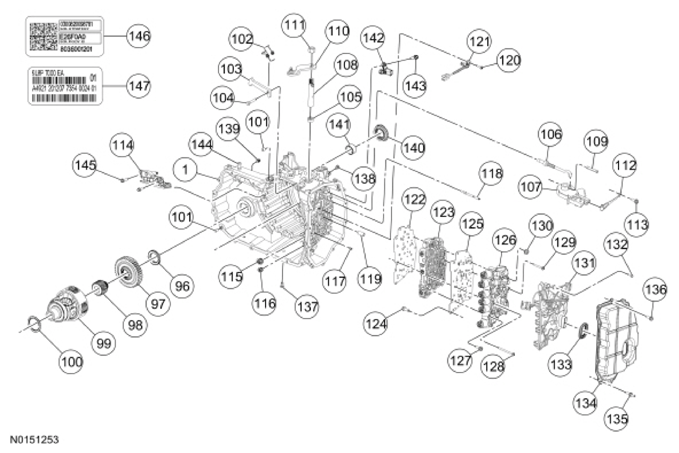

Fig 3: Disassembled Views Of Transaxle (3 Of 3)
G09708853Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7005 transaxle case
2 7A130 Clutch support tower
3 7D019 Clutch support tower seals (4 required)
4 W302855 Clutch support tower bolt (3 required)
5 7F242 No. 1 thrust bearing
6 7E005 Intermediate (2, 6) clutch piston
7 7B070 Intermediate (2, 6) clutch piston return spring
8 7D483 Intermediate (2, 6) clutch return spring snap ring
9 7E005 Intermediate (2, 6) clutch apply ring
10 7C122 Direct (3, 5, R) clutch cylinder snap ring
11 7F283 Direct (3, 5, R) clutch cylinder
12 7A262 Direct (3, 5, R) clutch piston
13 7F235 Direct (3, 5, R) clutch piston return spring
14 7C099 Direct (3, 5, R) clutch piston inner (rear) seal
15 7C099 Direct (3, 5, R) clutch piston inner (front) seal
16 7A548 Direct (3, 5, R) clutch piston outer seal
17 7C122 Input shaft snap ring
18 7G384 Direct (3, 5, R)/overdrive (4, 5, 6) clutch cylinder and hub assembly
19 7A548 Overdrive (4, 5, 6) clutch piston inner seal
20 7F213 Input shaft
21 7D234 No. 2 thrust bearing
22 7B070 Direct (3, 5, R) clutch wave spring
23 7B164 Direct (3, 5, R) clutch friction plates (3 required)
24 7B442 Direct (3, 5, R) clutch steel plates (3 required)
25 7B066 Direct (3, 5, R) clutch pressure plate
26 7D483 Direct (3, 5, R) clutch snap ring
27 7A548 Overdrive (4, 5, 6) clutch piston outer (rear) seal
28 7A548 Overdrive (4, 5, 6) clutch piston outer (front) seal
29 7A262 Overdrive (4, 5, 6) clutch piston
30 7F222 Overdrive (4, 5, 6) clutch piston return spring
31 7H360 Overdrive (4, 5, 6) clutch balance piston
32 7C122 Overdrive (4, 5, 6) clutch piston snap ring
33 7B164 Overdrive (4, 5, 6) clutch friction plates (5 required)
34 7B442 Overdrive (4, 5, 6) clutch steel plates (5 required)
35 7B066 Overdrive (4, 5, 6) clutch pressure plate
36 7D483 Overdrive (4, 5, 6) clutch snap ring
37 7H351 Overdrive (4, 5, 6) clutch hub
38 7D234 No. 3 thrust bearing
39 7A019 Rear planetary sun gear and shell assembly
40 7E085 Intermediate (2, 6) clutch wave spring
41 7B164 Intermediate (2, 6) clutch friction plates (2 required)
42 7B442 Intermediate (2, 6) clutch steel plates (2 required)
43 7A089 OWC
44 7D491 Rear planet carrier/center ring gear
45 7C096 No. 6 thrust bearing
46 7G177 No. 5 thrust bearing
47 7B066 Low/reverse clutch pressure plate
48 7B164 Low/reverse clutch friction plates (3 required)
49 7B442 Low/reverse clutch steel plates (3 required)
50 7E085 Low/reverse clutch wave spring
51 7C122 Low/reverse clutch piston snap ring
52 7H318 Low/reverse clutch piston snap ring retainer
53 7B070 Low/reverse clutch piston return spring
54 7D402 Low/reverse clutch piston
55 7L328 Center support
56 7A262 Forward (1, 2, 3, 4) clutch piston
57 7B070 Forward (1, 2, 3, 4) clutch piston return spring
58 7D041 Forward (1, 2, 3, 4) clutch piston snap ring retainer
59 7H365 Forward (1, 2, 3, 4) clutch piston snap ring
60 7D491 Center planetary carrier/front ring gear
61 7D063 Center planetary sun gear
62 7C096 No. 7 thrust bearing
63 7C096 No. 8 thrust bearing
64 7D491 Front planetary carrier/rear ring gear
65 7A019 Front planetary sun gear and shell assembly
66 7D234 No. 10 thrust bearing
67 7B070 Forward (1, 2, 3, 4) clutch wave spring
68 7B164 Forward (1, 2, 3, 4) clutch friction plates (2 required)
69 7B442 Forward (1, 2, 3, 4) clutch steel plates (2 required)
70 7B066 Forward (1, 2, 3, 4) clutch pressure plate
71 7D483 Forward (1, 2, 3, 4) clutch snap ring
72 7978 Transmission fluid baffle
73 W500214 Transmission fluid baffle bolt (2 required)
74 7060 Park gear
75 7G132 Drive chain drive sprocket
76 7C122 Drive sprocket snap ring
77 7G099 No. 13 thrust washer
78 7G249 Drive chain
79 7D234 No. 11 thrust bearing
80 7048 Input shaft seal
81 7A098 Transmission fluid filter
82 7L027 Magnet
83 W302860 Pump-to-torque converter housing bolt (8 required)
84 7A103 Pump assembly
85 7A248 Pump assembly-to-torque converter housing O-ring seal
86 7A248 Torque converter hub seal
87 7P113 Torque converter hub seal retainer
88 7F343 Different ring gear
89 7C122 Differential ring gear snap ring
90 7H245 Differential transmission fluid baffle
91 7975 Torque converter housing
92 W701606 Torque converter housing stud bolt
93 7A443 Torque converter housing bolt (16 required)
94 7902 Torque converter
95 1177 RH halfshaft seal
96 7G355 No. 12 thrust bearing
97 7G132 Drive chain driven sprocket
98 7F342 Differential sun gear
99 7F465 Differential assembly
100 7G112 No. 15 thrust bearing
101 7B362 Torque converter housing-to-transaxle case guide pins
102 7D070 Park pawl spring
103 7A441 Park pawl
104 7D071 Park pawl pin
105 7F337 Manual control shaft seal
106 7A232 Park pawl actuator rod
107 7H557 TR  sensor
108 7C493 Manual control shaft
109 7G100 Manual control shaft pin
110 7A256 Manual control lever
111 W708455 Manual control lever nut
112 7E332 Manual valve detent spring
113 W711235 TR  sensor detent spring bolt
114 7J387 Fluid reservoir
115 7A248 Clutch feed seal (large)
116 7A248 Clutch feed seal (small) (4 required)
117 7B431 Main control alignment pin
118 7C207 Main control stud
119 7G199 Main control-to-transaxle case seal (2 required)
120 W713644 OSS  sensor bolt
121 7H103 OSS  sensor
122 7Z490 Main control-to-transaxle case separator plate
123 7A100 Main control valve body
124 N605770 Separator plate-to-solenoid body bolt (2 required)
125 7Z490 Main control valve body-to-solenoid body separator plate
126 7G391 Solenoid body
127 W500303 Solenoid body-to-valve body bolt (2 required)
128 W302863 Main control-to-transaxle case bolt (long) (10 required)
129 W302862 Main control-to-transaxle case bolt (short) (12 required)
130 W520412 Main control nut
131 7G276 Main control leadframe
132 W505513 Main control leadframe screw (5 required)
133 7B329 Main control-to-cover seal
134 7G004 Main control cover
135 W714629 Main control cover stud bolt (5 required)
136 W500214 Main control cover bolt (8 required)
137 7010 Drain plug
138 7H398 Line pressure tap
139 - Oil leveling plug
140 1177 LH halfshaft seal
141 7025 LH halfshaft bushing
142 7M101 TSS  sensor
143 W500214 TSS  sensor bolt
144 7A246 Vent tube
145 W500214 Fluid reservoir bolts
146 7G342 Solenoid body strategy tag
147 7B148 transaxle service identification tag
148 - Direct clutch (3, 5, R)
149 - Intermediate clutch (2, 6)
150 - Overdrive clutch (4, 5, 6)
151 - Forward clutch (1, 2, 3, 4)
152 - Low/reverse clutch
  1. Install the special tool.
    G09708854

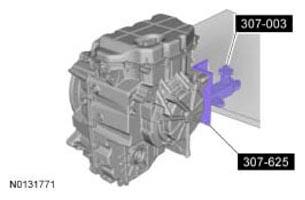

  2. Mount the transaxle to the bench-mounted holding fixture.
    G09708855

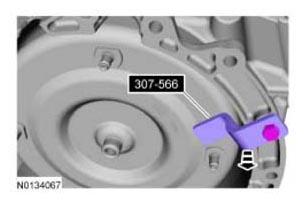

  3. Remove the special tool.
    G09708856
  4. NOTE: The torque converter is heavy. Be careful not to drop it or damage will result.

    Using the special tools, remove the torque converter from the transaxle.

    G09708857
    1. Inspect the sealing surface for a groove worn from the seal. Install a new torque converter if necessary.
    2. A new or remanufactured torque converter must be installed if one or more of the following statements is true:
      • A torque converter malfunction has been determined based on complete diagnostic procedures.
      • The torque converter stud or studs, impeller hub or bushing are damaged.
      • The torque converter exhibits external discoloration (due to overheating).
      • There is evidence of transaxle assembly or fluid contamination due to the following transaxle or converter failure modes.
        • Major metallic failure
        • Multiple clutch plates or band failures
        • Sufficient component wear which results in metallic contamination
        • Water or antifreeze contamination
    3. If none of the above conditions are present, continue with the following fluid inspection.

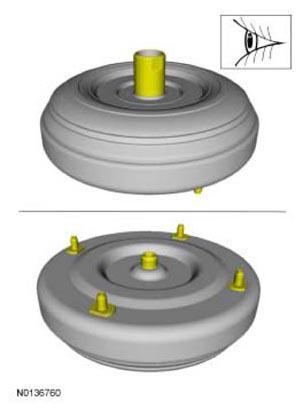

    4. Pour a small amount of transmission fluid from the torque converter onto an absorbent white tissue or through a paper filter.
    5. Examine the fluid for contaminants. The fluid must be free of metallic contaminants.
      G09708858

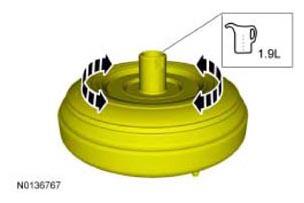

  6. NOTE: Do not use water-based cleaners or mineral spirits to clean or flush the torque converter or transaxle damage will occur.

    Drain the remaining fluid from the torque converter. Apply the specified amount of automatic transmission fluid.

    • Agitate by hand.
    • Thoroughly drain the fluid.
      G09708859
  7. NOTE: Note the location of the stud bolts for assembly.

    Remove the main control cover bolts and the main control cover.

    G09708860

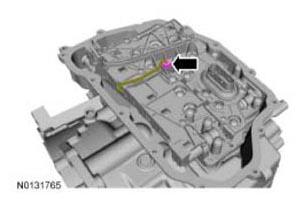

  8. Disconnect the OSS  sensor electrical connector.
    G09708861
  9. Disconnect the TR  sensor electrical connector.
    G09708862

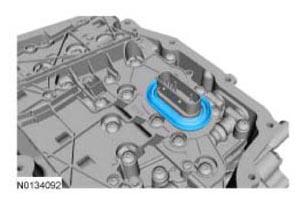

  10. Remove the main control-to-cover seal.
    G09708863
  11. NOTE: Note the location of the short and long main control-to-transaxle case bolts for reassembly.

    Remove the main control nut and the main control-to-transaxle case bolts and remove the main control assembly.

    G09708864

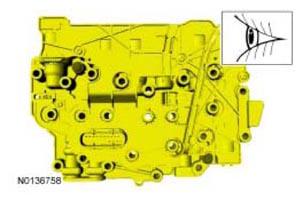

  12. Clean and inspect the main control assembly for damage. If damage is found install a new main control assembly. If the main control assembly is not damaged, disassemble the main control assembly and clean it. Refer to MAIN CONTROL - OVERHAUL .
    G09708865
  13. Remove and discard the main control-to-transaxle case separator plate.
    G09708866

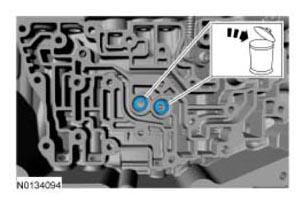

  14. Remove and discard the forward (1, 2, 3, 4) clutch and low/reverse clutch main control-to-transaxle case seals.
    G09708867

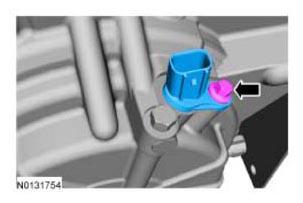

  15. Remove the TSS  sensor bolt and the TSS  sensor.
    G09708868

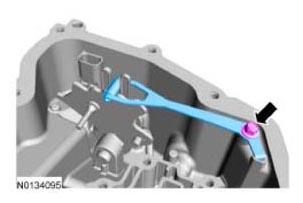

  16. Remove the TR  sensor detent spring bolt and the TR  sensor detent spring.
    G09708869

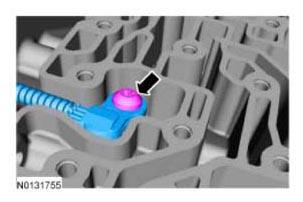

  17. Remove the OSS  sensor bolt and the OSS  sensor.
    G09708870
  18. NOTE: Note the location of the stud bolts for assembly.

    Remove the torque converter housing bolts.

    G09708871

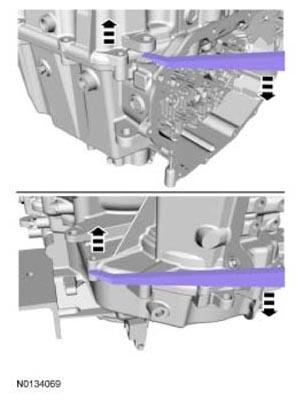

  19. Pry the torque converter housing loose from the transaxle case.
    G09708872
  20. Remove the torque converter housing from the transaxle case.
    G09708873

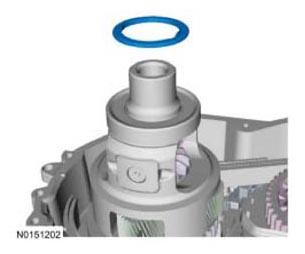

  21. Remove the No. 15 differential thrust bearing.
    G09708874

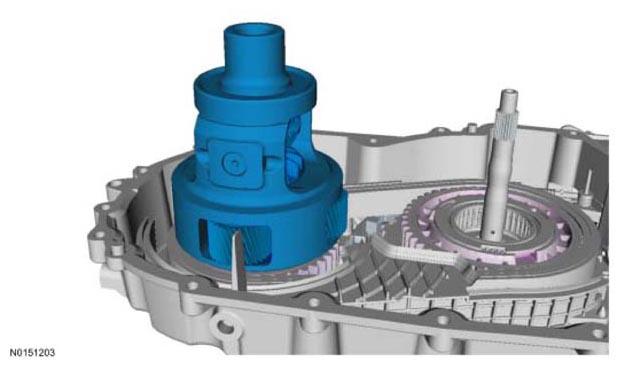

  22. Remove the differential assembly.
    G09708875

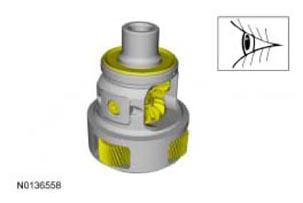

  23. Check that bearings spin freely and do not move back and forth or side to side excessively. Check for damage or excessive wear. Install new components, if necessary. Refer to DIFFERENTIAL GEAR ASSEMBLY .
    G09708876

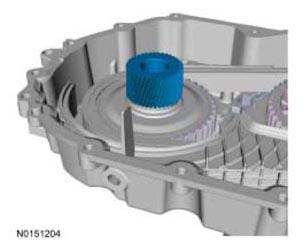

  24. Remove the differential sun gear.
    G09708877

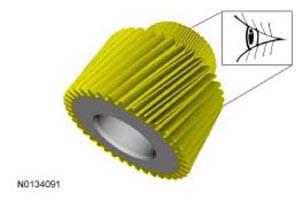

  25. Inspect the differential sun gear for damage or wear and install new, as necessary.
    G09708878

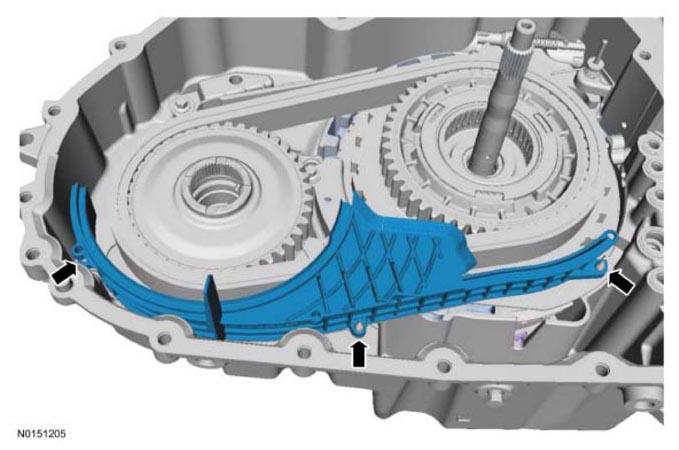

  26. NOTE: If the transmission plastic baffle has melted due to overheat condition the cooler must be replaced, the plastic cannot be cleaned out of a cooler even with the heated cooler flusher.

    Remove the differential transmission fluid baffle.

    G09708879

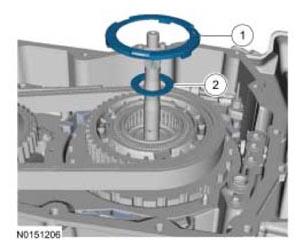

    1. Remove the No. 13 thrust washer.
    2. Remove the No. 11 drive sprocket thrust bearing.
      G09708880

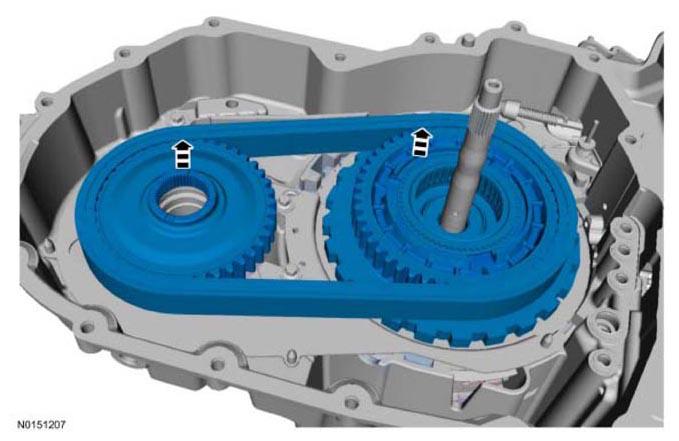

  28. Simultaneously remove the drive and driven sprockets and the chain.
    G09708881
  29. Remove the drive chain from the drive and driven sprockets.
    G09708882

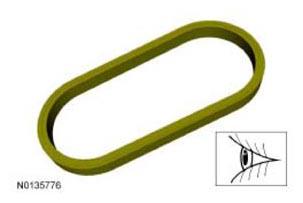

  30. Clean and inspect the drive chain for damage or excessive wear and install new, if necessary.
    • Check for stretching or tightness of the chain links.
    • Check that the chain moves freely.
      G09708883

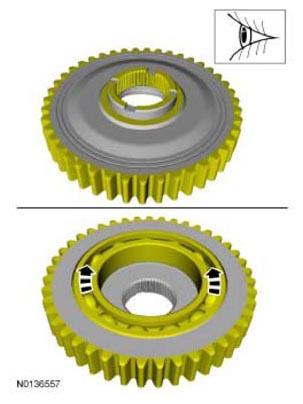

  31. Inspect the driven sprocket for damage or excessive wear and install new, if necessary.
    • Chain teeth
    • Spline teeth
    • Thrust bearing surfaces
    • Bearing
      G09708884
  32. Remove the snap ring and remove the drive sprocket from the front planetary hub/park gear assembly.
    G09708885

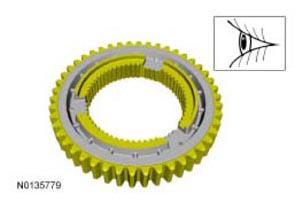

  33. Inspect the drive sprocket for damage or excessive wear and install new, if necessary.
    • Chain teeth
    • Spline teeth
    • Thrust washer surface
      G09708886

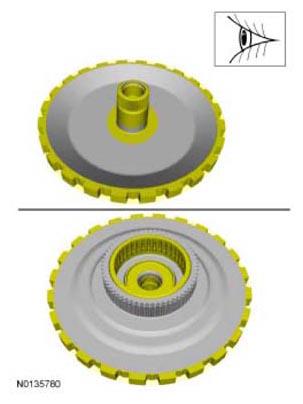

  34. Inspect the front planetary hub/park gear assembly for damage or excessive wear and install new, if necessary.
    • Park gear teeth
    • Spline teeth
    • Thrust washer surface
    • Thrust bearing surface
    • Bearing surfaces
    • Needle bearing
      G09708887
  35. Install the drive sprocket on the front planetary hub/park gear assembly and install the snap ring.
    G09708888
  36. Install the drive chain on the drive and driven sprockets.
    G09708889

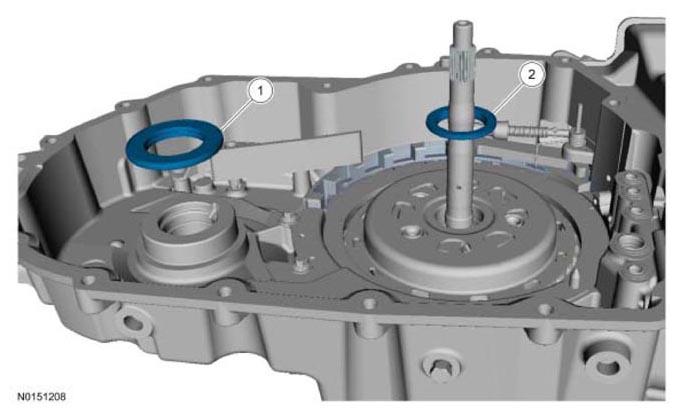

    1. Remove the No. 12 driven sprocket thrust bearing.
    2. Remove the No. 10 front sun gear and shell assembly thrust bearing.
      G09708890

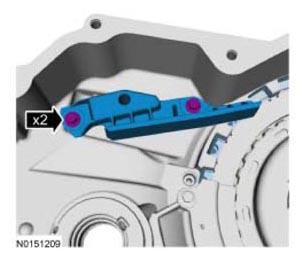

  38. Remove the fluid reservoir bolts and the fluid reservoir.
    G09708891

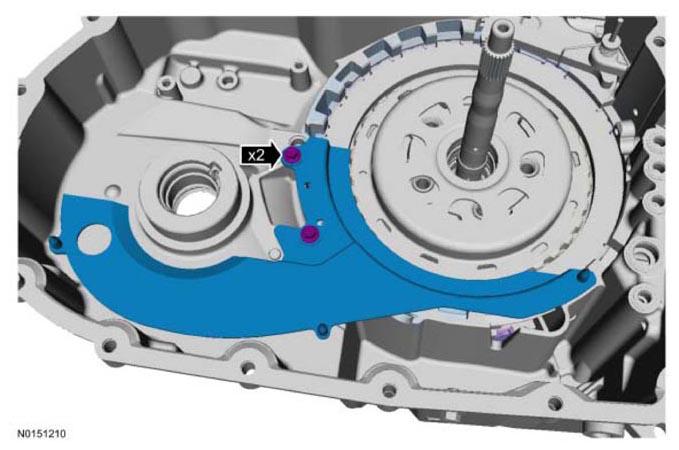

  39. Remove the transmission fluid baffle bolts and the transmission fluid baffle.
    G09708892
  40. Remove the park pawl pin and spring.
    G09708893

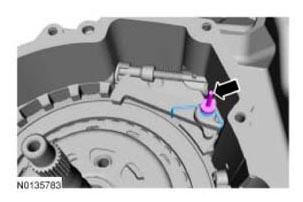

  41. Remove the park pawl.
    G09708894

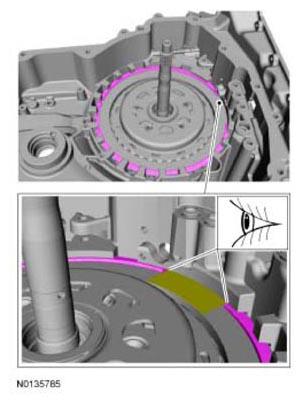

  42. NOTE: The forward (1, 2, 3, 4) clutch snap ring is beveled. The beveled side of the snap ring goes up (flat side down).
    NOTE: The forward (1, 2, 3, 4) clutch snap ring gap faces the front of the transaxle.

    Remove the forward (1, 2, 3, 4) clutch snap ring.

    G09708895
  43. Remove the forward (1, 2, 3, 4) clutch pressure plate, clutch assembly and wave spring.
    G09708896

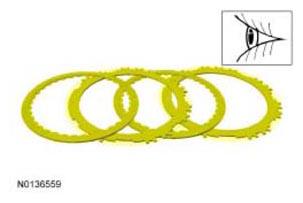

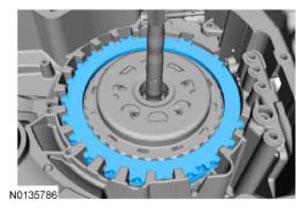

  44. Inspect the clutch plate and pressure plate surfaces for damage or excessive wear.
    G09708897

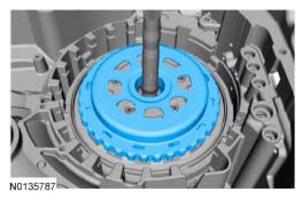

  45. Remove the front planetary sun gear and shell assembly.
    G09708898

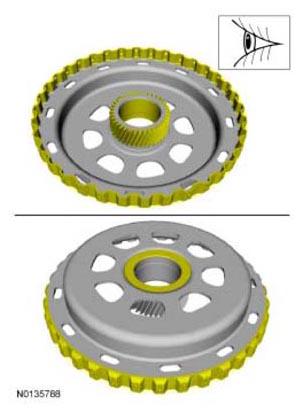

  46. Clean and inspect the front planetary sun gear and shell assembly for damage or wear and install new, as necessary.
    • Gear teeth
    • Shell-to-clutch pack surfaces
    • Thrust bearing surfaces
      G09708899

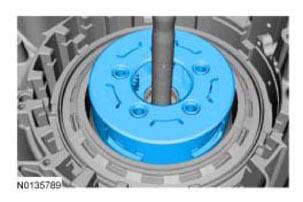

  47. Remove the front planetary carrier/rear ring gear assembly.
    G09708900

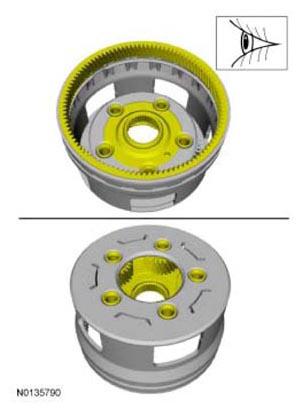

  48. Clean and inspect the front planetary carrier/rear ring gear assembly for damage or excessive wear and install new, as necessary.
    • Pinion gear teeth
    • Pinion gear surfaces
    • Pinion gear bearings
    • Spline teeth
    • Thrust bearing
    • Thrust bearing surfaces
    • Ring gear teeth
      G09708901

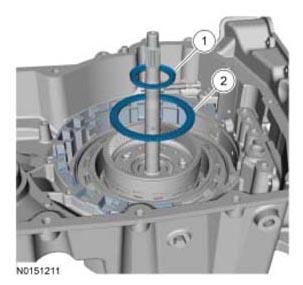

    1. Remove the No. 7 thrust bearing.
    2. Remove the No. 8 thrust bearing.
      G09708902

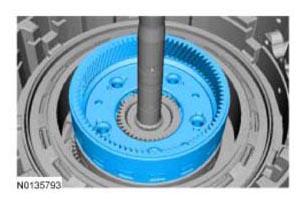

  50. Remove the center planetary carrier/front ring gear assembly.
    G09708903
  51. Clean and inspect the center planetary carrier/front ring gear assembly for damage or excessive wear and install new, as necessary.
    • Pinion gear teeth
    • Pinion gear surfaces
    • Pinion gear bearings
    • Spline teeth
    • Thrust bearing surfaces
    • Ring gear teeth
      G09708904

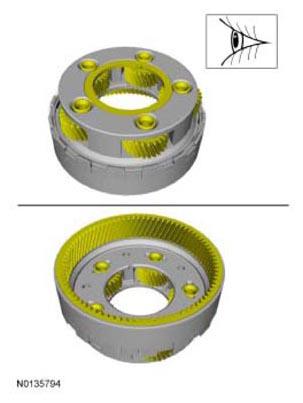

  52. Remove the center planetary sun gear.
    G09708905

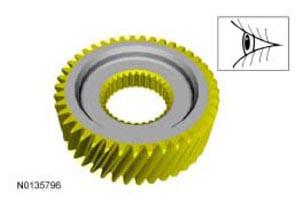

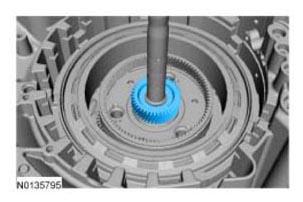

  53. Clean and inspect the center planetary sun gear for damage or excessive wear and install new, as necessary.
    • Sun gear teeth
    • Spline teeth
      G09708906

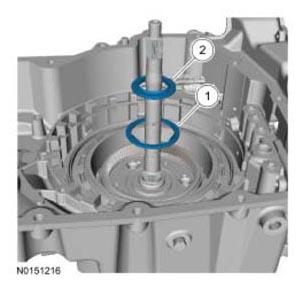

    1. Remove the No. 5 thrust bearing.
    2. Remove the No. 6 thrust bearing.
      G09708907

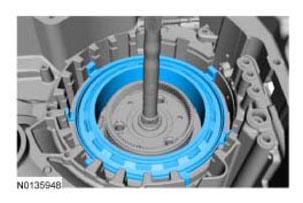

  55. Remove the center support assembly.
    G09708908
  56. Remove the rear planetary carrier/center ring gear assembly.
    G09708909

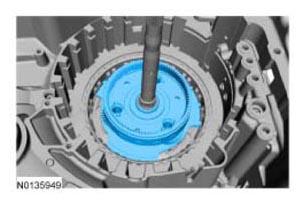

  57. Clean and inspect the rear planetary carrier/center ring gear assembly for damage or excessive wear and install new, as necessary.
    • Pinion gear teeth
    • Pinion gear surfaces
    • Pinion gear bearings
    • Spline teeth
    • Thrust bearing surfaces
    • Thrust bearing
      G09708910

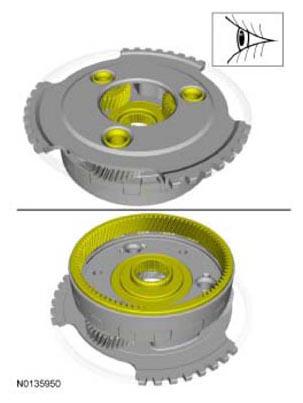

  58. Remove the low/reverse wave spring, clutch pack and pressure plate.
    G09708911

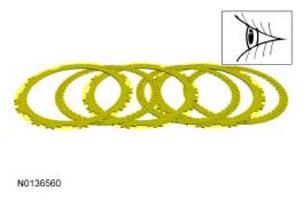

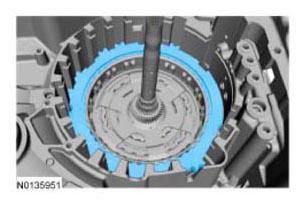

  59. Inspect the low/reverse clutch pack and pressure plate surface for damage or excessive wear and install new, if necessary.
    G09708912
  60. Remove the low OWC  .
    G09708913
  61. NOTE: Do not clean in water or with water-based solvents. Damage to the component may occur.
    NOTE: The low OWC  should not be disassembled.

    Clean and inspect the low OWC  for cracks and damaged splines. The internal splined section should rotate clockwise and lock when rotated counterclockwise. If any damage is found or the clutch does not rotate or lock, install a new low OWC  .

    G09708914

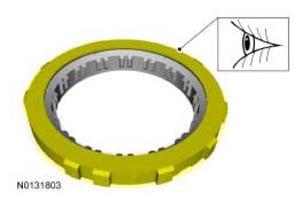

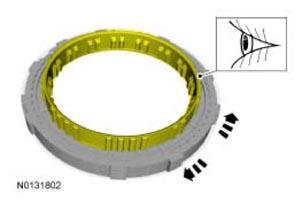

  62. Inspect the intermediate (2, 6) clutch surface for damage. If the surface is burned or worn excessively, install a new low OWC  .
    G09708915
  63. NOTE: The intermediate (2, 6) clutch is removed with the rear planetary sun gear and shell assembly.

    Remove the rear planetary sun gear and shell assembly and remove the intermediate (2, 6) clutch from the assembly.

    G09708916

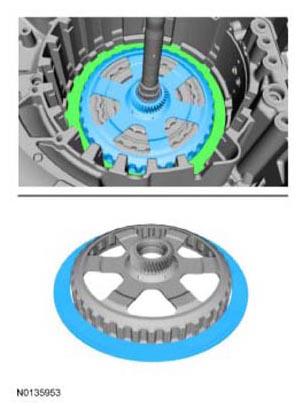

  64. Inspect the intermediate (2, 6) clutch surface for damage or excessive wear and install new, if necessary.
    G09708917

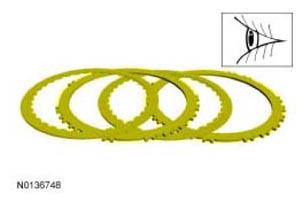

  65. Clean and inspect the rear planetary sun gear and shell assembly for damage or wear and install new, if necessary.
    • Sun gear teeth
    • Shell-to-clutch pack surfaces
    • Bearing surfaces
      G09708918

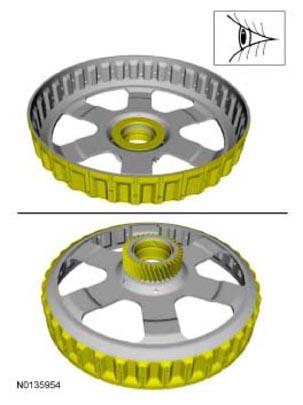

  66. Remove the pressure plate and the wave spring.
    G09708919

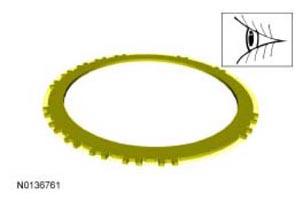

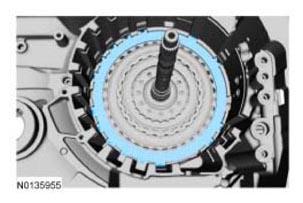

  67. Inspect the pressure plate surface for damage or excessive wear and install new, if necessary.
    G09708920
  68. Remove the No. 3 thrust bearing.
    G09708921

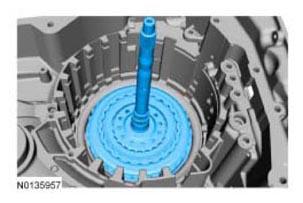

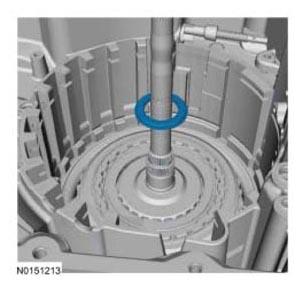

  69. Remove the overdrive/direct clutch assembly.
    G09708922

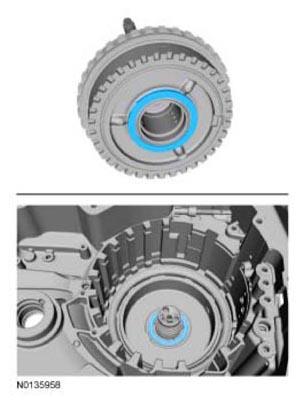

  70. NOTE: If the No. 1 thrust bearing is stuck to the overdrive/direct clutch assembly, remove the No. 1 thrust bearing from the overdrive/direct clutch assembly.

    Remove the No. 1 thrust bearing.

    G09708923

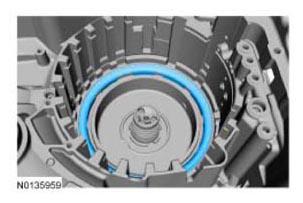

  71. Remove the intermediate (2, 6) clutch apply ring.
    G09708924
  72. Remove the clutch support tower bolts and the clutch support tower.
    G09708925

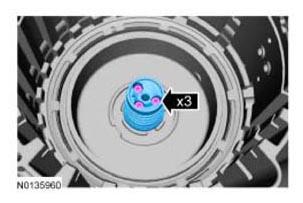

  73. NOTE: Note the location of the snap ring gap for assembly.

    Remove the intermediate (2, 6) clutch return spring snap ring.

    G09708926

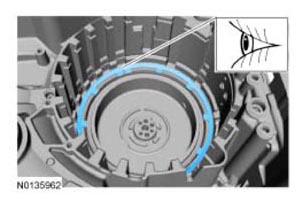

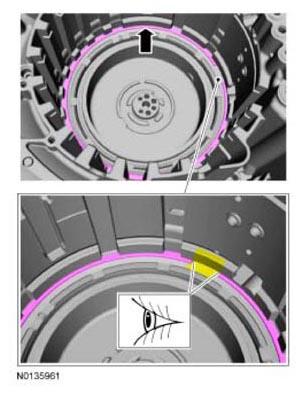

  74. NOTE: Note the position of the return spring for assembly.

    Remove the intermediate (2, 6) clutch return spring.

    G09708927
  75. NOTE: Note the position of the intermediate clutch piston for assembly.

    Remove the intermediate (2, 6) clutch piston.

    G09708928

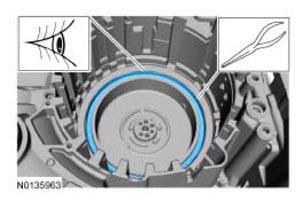

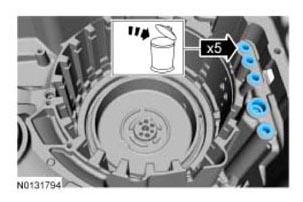

  76. Remove and discard the clutch feed seals.
    G09708929

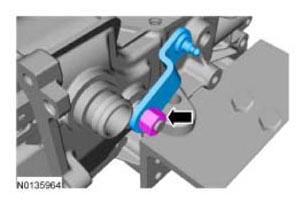

  77. Remove the manual control lever nut and the manual control lever from the manual control shaft.
    G09708930
  78. NOTE: Do not drive the manual control shaft pin through the manual control shaft. The manual control shaft pin will contact the transaxle case causing damage to the transaxle case.

    Using the special tool, pull the manual control shaft pin out of the manual control shaft.

    G09708931
  79. Remove the manual control shaft.
    G09708932

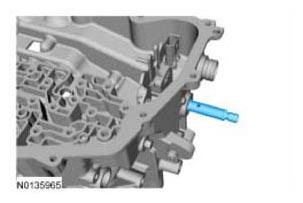

  80. Remove the TR  sensor and the park pawl actuator rod and remove the park pawl actuator rod from the TR  sensor.
    G09708933

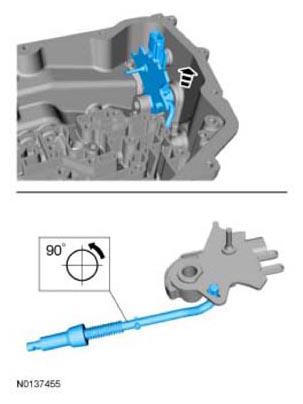

  81. Remove and discard the manual control shaft seal.
    G09708934

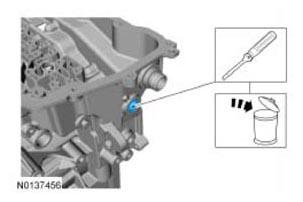

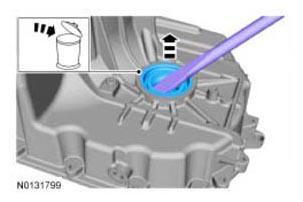

  82. Remove and discard the LH  halfshaft seal.
    G09708935
    • NOTE: If the LH  transaxle case bushing or the LH  halfshaft bushing surface shows signs of excessive wear or damage, a new LH  transaxle case bushing and a new LH  halfshaft must be installed, or excessive noise or transaxle failure can occur.

      Clean and inspect the LH  transaxle case bushing and the bushing surface on the LH  halfshaft for damage or excessive wear. If the LH  transaxle case bushing or the LH  halfshaft shows signs of excessive wear or damage, install new components. Refer to TRANSAXLE CASE .

    • NOTE: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.

      Make sure that the mating faces are clean and free of foreign material. Refer to RTV Sealing Surface Cleaning and Preparation in ENGINE SYSTEM - GENERAL INFORMATION .

      G09708936
  84. Remove the pump-to-torque converter housing bolts and the pump and filter assembly.
    G09708937

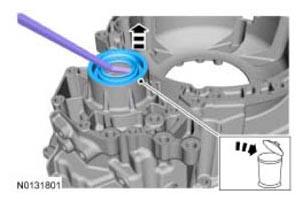

  85. Remove and discard the RH  halfshaft seal.
    G09708938

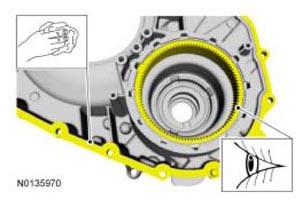

    • Inspect the torque converter housing and the differential ring gear for damage or excessive wear. If the differential ring gear shows signs of excessive wear or damage replace the differential ring gear. Refer to TRANSAXLE CASE .
    • NOTE: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.

      Make sure that the mating faces are clean and free of foreign material. Refer to RTV Sealing Surface Cleaning and Preparation in ENGINE SYSTEM - GENERAL INFORMATION .

      G09708939

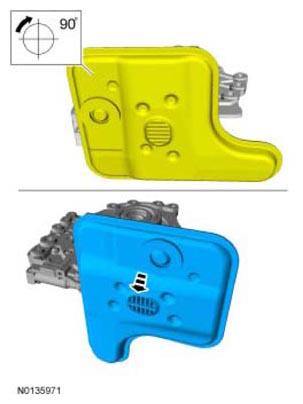

  87. NOTE: Note the orientation of the transmission fluid filter to the fluid pump assembly.

    Rotate the transmission fluid filter 90 degrees clockwise and pull the transmission fluid filter out of the pump assembly.

    G09708940

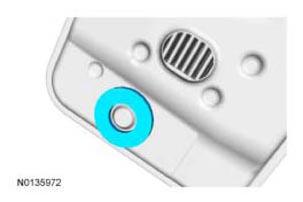

  88. Remove the magnet from the transmission fluid filter.
    G09708941
  89. Assemble the special tools and remove and discard the input shaft seal.
    G08412012
  90. Remove the pump assembly-to-torque converter housing O-ring seal.
    G08412013
  91. Remove the torque converter hub seal snap ring.
    G08412014

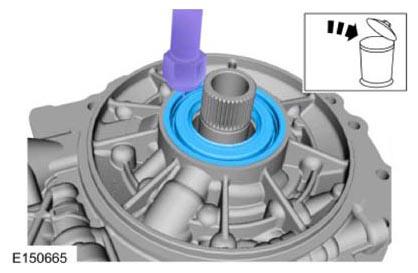

  92. Using a dent puller, remove the torque converter hub seal.
    G08636659
  93. Position the pump assembly in the torque converter housing and install 2 pump-to-torque converter housing bolts hand-tight.
    G08412016
  94. Loosen the pump bolts.
    G08412017
  95. Remove the pump-to-torque converter housing bolts and the pump assembly from the torque converter housing.
    G08412018
  96. Remove the pump bolts and separate the pump assembly halves.
    G09708949
  97. NOTE: The dot on the inner pump gear faces up.

    Remove the pump gears.

    G08412020
  98. Compress the main pressure regulator valve spring with a screwdriver and remove the retainer with a magnet.
    G08412021
  99. Install a M4 bolt in the valve and remove the main pressure regulator valve assembly.
    G08412022
  100. Compress the TCC  control valve spring with a screwdriver and remove the retainer with a magnet.
    G08412023
  101. Remove the TCC  control valve assembly.
    G08412024
  102. Clean and inspect the components of the pump assembly for wear or damage. Inspect the fluid drained from the pump assembly for excessive metal or foreign material. If excessive wear, damage or excessive metal is found, replace the pump assembly as an assembly.
  103. NOTE: TCC  control valve retainer shown assembled in the pump body, main pressure regulator valve retainer similar.

    Assemble the TCC  control valve assembly and main pressure regulator valve assembly and install the valves in the pump. Compress the valve springs with a screwdriver and install the retainers.

    G08412025
  104. NOTE: The dot on the inner pump gear faces up.

    Install the pump gears.

    G08412026
  105. Position the stator support on the pump housing and install the pump bolts hand-tight.
    G08412027
  106. Install the pump assembly in the torque converter housing and install 2 pump-to-torque converter housing bolts hand-tight.
    G08412016
  107. Tighten the pump bolts.
    • Tighten to 10 Nm (89 lb-in).
      G08412029
  108. Remove the pump-to-torque converter housing bolts and the pump assembly from the torque converter housing.
    G08412016
  109. Install a new torque converter hub seal on the special tool.
    G08412031
  110. Using the special tool, install a new torque converter hub seal.
    G08412032
  111. Install the torque converter hub seal snap ring.
    G08412014
  112. Install a new pump assembly-to-torque converter housing O-ring seal.
    G08412013
  113. Install a new input shaft seal on the special tool.
    G09375136

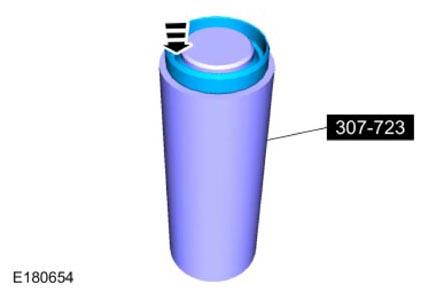

  114. Using the special tool, install the input shaft seal.
    G09375137

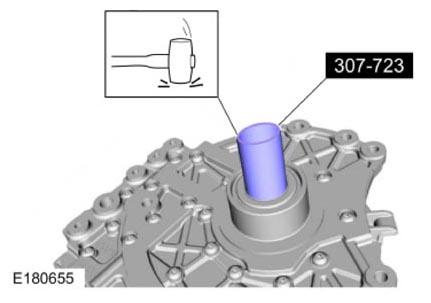

  115. Install a new O-ring on a new transmission fluid filter and lubricate it with transmission fluid.
    G08412037
  116. Install the magnet on the transmission fluid filter.
    G08412011
  117. Install the transmission fluid filter.
    1. Position the transmission fluid filter in the pump assembly.
    2. Rotate the transmission fluid filter counterclockwise 90 degrees.
      G08412039
  118. NOTE: The piston return spring, snap ring or snap ring retainer from the low/reverse clutch side of the center support are not interchangeable with the forward clutch side of the center support. When disassembling the center support, be careful not to mix the components from the low/reverse clutch side with the forward clutch side of the center support. Failure to assemble the center support with the components in the correct side will result in damage to the center support, low/reverse or forward clutch.
    NOTE: The low/reverse clutch piston in the center support is the side of the center support with the long legs.

    Using the special tool and a press, compress the low/reverse clutch return spring and remove the snap ring and the snap ring retainer.

    G08412040
  119. Remove the low/reverse clutch return spring.
    G08412041
  120. Apply 483 kPa (70 psi) of air pressure to the low/reverse clutch piston port and remove the low/reverse clutch piston.
    G08412042
  121. NOTE: The forward clutch piston in the center support is the side of the center support with the short legs.

    Using the special tool and a press, compress the forward (1, 2, 3, 4) clutch return spring and remove the snap ring and the snap ring retainer.

    G08412043
  122. Remove the return spring from the forward (1, 2, 3, 4) clutch piston.
    G08412044
  123. Apply 483 kPa (70 psi) of air pressure to the forward (1, 2, 3, 4) clutch piston port and remove the forward (1, 2, 3, 4) clutch piston.
    G08412045
  124. Clean and inspect the center support for damage. Install a new center support if necessary.
    G08412046
  125. NOTE: The forward clutch piston in the center support is the side of the center support with the short legs.

    Install the special tools on the forward clutch piston side of the center support.

    G08412047
  126. Lubricate the sealing surfaces of the forward (1, 2, 3, 4) clutch piston with petroleum jelly.
    G08412048
  127. Position the forward (1, 2, 3, 4) clutch piston on the special tools and push it down into the center support.
    G08412049
  128. NOTE: The piston return spring, snap ring or snap ring retainer from the low/reverse clutch side of the center support are not interchangeable with the forward clutch side of the center support. When assembling the center support, be careful not to mix the components from the low/reverse clutch side with the forward clutch side of the center support. Failure to assemble the center support with the components in the correct side will result in damage to the center support, low/reverse or forward clutch.

    Install the forward (1, 2, 3, 4) clutch piston return spring.

    G08412044
  129. Using the special tools and a press, compress the forward (1, 2, 3, 4) clutch return spring and install the snap ring retainer and the snap ring.
    G08412043
  130. Inspect the snap ring to be sure it is seated in the groove on the center support.
    G08412052
  131. Turn the center support over and install the special tools on the low/reverse piston side of the center support.
    G08412053
  132. Lubricate the sealing surfaces of the low/reverse piston with petroleum jelly.
    G08412054
  133. Position the low/reverse clutch piston on the special tools and push it down into the center support.
    G08412055
  134. Install the low/reverse piston return spring.
    G08412041
  135. Using the special tools and a press, compress the low/reverse clutch return spring and install the snap ring retainer and the snap ring.
    G08412040
  136. Inspect the snap ring to be sure it is seated in the groove on the center support.
    G08412058

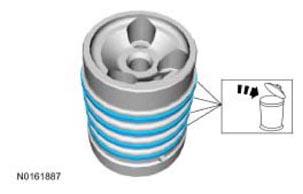

  137. Remove and discard the 4 Teflon® seals.
    G09689761
  138. Clean and inspect the clutch support tower for damage. Install a new clutch support tower if damaged.
    G08412060
  139. Install the special tool on the clutch support tower and adjust the special tool to align the bottom edge of the tool with the top edge of the bottom Teflon® seal groove.
    G08412061
  140. Install a new Teflon® seal on the special tool.
    G08412062
  141. Install the special tool 307-578/2 over 307-578/3. Using the special 307-578/2, slide the Teflon® seal over the clutch support tower and into the groove.
    G08412063
  142. Remove tools and repeat steps for the other 3 Teflon® seals.
    G08412064
  143. Install the special tool on the clutch support tower to size the 4 Teflon® seals.
    G08412065
  144. Remove the input shaft snap ring.
    G08412066
  145. Remove the input shaft.
    G08412067
  146. Remove the overdrive (4, 5, 6) clutch hub, No. 2 thrust bearing.
    G08412068
  147. Remove the overdrive (4, 5, 6) clutch hub, No. 2 thrust bearing.
    G08412069
  148. Remove the overdrive (4, 5, 6) clutch snap ring.
    G08412070
  149. Remove the overdrive (4, 5, 6) clutch pressure plate and clutch assembly.
    G08412071
  150. Inspect the clutch plate and pressure plate surfaces for damage or excessive wear.
    G08412072
  151. Install the special tools on the balance piston.
    G08412073
  152. Using the special tool and a press, compress the overdrive (4, 5, 6) clutch return spring and remove the snap ring.
    G08412074
  153. Remove and discard the balance piston.
    G08412075
  154. Remove the overdrive (4, 5, 6) piston return spring.
    G08412076
  155. Install the clutch support tower in the transaxle case and install the clutch support tower bolts.
    • Tighten to 12 Nm (106 lb-in).
      G08412077
  156. Remove the special tool.
    G08412078
  157. Install the No. 1 overdrive/direct clutch assembly thrust bearing.
    G09296702

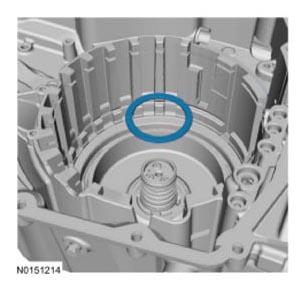

  158. Position the overdrive/direct clutch assembly in the transaxle case.
    G08412080
  159. Apply compressed air to the overdrive (4, 5, 6) clutch piston port and remove the overdrive (4, 5, 6) clutch piston.
    G08412081
  160. Remove the overdrive/direct clutch assembly from the transaxle case.
    G08412082
  161. Remove and discard the overdrive (4, 5, 6) clutch piston seal from the overdrive/direct clutch assembly.
    G08412083
  162. Remove and discard the seals from the overdrive (4, 5, 6) clutch piston.
    G08412084
  163. NOTE: Only compress the direct clutch piston return spring far enough to take the tension from the direct clutch cylinder off the snap ring. If the piston is compressed too far, the piston alignment tab may be broken off.

    Install the special tools on the direct (3, 5, R) clutch cylinder. Using a press, compress the direct (3, 5, R) clutch piston return spring, and remove the snap ring.

    1. Do not contact the overdrive/direct clutch hub and shaft assembly with the direct (3, 5, R) clutch cylinder.
    2. Remove the snap ring.
      G08412085
  164. Remove the direct (3, 5, R) clutch cylinder.
    G08412086
  165. Remove and discard the direct (3, 5, R) clutch piston.
    G08412087
  166. NOTE: Note the position of the return spring for assembly. The flat side faces down.

    Remove the direct (3, 5, R) clutch piston return spring.

    G08412088
  167. Remove the direct (3, 5, R) clutch snap ring.
    1. Slightly lift up on the clutch so that the snap ring floats freely.
    2. Compress the snap ring.
    3. Allow the clutch and pressure plate to drop so that the snap ring is out of the pressure plate groove.
    4. Remove the snap ring.
      G08412089
  168. Remove the direct (3, 5, R) clutch pressure plate, clutch pack and wave spring.
    G08412090
  169. Inspect the clutch plate and pressure plate surfaces for damage or excessive wear.
    G08412091
  170. Remove and discard the direct (3, 5, R) clutch piston seals.
    G08412092
  171. Clean and inspect the overdrive/direct clutch assembly for damage or excessive wear and install new components as necessary.
    G08412093
  172. Install new direct (3, 5, R) clutch piston seals and lubricate the seals with petroleum jelly.
    G08412094
  173. Install the direct (3, 5, R) clutch wave spring.
    G08412095
  174. Soak the direct (3, 5, R) clutch pack in transmission fluid.
    G08412096
  175. Install the direct (3, 5, R) clutch assembly and pressure plate.
    G08412090
  176. Install the direct (3, 5, R) clutch snap ring.
    1. Compress the snap ring.
    2. Lift the direct (3, 5, R) clutch so that the snap ring is in the groove of the pressure plate.
    3. Release the tension on the snap ring.
      G08412098
  177. NOTE: Install the direct (3, 5, R) clutch piston return spring with the flat side facing down.
    G08412099
  178. Lubricate a new direct (3, 5, R) clutch piston with petroleum jelly and install the piston.
    G08412100
  179. Install the direct (3, 5, R) clutch cylinder.
    G08412086
  180. NOTE: Only compress the direct clutch piston return spring far enough to take the tension from the direct clutch cylinder off the snap ring. If the piston is compressed too far, the piston alignment tab may be broken off.

    Install the special tools on the direct (3, 5, R) clutch cylinder. Using a press, compress the direct (3, 5, R) clutch piston return spring, and install the snap ring.

    1. Do not contact the overdrive/direct clutch hub and shaft assembly with the direct (3, 5, R) clutch cylinder.
    2. Install the snap ring.
      G08412085
  181. Install new seals on the overdrive (4, 5, 6) clutch piston and lubricate the seals with petroleum jelly.
    G08412103
  182. Install a new overdrive (4, 5, 6) clutch piston inner seal and lubricate the seal with petroleum jelly.
    G08412104
  183. Position the overdrive (4, 5, 6) clutch piston in place.
    G08412105
  184. Using the special tools, install the overdrive (4, 5, 6) clutch piston into the overdrive/direct clutch assembly by hand.
    G08412106
  185. NOTE: Holes face up on the overdrive (4, 5, 6) clutch piston return spring.

    Install the overdrive (4, 5, 6) clutch piston return spring.

    G08412107
  186. Lubricate the seals on a new balance piston and position the piston in place.
    G08412108
  187. Install the special tools on the balance piston.
    G08412109
  188. Using a press, compress the overdrive (4, 5, 6) clutch return spring and install the snap ring.
    G08412074
  189. Install the No. 2 thrust bearing.
    G08412111
  190. Install the overdrive (4, 5, 6) clutch hub.
    G08412112
  191. Soak the overdrive (4, 5, 6) clutch pack in transmission fluid.
    G08412113
  192. Install the overdrive (4, 5, 6) clutch pack.
    G08412114
  193. Install the overdrive (4, 5, 6) clutch pressure plate.
    G08412115
  194. Install the overdrive (4, 5, 6) clutch snap ring.
    G08412116
  195. Install the input shaft.
    G08412067
  196. While holding the input shaft in place, install the snap ring.
    G08412066
  197. Position the overdrive/direct clutch assembly in the transaxle case, install the special tool or a dial indicator and position the plunger on the overdrive (4, 5, 6) clutch pressure plate.
    G08412119
  198. NOTE: The dial indicator plunger is positioned on the overdrive (4, 5, 6) clutch pressure plate.

    Apply 483 kPa (70 psi) of air pressure to the overdrive (4, 5, 6) clutch piston port while recording the clutch pack clearance on the Dial Indicator. The clearance should be between 0.950 mm (0.037 in) and 1.778 mm (0.07 in). If the clearance is out of range, check the overdrive (4, 5, 6) clutch pack for correct installation. If the overdrive (4, 5, 6) clutch pack is correctly installed, install a new overdrive (4, 5, 6) clutch pack.

    G08412120
  199. Position the plunger on one of the top direct (3, 5, R) clutch plate tabs. Apply 483 kPa (70 psi) of air pressure to the direct (3, 5, R) clutch piston port while recording the clutch pack clearance on Dial Indicator. The clearance should be between 0.412 mm (0.016 in) and 1.728 mm (0.068 in). If the clearance is out of range, check the direct (3, 5, R) clutch pack for correct installation. If the direct (3, 5, R) clutch pack is correctly installed, install a new direct (3, 5, R) clutch pack.
    G08412121
  200. Remove the special tool, overdrive/direct clutch assembly and the No. 1 overdrive/direct clutch assembly thrust bearing.
    G08412122
  201. Assemble the special tools. Install a new LH  halfshaft seal on the special tool.
    G08412123
  202. Using the special tools, install the new LH  halfshaft seal in the transaxle case.
    G08412124
  203. Install a new manual control shaft seal on the special tool.
    G08412125
  204. Using the special tool, install the new manual control shaft seal in the transaxle case.
    G08412126
  205. Install the special tool.
    G08412127
  206. Lubricate the seals on the intermediate (2, 6) clutch piston with transmission fluid.
    G08412128
  207. NOTE: Be sure the bleed hole is aligned in the correct position as noted during disassembly or damage to the transaxle can occur.

    Install the intermediate (2, 6) clutch piston on the seal protector with the bleed hole aligned at the top of the transaxle case.

    G08412129
  208. Position the clutch piston return spring on the piston to align the piston before pushing it in its bore. The tabs of the return spring should fit into the indentions of the piston and the 2 outer tabs should be at the clockwise most position of the open area at the bottom of the transaxle case. The bleed hole on the piston should be aligned between the inner double tabs of the return spring.
    1. Inner double tabs
    2. Bleed hole
    3. Outer tabs
      G08412130
  209. Remove the intermediate (2, 6) clutch piston return spring.
    G08412131
  210. Install the special tool on the intermediate (2, 6) clutch piston. Push the intermediate (2, 6) clutch piston into the clutch cylinder by hand.
    G08412132
  211. NOTE: Be sure the return spring is positioned correctly with the forward clutch bleed hole aligned between the inner double tabs and the outer tab in the clockwise most position of the slot at the bottom of the case or damage to the transaxle can occur.

    The tabs of the return spring should fit into the indentions of the piston and the 2 outer tabs should be at the clockwise most position of the slot at the bottom of the case. The bleed hole on the piston should be aligned between the inner double tabs of the return spring.

    1. Inner double tabs
    2. Bleed hole
    3. Outer tabs
      G08412133
  212. NOTE: Be sure the snap ring is aligned with the gap facing the front of the transaxle or damage to the transaxle can occur. The front of the transaxle is where the low/reverse and forward (1, 2, 3, 4) clutch hydraulic ports are located.

    Align the gap of the snap ring to face the front of the transaxle.

    1. Snap ring
    2. Snap ring gap
    3. Low/reverse and forward (1, 2, 3, 4) clutch hydraulic ports (located at the front of the transaxle case)
      G08412134
  213. Install the special tool on the transaxle case to center the intermediate (2, 6) clutch return spring.
    G08412135
  214. Install the special tool on the snap ring.
    G08412136
  215. Install the special tool on the transaxle case.
    G08412137
  216. NOTE: Be sure the return spring is centered or it can bind on the snap ring groove and cause damage to the transaxle case.

    Using the special tools, install the intermediate (2, 6) clutch snap ring in the groove.

    G09088294
  217. Install the intermediate (2, 6) clutch apply ring. Tap the ring in place.
    G08412139

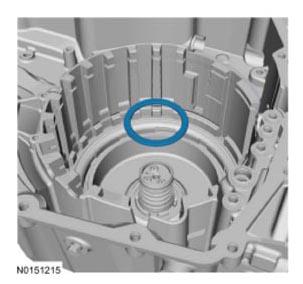

  218. NOTE: Be sure to install the No. 1 thrust bearing with the flat side facing up or damage to the transaxle can occur.

    Install the No. 1 thrust bearing with the flat side facing up.

    G09296763
  219. Install the overdrive/direct clutch assembly.
    G08411991
  220. NOTE: Be sure to install the No. 3 thrust bearing with the flat side facing down or damage to the transaxle can occur.

    Install the No. 3 thrust bearing with the flat side facing down.

    G09296614
  221. Install the direct/intermediate clutch hub and rear sun gear assembly.
    G08412143
  222. Install the intermediate (2, 6) wave spring assembly.
    G08412144
  223. Soak the intermediate (2, 6) clutch assembly in transmission fluid.
    G08412145

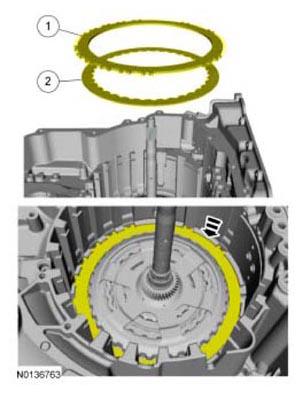

  224. Install the intermediate (2, 6) clutch assembly, temporarily reversing the top friction and steel plates for the clutch stack-up measurement.
    1. Steel plate
    2. Friction plate
      G09709076
  225. Install the special tool on the transaxle case.
    G08412147
  226. Using a depth gauge, measure and record as measurement A, the distance from the special tool to the top of the intermediate (2, 6) clutch pack at 3 different points and average the 3 distances.
    G08412148
  227. Using a depth gauge, measure and record as measurement B, the distance from the top of the special tool to the transaxle case step above the intermediate (2, 6) clutch.
    G08412149
  228. Subtract measurement B from measurement A The clearance should be between 0.240 mm (0.009 in) and 2.60 mm (0.102 in). If the clearance is out of range, check the intermediate (2, 6) clutch pack for correct installation. If the intermediate (2, 6) clutch pack is correctly installed, install a new clutch pack.
    Description Reading
    Measurement A
    Measurement B
    Subtract measurement B from measurement A and check to see if it is within range of 0.240 mm (0.009 in) and 2.60 mm (0.102 in)
  229. NOTE: When the intermediate (2, 6) clutch is correctly installed, a friction plate is on top.

    Remove the top intermediate (2, 6) clutch friction and steel plate and correctly install the plates back in the transaxle case.

    1. Friction plate
    2. Steel plate
      G08412150
  230. Install the OWC  assembly.
    G08411982
  231. Install the rear planetary carrier/center ring gear assembly.
    G08412152
  232. NOTE: Note the position of the pressure plate. When installing the center support, the long support legs must fit through the pressure plate and rest on the OWC  .

    Position the low/reverse pressure plate so that the center support legs fit through the pressure plate and rest on the OWC  and install the low/reverse pressure plate.

    G08412153
  233. Soak the low/reverse clutch in transmission fluid.
    G08412154
  234. Align the low/reverse clutch pack with the pressure plate and install it in the transaxle case temporarily reversing the wave spring and top steel plate.
    1. Steel plate.
    2. Wave spring.
      G08412155
  235. Install the special tool on the side of the center support with the long support legs.
    G08412156
  236. Using a depth gauge, measure and record as measurement A, the distance from the top of the special tool to the contact surface of the low/reverse clutch piston.
    G08412157
  237. Using a depth gauge, measure and record as measurement B, the distance from the top of the special tool to the leg surface of the center support.
    G08412158
  238. Subtract measurement B from measurement A and record as measurement C.
    Description Reading
    Measurement A
    Measurement B
    Subtract measurement B from measurement A and record as measurement C.
  239. Install the special tool on the transaxle case.
    G08412159
  240. Using a depth micrometer, measure and record as measurement D, the distance from the special tool to the top of the OWC  .
    G08412160
  241. Using a depth gauge, measure and record as measurement E, the distance from the top of special tool to the top of the low/reverse clutch at 3 different points and average the 3 distances.
    G08412161
  242. Subtract measurement E from measurement D and record as measurement F.
    Description Reading
    Measurement D
    Measurement E
    Subtract measurement E from measurement D and record as measurement F
  243. Subtract measurement F from measurement C to get the low/reverse clutch clearance. The clearance should be between 0.406 mm (0.015 in) and 2.000 mm (0.078 in). If the clearance is out of range, check the low/reverse clutch pack for correct installation. If the low/reverse clutch pack is correctly installed, install a new clutch pack.
    Description Reading
    Measurement C
    Measurement F
    Subtract measurement F from measurement C and check to see if it is within range of 0.406 mm (0.015 in) and 2.000 mm (0.078 in)
  244. NOTE: When the low/reverse clutch is correctly installed, the wave spring is on top.

    Remove the top low/reverse clutch steel plate and wave spring and correctly install the plates back in the transaxle case.

    1. Wave spring
    2. Steel plate
      G08412162
  245. NOTE: Be sure the center support is installed with the long support legs facing down and the feed holes facing the front of the transaxle.

    Install the center support with the long legs facing down and the feed holes aligned with the feed holes in the transaxle case.

    1. Long center support legs face down
    2. Feed holes face the front of the transaxle case.
      G08412163
    1. Install the No. 5 thrust bearing
    2. Install the No. 6 thrust bearing
      G09296600
  247. Install the center planetary sun gear.
    G08411974
  248. Install the center carrier/front ring gear assembly.
    G08411972
    1. Install the No. 7 thrust bearing
    2. Install the No. 8 thrust bearing
      G09296595
  250. Install the front planetary/rear ring gear assembly.
    G08411969
  251. Install the forward (1, 2, 3, 4) clutch wave spring.
    G08412169
  252. Soak the forward (1, 2, 3, 4) clutch pack in transmission fluid.
    G08412170
  253. Install the forward (1, 2, 3, 4) clutch pack.
    G08412171
  254. Install the forward (1, 2, 3, 4) clutch pressure plate.
    G08412172
  255. NOTE: Be sure to install the forward (1, 2, 3, 4) clutch beveled snap ring with the flat side facing down or the snap ring can come loose, causing damage to the transaxle.

    Install the forward (1, 2, 3, 4) clutch beveled snap ring with the flat side down with the gap facing the front of the transaxle.

    G08412173
  256. Seat the snap ring in the snap ring groove.
    G08412174
  257. Install the special tool or a dial indicator on the transaxle case and position the plunger on the top forward (1, 2, 3, 4) clutch friction plate.
    G08412175
  258. Install the new low/reverse and forward (1, 2, 3, 4) clutch main control-to-transaxle case seals.
    G08412176
  259. Apply 483 kPa (70 psi) of air pressure to the forward (1, 2, 3, 4) clutch piston port while recording the clutch pack clearance on the dial indicator. The clearance should be between 0.076 mm (0.002in) and 1.840 mm (0.072 in). If the clearance is out of range, check the forward (1, 2, 3, 4) clutch pack for correct installation and the transaxle for correct assembly. If the forward (1, 2, 3, 4) clutch pack is correctly installed, install a new forward (1, 2, 3, 4) clutch pack.
    G08412177
  260. Install the front planetary sun gear and shell assembly.
    G08412178
  261. Install the park pawl.
    G08412180
  262. Install the park pawl pin and spring.
    G08412181
  263. Install the park pawl actuator rod in the TR  sensor. Position the park pawl aside and position the park pawl actuator rod and the TR  sensor in the transaxle case.
    G08412182
  264. Install the manual control shaft and align the manual control shaft pin holes.
    G08412183
  265. Install the manual control shaft pin.
    G08412184
  266. NOTE: Make sure to hold the manual control lever while tightening the manual control lever nut or damage to the manual control lever and park components will occur.

    Install the manual control lever and the manual control lever nut.

    • Tighten to 24 Nm (18 lb-ft).
      G08411999
  267. Install the 5 new clutch feed seals.
    G08412186
  268. Position the transmission fluid baffle in place and install the transmission fluid baffle bolts.
    • Tighten to 12 Nm (106 lb-in).
      G09296585

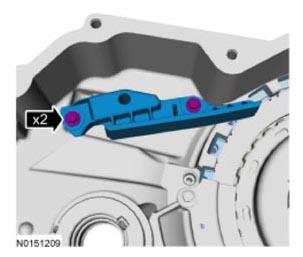

  269. Position the fluid reservoir in place and install the fluid reservoir bolts.
    • Tighten to 12 Nm (106 lb-in).
      G09296584
    1. Install the No. 12 thrust bearing
    2. Install the No. 10 thrust bearing
      G09296583

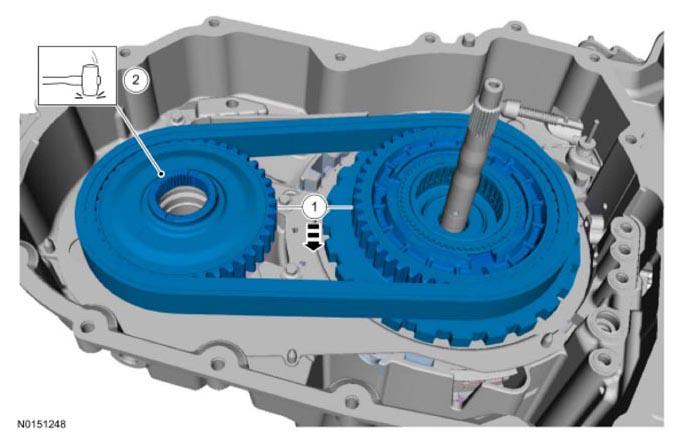

    1. Simultaneously install the drive/driven sprocket and chain assembly.
    2. Lightly tap on the driven sprocket to be sure it is fully seated in the case.
      G09296812

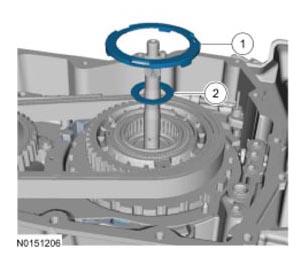

    1. Install the No. 13 thrust washer
    2. Install the No. 11 thrust bearing
      G09296573
  273. Install the differential transmission fluid baffle.
    G09296572
  274. Install the differential sun gear.
    G09296570
  275. Install the differential assembly.
    G09296568

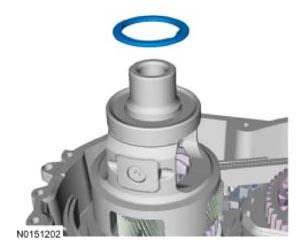

  276. Install the No. 15 thrust bearing.
    G09296817
  277. Install the special tool on the input shaft.
    G08412196
  278. FWD  Vehicles.

    Assemble the special tools and install a new RH  halfshaft seal on the special tool.

    G09087841
  279. FWD  Vehicles.

    Using the special tools, install the new RH  halfshaft seal.

    G09088354
  280. AWD  Vehicles.

    Assemble the special tools and install a new RH  halfshaft seal on the special tool.

    G09088355
  281. AWD  Vehicles.

    Using the special tools, install the new RH  halfshaft seal.

    G09088356
  282. Install the pump and filter assembly in the torque converter housing and install the pump-to-torque converter housing bolts.
    • Tighten to 35 Nm (26 lb-ft).
      G08412007

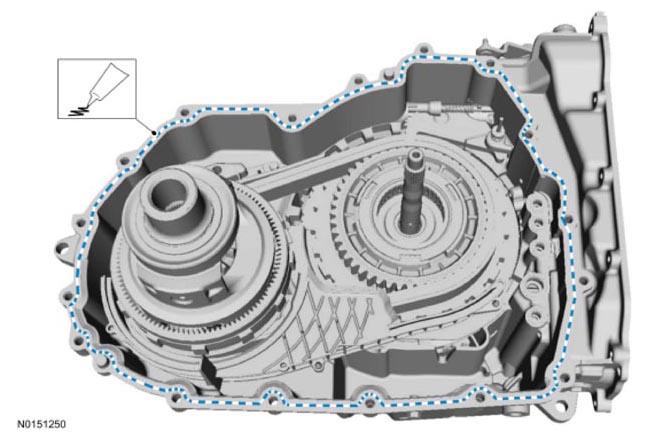

  283. NOTE: Be sure the sealing surfaces of the torque converter housing and the transaxle housing are free of oil before applying silicone.

    Apply a bead of the Ultra Silicone Sealant.

    G09296824
  284. Install the torque converter housing on the transaxle case.
    G08411941
  285. NOTE: Be sure the torque converter housing stud bolt is in the correct location as noted during disassembly.

    Install the torque converter housing bolts and the torque converter housing stud bolt.

    • Tighten to 24 Nm (18 lb-ft).
      G08411939
  286. Remove the special tool.
    G08412206
  287. Install the TSS  sensor and the TSS  sensor bolt.
    • Tighten to 10 Nm (89 lb-in).
      G08411936
  288. Install the OSS  sensor and the OSS  sensor bolt.
    • Tighten to 10 Nm (89 lb-in).
      G08411938
  289. Install the new main control-to-transaxle case separator plate and align it on the stud and the guide pin.
    G08411687
  290. NOTE: Be sure that the manual pin (part of the TR  sensor) is correctly installed in the manual valve.

    Position the main control assembly in place and align the manual valve on the TR  sensor.

    G08411688
  291. Install the main control nut hand-tight.
    G08411689
  292. Install the short main control-to-transaxle case bolts hand-tight.
    G08411690
  293. Install the long main control-to-transaxle case bolts hand-tight.
    G08411691
  294. Tighten the main control-to-transaxle case bolts and the main control nut in a crisscross pattern.
    • Tighten to 10 Nm (89 lb-in).
      G08411692
  295. Position the TR  sensor detent spring in place with the alignment tab in the alignment hole and install the TR  sensor detent spring bolt.
    • Tighten to 13 Nm (115 lb-in).
      G08412215
  296. NOTE: Be sure the main control-to-cover seal is installed with the holes facing up.

    Install the main control-to-cover seal.

    G08411693
  297. Connect the TR  sensor electrical connector.
    G08411930
  298. Connect the OSS  sensor electrical connector.
    G08411929
  299. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.

    Make sure that the mating faces are clean and free of foreign material. Refer to RTV Sealing Surface Cleaning and Preparation in ENGINE SYSTEM - GENERAL INFORMATION .

    G08412219
  300. NOTE: Be sure the sealing surface is free of oil before applying silicone.

    Apply a bead of the Ultra Silicone Sealant.

    G08412220
  301. NOTE: Install the main control cover stud bolts in the correct location as noted during disassembly.

    Install the main control cover and the main control cover bolts and stud bolts.

    • Tighten to 12 Nm (106 lb-in).
      G08411928
  302. NOTE: The torque converter is heavy. Be careful not to drop it or damage will result.

    Using the special tools, install the torque converter.

    G08412222
  303. Install the special tool.
    G08412223
  304. Remove the transaxle from the bench-mounted holding fixture.
    G08411923
  305. Remove the special tool.
    G08411922
scientia non olet · About LEMON Manuals
