Automatic Transmission - 6F35
>>
Description And Operation
>>
Hydraulic System
>>
Component Description
>>
Main Control Components

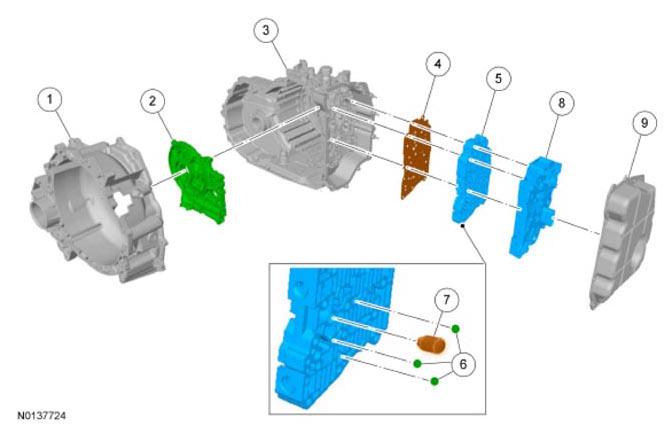

Main Control Components
Item
Description
1
Torque converter housing
2
Pump assembly
3
Transmission case
4
Main control-to-transmission case separator plate
5
Valve body
6
Check balls
7
Solenoid damper (
SSA
)
8
Solenoid body assembly
9
Main control cover
