LH Ignition Components

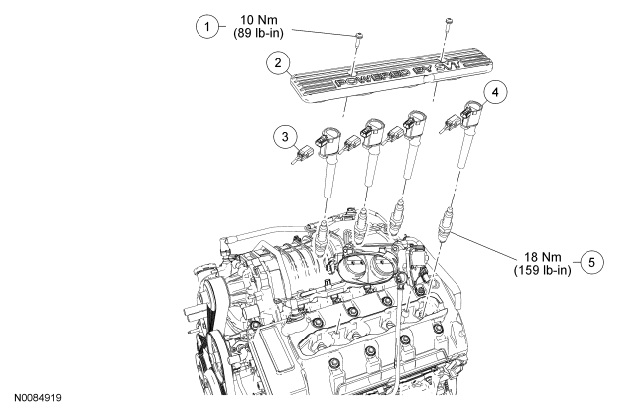

Fig 1: LH Ignition Replacement Components With Torque Specifications
G06382408Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W701621 Ignition coil-on-plug cover bolt (2 required)
2 6P067 Ignition coil-on-plug cover
3 14A464 Ignition coil-on-plug electrical connector (part of 12B637) (4 required)
4 12A366 Ignition coil-on-plug (4 required)
5 12405 Spark plug (4 required)
