Output Shaft Seal: Notes

SPECIAL TOOL DESCRIPTION

	Installer, Output Seal (4X2) 307-715
	Installer, Spindle/Axle Shaft 205-199 (T83T-3132-A1)
	Installer, 6R80 Rear Seal 4X2 307-638
	Remover, Input Shaft Oil Seal 308-375
	Slide Hammer 100-001 (T50T-100-A)

NOTE: Early build shown in illustration below, late build similar.

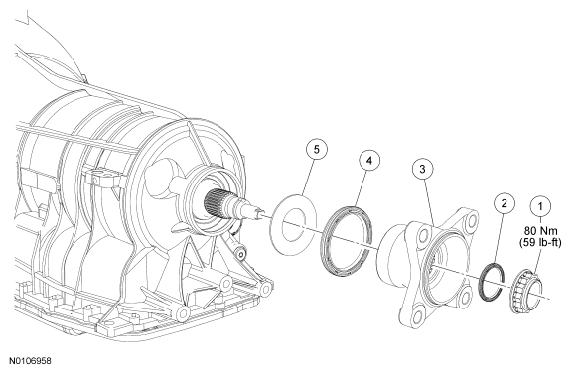

Fig 1: Output Shaft Seal Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7045	Output shaft flange nut
2	7052	Extension housing flange seal
3	7089	Output shaft flange
4	7052	Output shaft seal
5	7N357	Slip plane washer
