Module Communications Network: Convertible

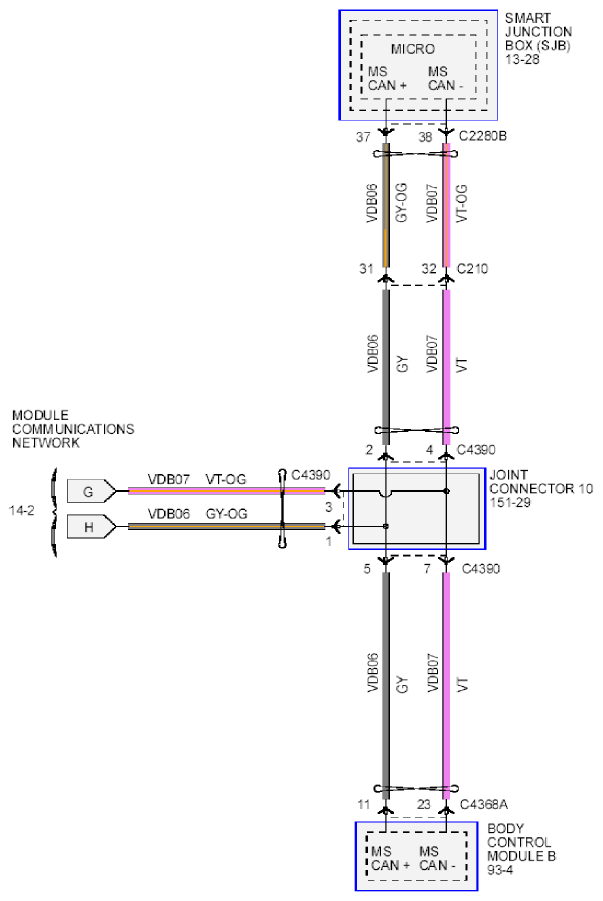

Fig 1: Module Communications Network - Wiring Diagram (Convertible) (1 Of 2)
G09283136Courtesy of FORD MOTOR CO.

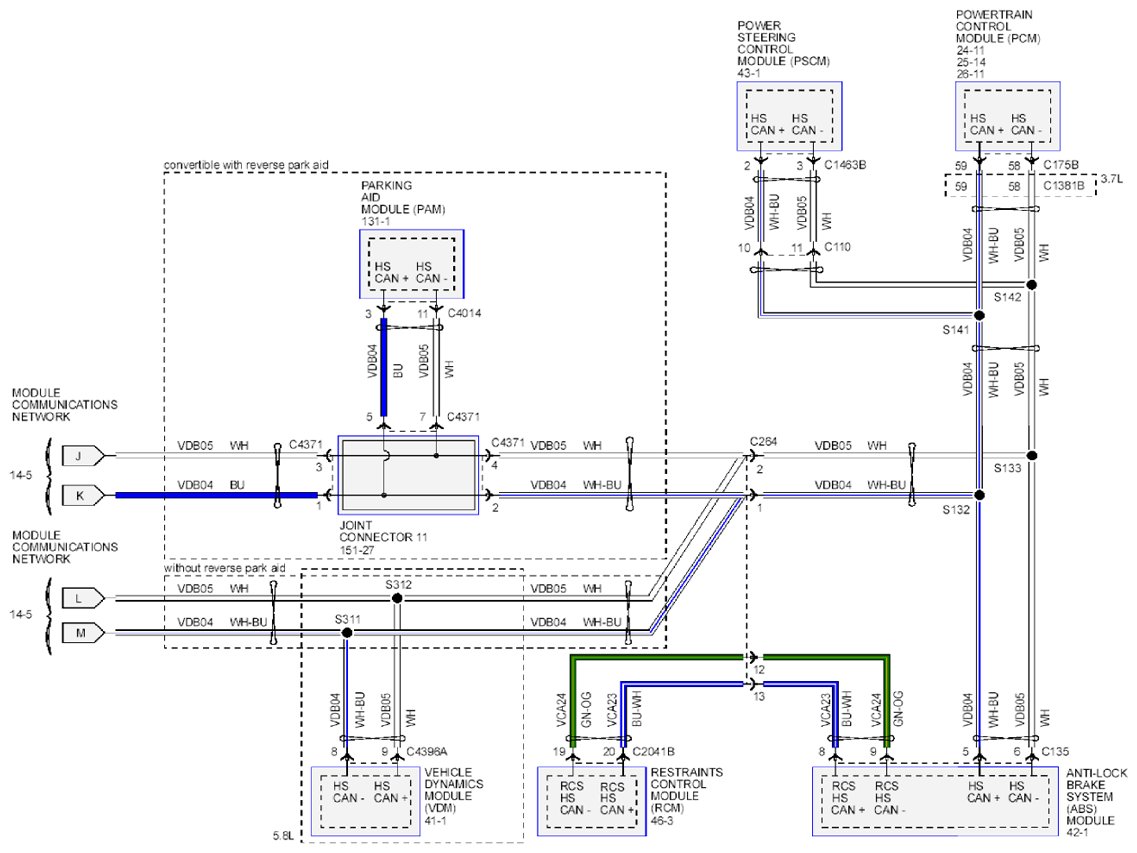

Fig 2: Module Communications Network - Wiring Diagram (Convertible) (2 Of 2)
G09283140Courtesy of FORD MOTOR CO.
