OEM Ground Distribution: Grounds: Convertible

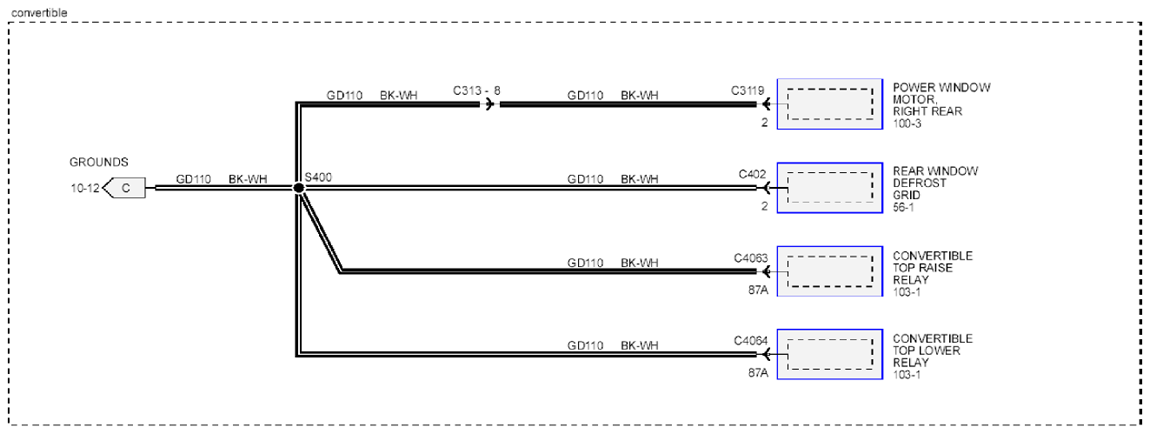

Fig 1: Grounds - Wiring Diagram (Convertible)

G09283098

Courtesy of FORD MOTOR CO.
