OEM Ground Distribution: Grounds: G402

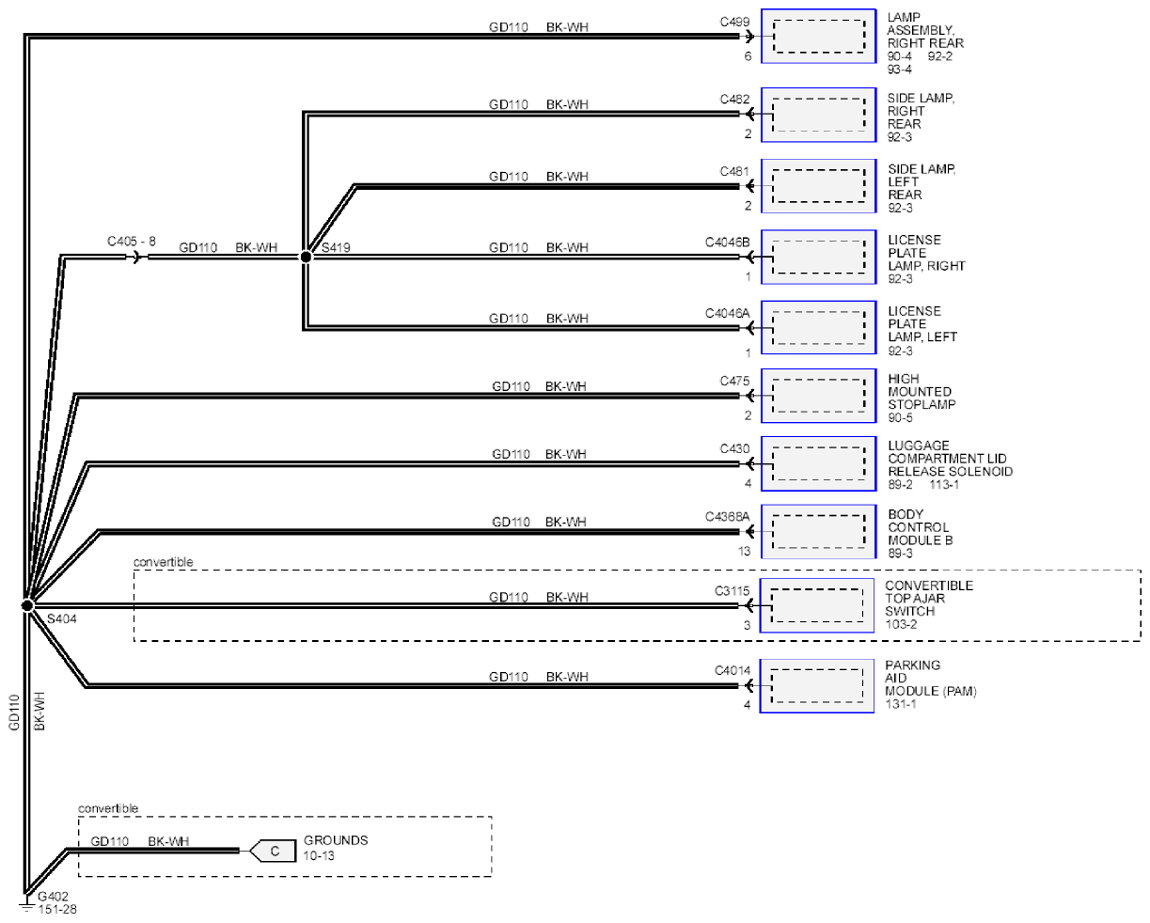

Fig 1: Grounds - Wiring Diagram (G402)

G09283097

Courtesy of FORD MOTOR CO.
