OEM Ground Distribution: Grounds: G205

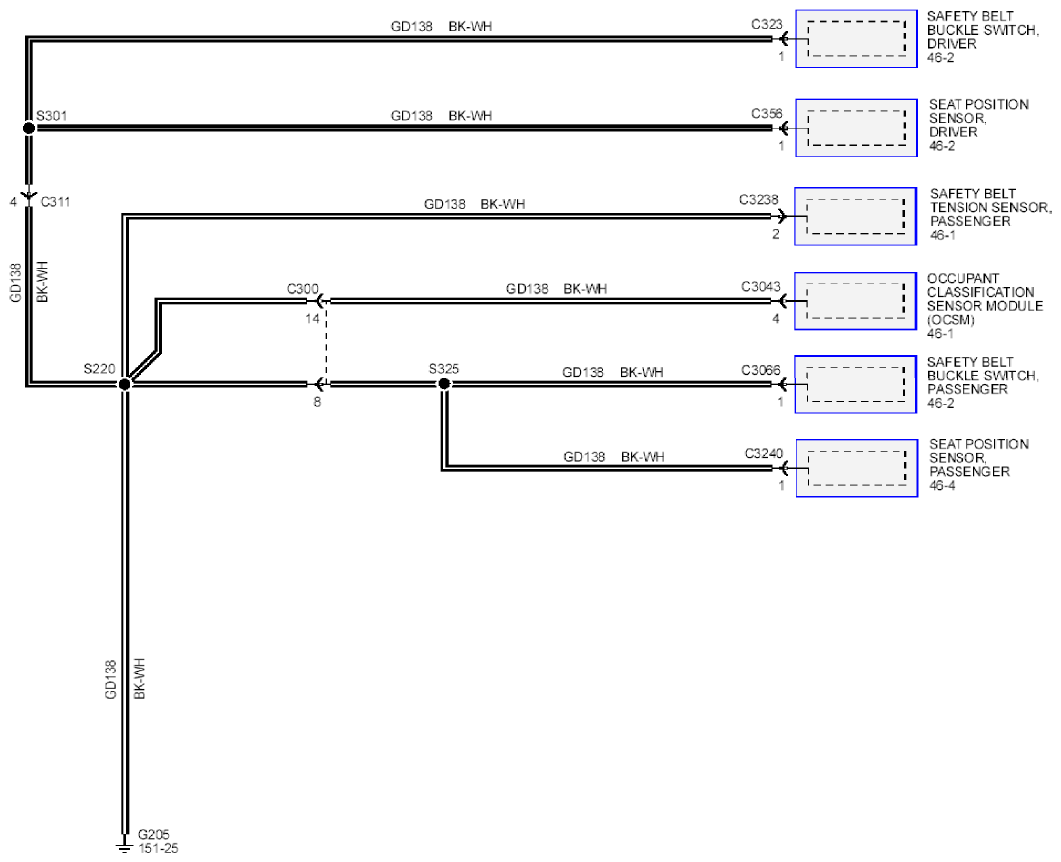

Fig 1: Grounds - Wiring Diagram (G205)

G09283095

Courtesy of FORD MOTOR CO.
