OEM Ground Distribution: Grounds: G100

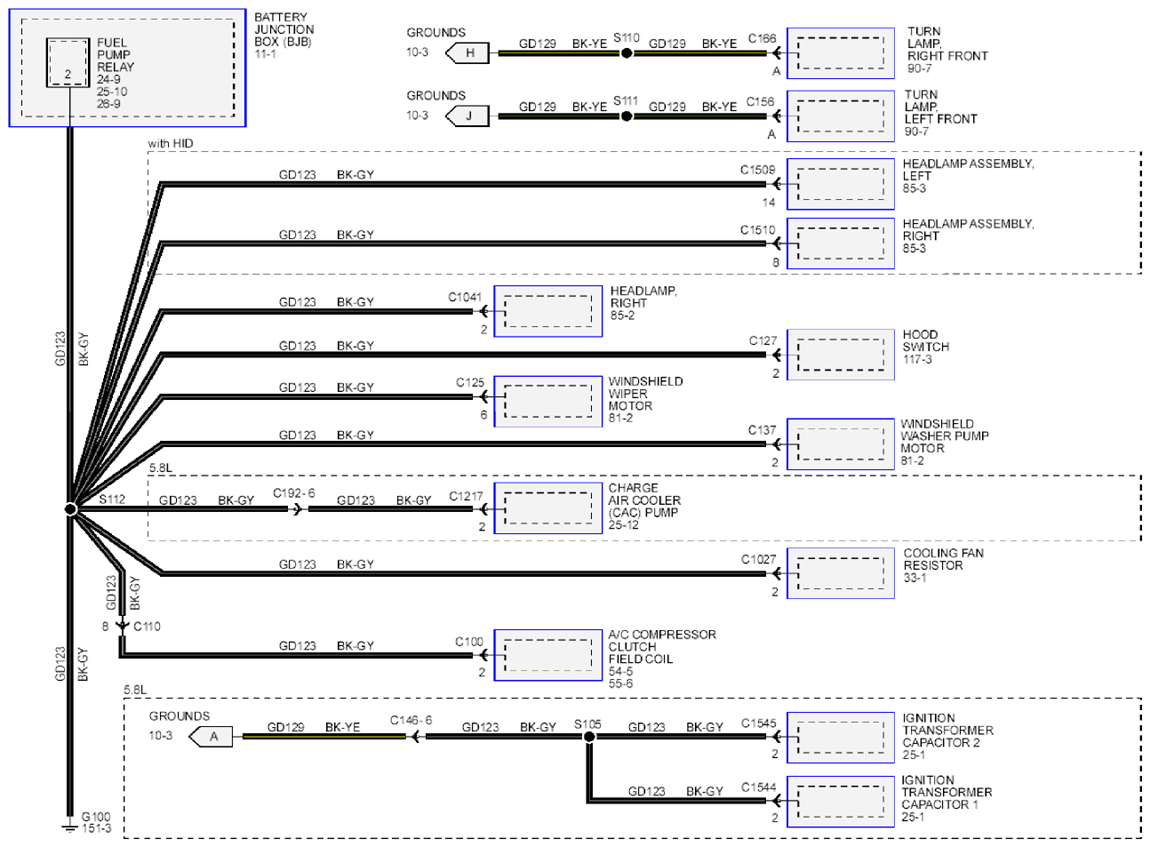

Fig 1: Grounds - Wiring Diagram (G100)

G09283087

Courtesy of FORD MOTOR CO.
