Electrical Short Within The Harness

Splice tape removed

1 = Intermittent short

Splice covered

2 = Wire strand

3 = Splice tape

4 = Harness tape

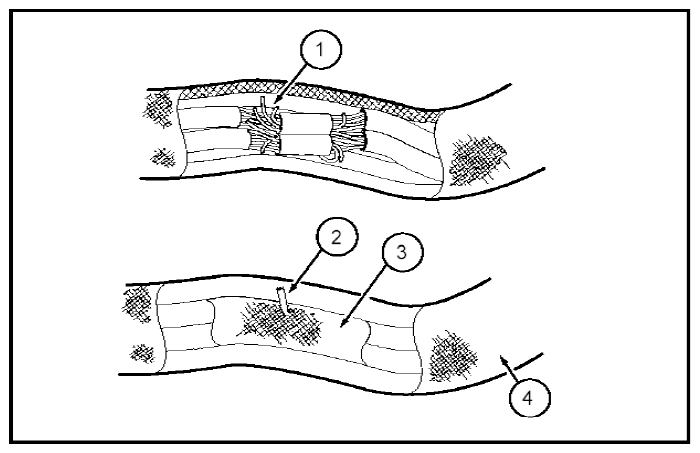

Fig 1: Identifying Electrical Short Within Harness
G09283071Courtesy of FORD MOTOR CO.
